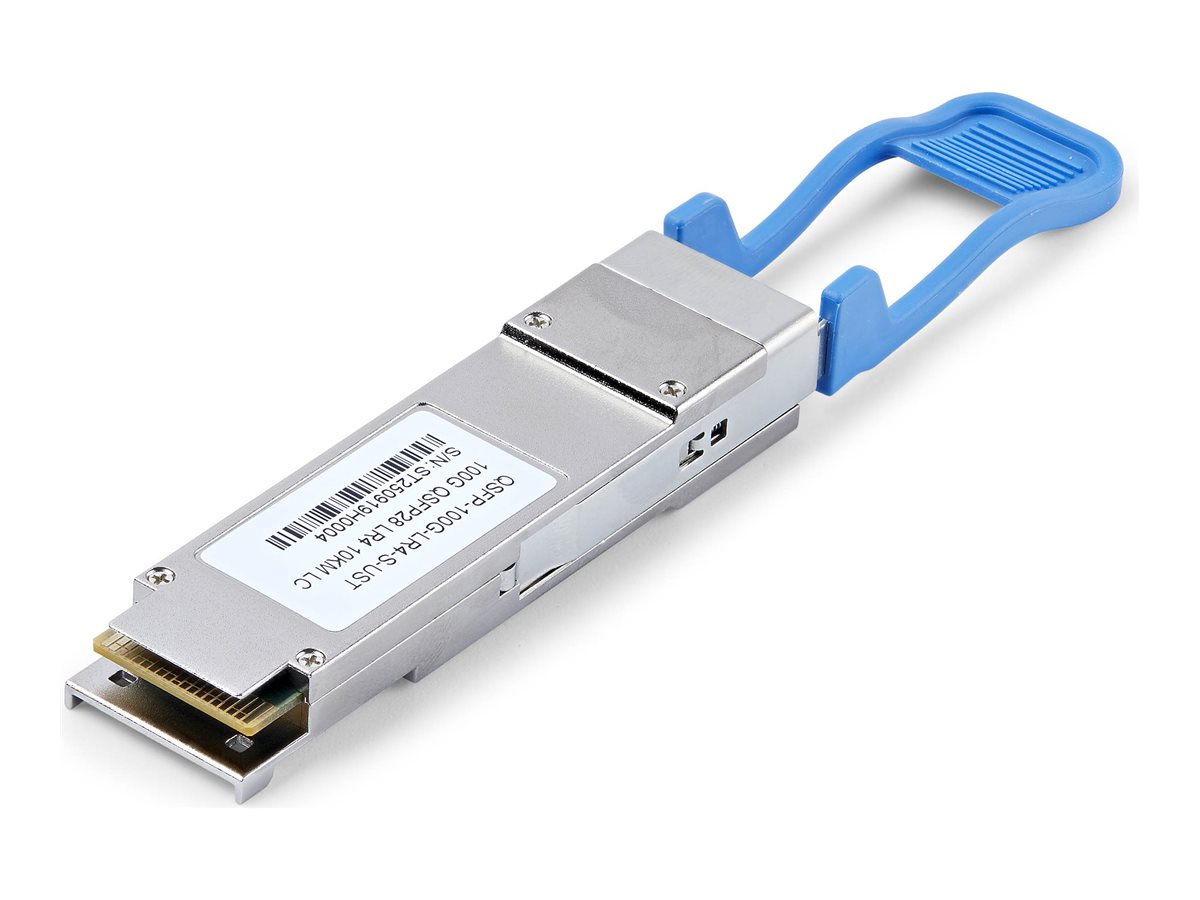

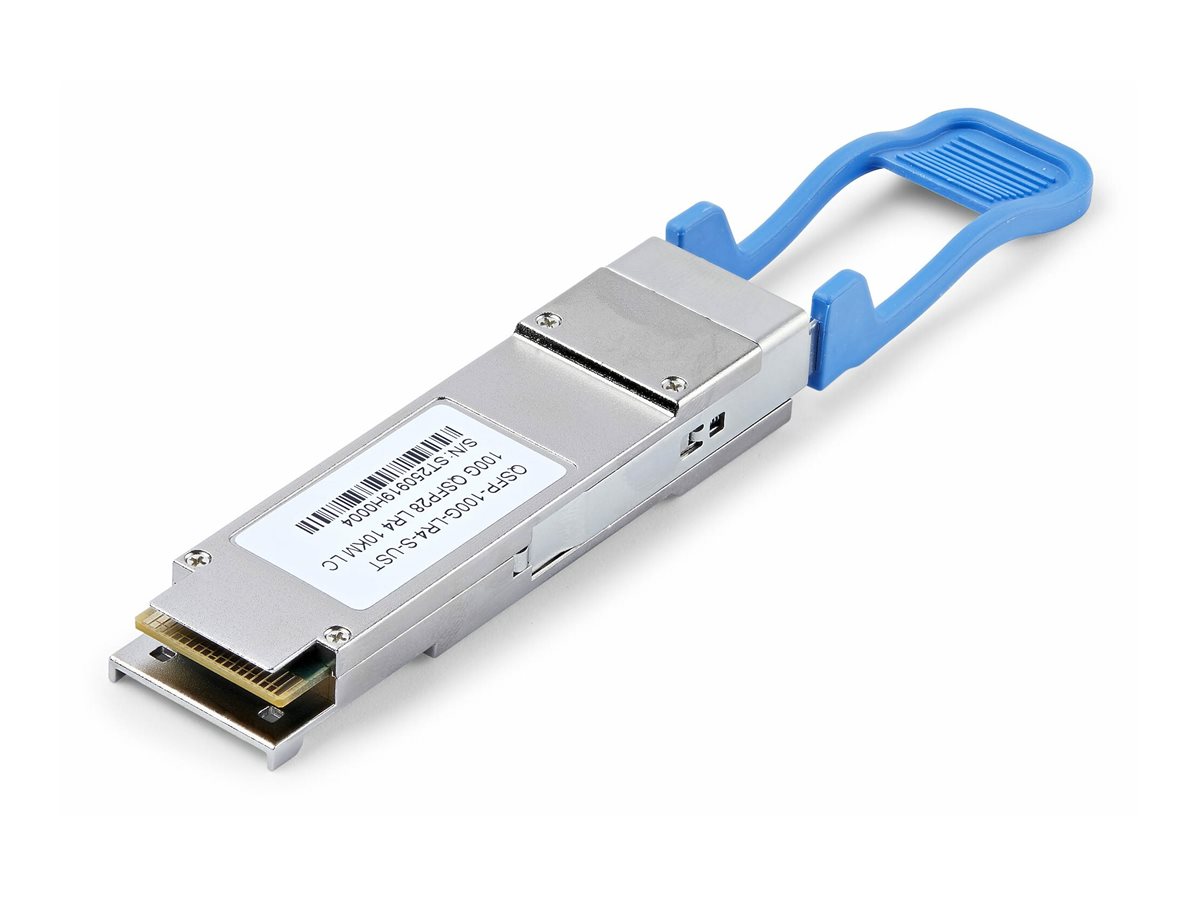

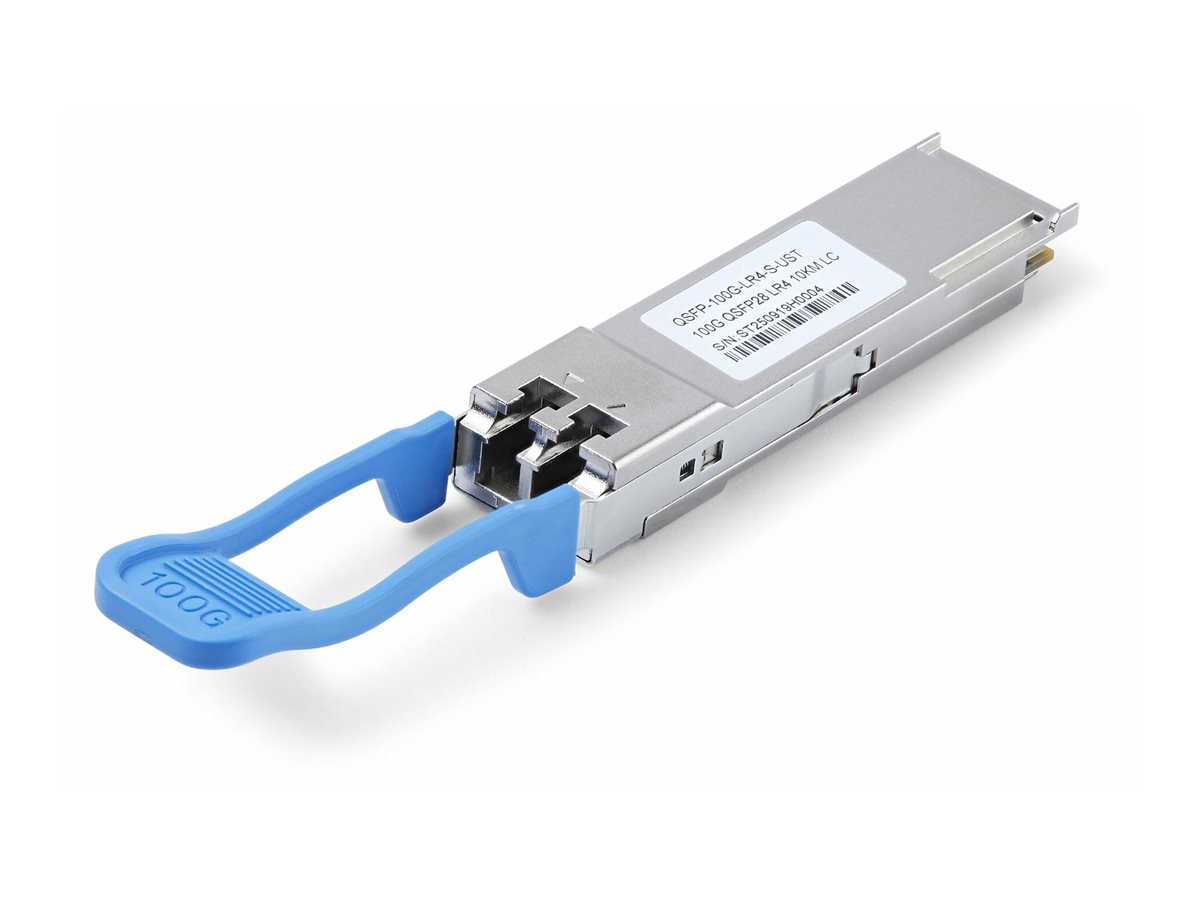

Startech - QSFP transceiver module (equivalent to: MSA Generic QXP29B4-10D)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Startech - QSFP transceiver module (equivalent to: MSA Generic QXP29B4-10D)
- 100GbE
- 100GBase-LR4
- LC single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | QSFP-100G-LR4-S-UST |
| SHI Part #: | 51890005 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Startech - QSFP transceiver module (equivalent to: MSA Generic QXP29B4-10D) - 100GbE - 100GBase-LR4 - LC single-mode - up to 10 km - 1310 nm |
| Manufacturer | StarTech.com |
| MSRP | $1,398.99 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.78 cm |
| Dimensions & Weight / Height | 1.26 cm |
| Dimensions & Weight / Width | 1.84 cm |
| Header / Brand | Startech |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 100 Gigabit Ethernet |
| Networking / Data Transfer Rate | 100 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year limited warranty |
| Dimensions & Weight | |
| Depth | 11.78 cm |
| Height | 1.26 cm |
| Width | 1.84 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-LR4 - LC single-mode |
| General | |
| Device Type | QSFP transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | MSA |
| MTBF | 3,083,849 hours |
| OEM Manufacturer Equivalent Part Number | MSA Generic QXP29B4-10D |
| Networking | |
| Cabling Type | 100GBase-LR4 |
| Compliant Standards | IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 100 Gbps |
| Features | Full duplex mode, Digital Diagnostics Monitoring (DDM), hot swappable |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Power | |
| Power Consumption Operational | 4.5 watt |
