Hardware Networking and Security Network Security
Add to My Favorites
Network Security

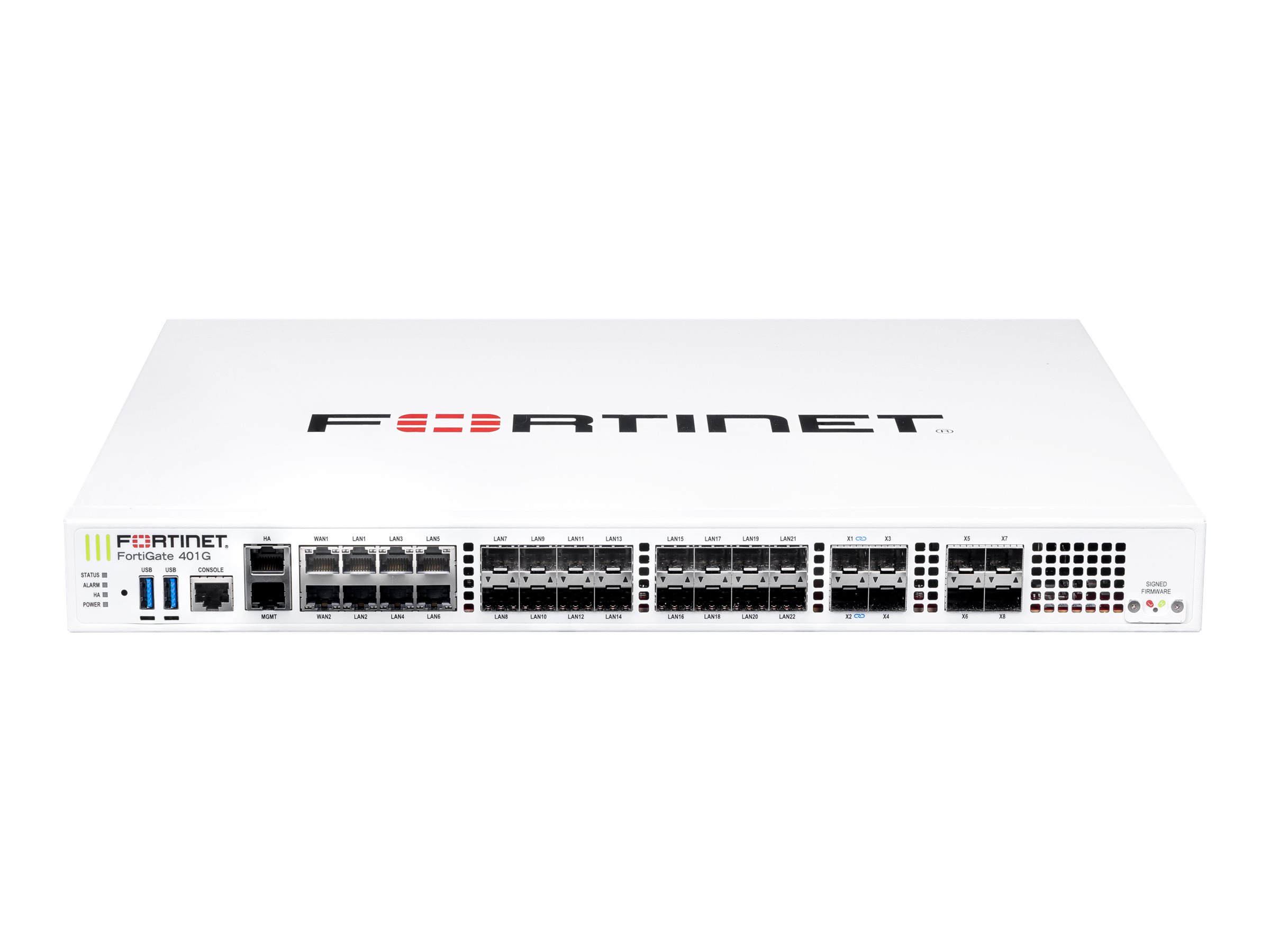

Fortinet FortiGate 401G

MSRP$26,450.00
$20,442.00
Fortinet FortiGate 401G
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Security appliance
  • 2.5GbE, 5GbE, 10GbE, 25GbE
  • front and side to back
  • 1U
  • rack-mountable
Fortinet FortiGate 401G
  • Security appliance
  • 2.5GbE, 5GbE, 10GbE, 25GbE
  • front and side to back
  • 1U
  • rack-mountable
  Additional Details
Price: $20,442.00
MSRP: $26,450.00
Mfr Part #: FG-401G
SHI Part #: 51747746
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Fortinet
Product Type: Hardware
General Information
CategoryFirewall appliances
DescriptionFortinet FortiGate 401G - Security appliance - 2.5GbE, 5GbE, 10GbE, 25GbE - front and side to back - 1U - rack-mountable
ManufacturerFortinet
MSRP$26,450.00
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth34.2 cm
Dimensions & Weight / Height4.445 cm
Dimensions & Weight / Weight3.5 kg
Dimensions & Weight / Width43.2 cm
Header / BrandFortinet
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 25 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • Gigabit Ethernet
Networking / Form FactorRack-mountable
Networking / TypeSecurity appliance
Packaged Quantity1
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28
  • 4 x 10 Gigabit Ethernet - SFP/SFP+
  • 16 x 1000Base-X - SFP
  • 8 x 5GBase-T - RJ-45
  • 1 x 2.5 GBase-T - RJ-45
  • 1 x 1000Base-T (management) - RJ-45
  • 2 x USB - Type A
  • 1 x console
General
Built-in Devices5 x fans
Depth34.2 cm
Device TypeSecurity appliance
Height4.445 cm
Height (Rack Units)1U
Weight3.5 kg
Width43.2 cm
Miscellaneous
Cables Included
  • 1 x network cable
  • 1 x console cable
Compliant StandardsFCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6, IPv6
Included Accessories2 SX SFP transceivers, 2 mounting brackets, 2 power cords, 4 rubber feet, 8 mounting screws
Networking
Airflow DirectionFront and side to back
Capacity
  • Concurrent TCP sessions: 28000000
  • New TCP sessions per second: 580000
  • Firewall policies: 10000
  • Gateway to gateway IPSec VPN Tunnels: 2000
  • Client to gateway IPSec VPN tunnels: 50000
  • Concurrent SSL VPN users: 5000
  • SSL inspection CPS: 9700
  • SSL inspection concurrent sessions: 3000000
  • Virtual domains: 10
  • Maximum virtual domains: 25
  • Number of FortiSwitches: 96
  • Number of FortiAP devices: 512
  • Number of FortiAP devices (tunnel): 256
  • Number of FortiToken devices: 5000
Connectivity TechnologyWired
Data Link ProtocolGigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Encryption AlgorithmTLS 1.3, SSL, 256-bit AES, 256-bit SHA
FeaturesTrusted Platform Module (TPM), Zero Trust Network Access (ZTNA), SSL inspection, VPN support, SD-WAN support, CAPWAP support, signed firmware, firewall protection, FortiSentry module, AI/ML powered, High Availability
Form FactorRack-mountable
Network / Transport ProtocolIPSec, IPv4, IPv6, HTTP, HTTPs, TCP/IP, UDP/IP
Performance
  • IPS throughput (enterprise traffic mix): 25 Gbps
  • NGFW throughput (enterprise traffic mix): 14 Gbps
  • Threat protection throughput (enterprise traffic mix): 13 Gbps
  • IPv4 firewall throughput (1518-byte UDP): 164 Gbps
  • IPv4 firewall throughput (512-byte UDP): 164 Gbps
  • IPv4 firewall throughput (64-byte UDP): 145 Gbps
  • IPv6 firewall throughput (1518-byte UDP): 164 Gbps
  • IPv6 firewall throughput (512-byte UDP): 164 Gbps
  • IPv6 firewall throughput (86-byte UDP): 145 Gbps
  • Firewall latency (64-byte UDP): 2.5 µs
  • Firewall throughput: 217.5 Mpps
  • VPN throughput (512-bit IPSec): 55 Gbps
  • VPN throughput (SSL): 6.1 Gbps
  • SSL inspection throughput: 11.5 Gbps
  • Application control throughput: 50 Gbps
  • CAPWAP throughput: 131 Gbps
Remote Management ProtocolHTTP, HTTPS
Status IndicatorsStatus, alarm, HA, power, link/activity
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational240 watt
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Memory / Storage
Hard DriveSSD 480 GB x 2
Processors InstalledFortinet FortiASIC CP10/NP7
Software / System Requirements
OS ProvidedFortiOS
