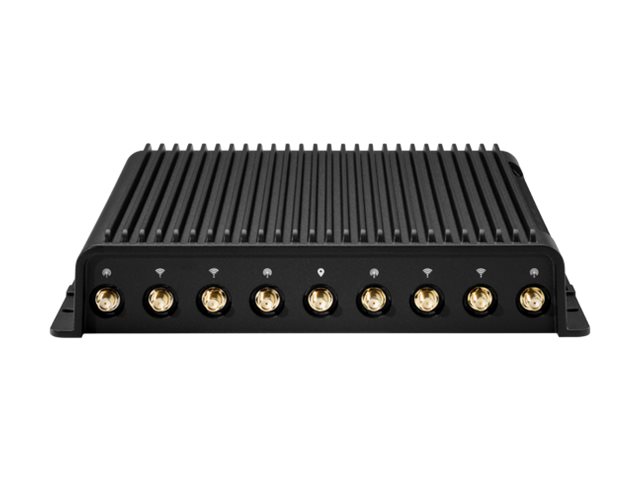

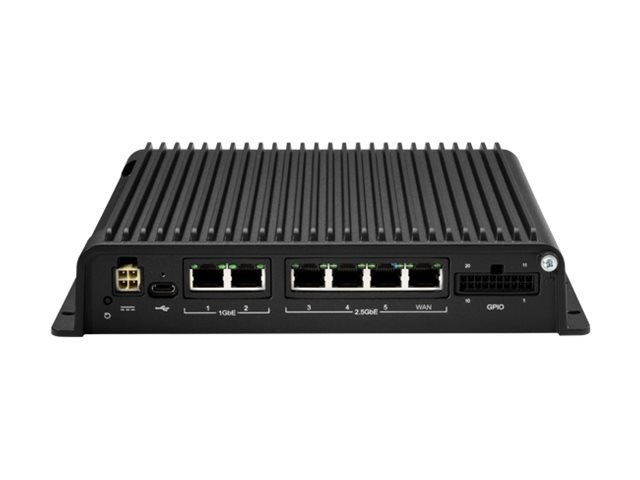

Ericsson Cradlepoint R2400
MSRP$3,499.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Ericsson Cradlepoint R2400
- Wireless router
- WWAN 1GbE, 2.5GbE, Wi-Fi 7 Dual Band
- 5G, 4G
- in-vehicle, rack-mountable, surface-mountable T-Mobile, AT&T, Verizon Wireless
- with 5 years NetCloud Mobile Performance Essentials Plan
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,499.00 |
| Mfr Part #: | MB05-R2400-5GF-NA-A |
| SHI Part #: | 51603288 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Cradlepoint |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Ericsson Cradlepoint R2400 - Wireless router - WWAN 1GbE, 2.5GbE, Wi-Fi 7 Dual Band - 5G, 4G - in-vehicle, rack-mountable, surface-mountable T-Mobile, AT&T, Verizon Wireless - with 5 years NetCloud Mobile Performance Essentials Plan |
| Manufacturer | Cradlepoint |
| MSRP | $3,499.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 1.64 kg |
| Dimensions & Weight / Width | 22.4 cm |
| Header / Brand | Ericsson |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Form Factor |
|
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac/ax/be |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 9 |
| Communications | |
| Cellular Band | 5G n2, 5G n5, 5G n7, 5G n12, 5G n13, 5G n14, 5G n25, 5G n26, 5G n29, 5G n30, 5G n38, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B17, LTE B25, LTE B26, LTE B29, LTE B30, LTE B66, LTE B71, LTE B38, LTE B41, LTE B42, LTE B43, LTE B48 |
| Cellular Protocol | 5G NR, 5G FR1, FDD LTE, TDD LTE, LTE Advanced Pro Cat 20 |
| Generation | 5G, 4G |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 19.5 cm |
| Height | 4.4 cm |
| Weight | 1.64 kg |
| Width | 22.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GPS / GLONASS / Galileo / Beidou, LED panel, 5G modem |
| Bundled Services | 5 years NetCloud Mobile Performance Essentials Plan |
| Capacity | Concurrent VPN tunnels: 20 |
| Compliant Standards | IEEE 802.11k, IEEE 802.11v, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, TAIP, NMEA, IP64, ISO 7637-2, UL, cUL, CB Scheme, EN 62368-1, e-mark certified, SAE J1455, REACH 1907/2006/CE, RoHS 2011/65/EC, NFPA 130, BSS 7239, Class 1 Div 2 (C1D2), FCC, IC, RCM, 3GPP Release 17, PTCRB, FCC Part 96 |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Device Type | Wireless router |
| Enclosure Type | Desktop, in-vehicle, rack-mountable, surface-mountable |
| Encryption Algorithm | WPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, FIPS 140-3 |
| Features | Rugged, SASE, ZTS, SD-WAN support, 4x4 MIMO technology, GPS/GLONASS/Galileo/BeiDou support, transient voltage protection, reverse polarity protection, Ignition Sense, 2x2 MIMO technology, reset button, LED status indicators, eSIM support, modular design |
| Flash Memory | 8 GB |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | IPSec |
| Performance |
|
| Processor | ARM8 |
| RAM | 3.8 GB |
| Service Provider | T-Mobile, AT&T, Verizon Wireless |
| Status Indicators | Power, WAN, signal strength, NCM |
| Internet of Things (IoT) | |
| Communications Technology | LTE Cat 20 |
| Internet of Things (IoT) Compatible | Yes |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | 1 x GPIO / power cable - 3 m |
| Localization | North America |
| MTBF | 727,511 hours |
| Power | |
| Power Consumption Operational | 29 watt |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 9 - 36 V |
