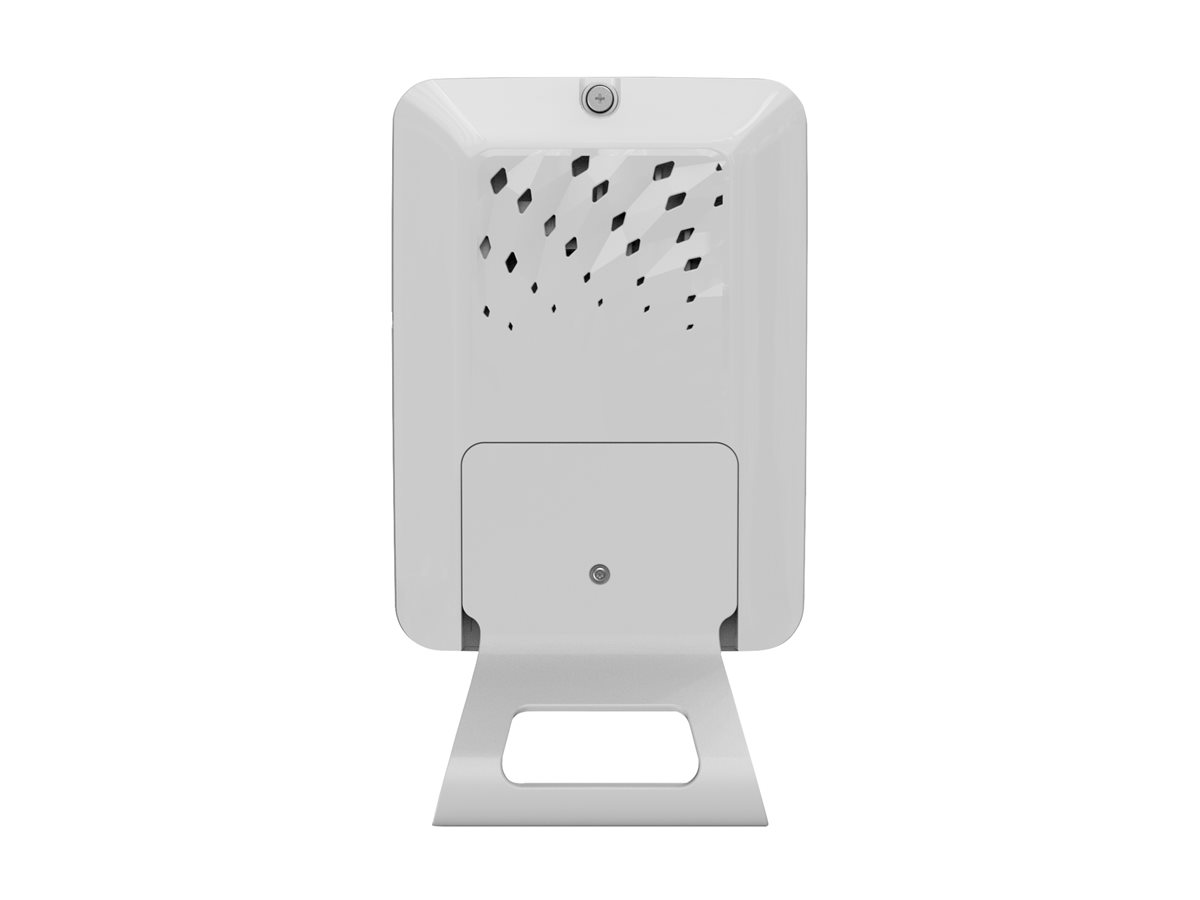

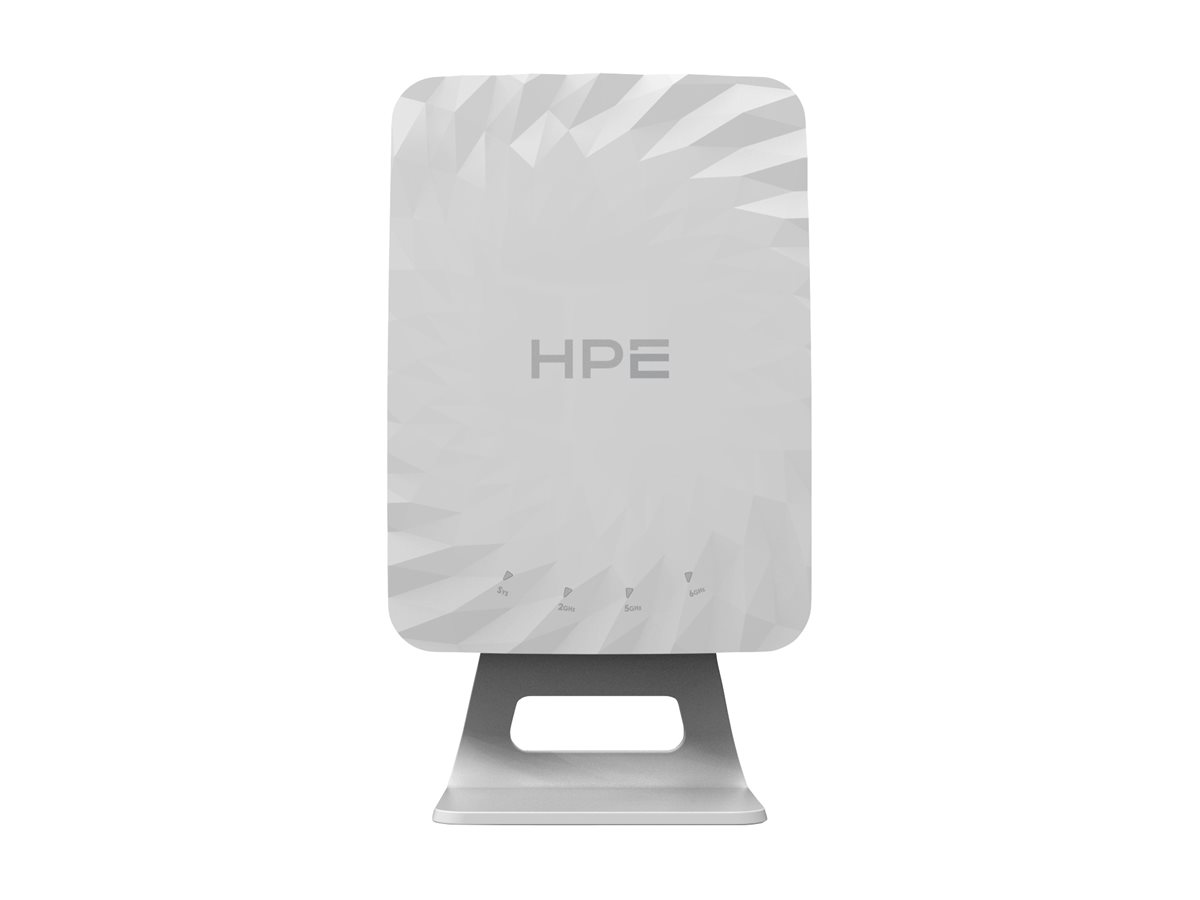

HPE Aruba Networking AP-725H (EG)

MSRP$1,395.00
$1,025.00
HPE Aruba Networking AP-725H (EG)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Hospitality
  • wireless access point
  • Wi-Fi 7, Bluetooth 5.4 LE
  • Wi-Fi 7, Bluetooth, ZigBee
  • 2.4 GHz, 5 GHz, 6 GHz
HPE Aruba Networking AP-725H (EG)
  • Hospitality
  • wireless access point
  • Wi-Fi 7, Bluetooth 5.4 LE
  • Wi-Fi 7, Bluetooth, ZigBee
  • 2.4 GHz, 5 GHz, 6 GHz
  Additional Details
Price: $1,025.00
MSRP: $1,395.00
Mfr Part #: S6Q98A
SHI Part #: 51296233
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryWireless access point
DescriptionHPE Aruba Networking AP-725H (EG) - Hospitality - wireless access point - Wi-Fi 7, Bluetooth 5.4 LE - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz
ManufacturerHewlett Packard Enterprise
MSRP$1,395.00
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth15.24 cm
Dimensions & Weight / Height5.59 cm
Dimensions & Weight / Weight1.13 kg
Dimensions & Weight / Width19.56 cm
Header / BrandHPE
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • Bluetooth 5.4 LE
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
  • ZigBee
Networking / Data Transfer Rate9.3 Gbps
Networking / Form FactorExternal
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Antenna
AntennaInternal
DirectivityDirectional
Gain Level3.5 dBi
Dimensions & Weight (Shipping)
Shipping Depth21.4 cm
Shipping Height17 cm
Shipping Width43.2 cm
Environmental Parameters
Humidity Range Operating5 - 95% RH
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x 5GBase-T (PoE) - RJ-45
  • 1 x console
  • 2 x 10/100/1000Base-T (PoE) - RJ-45
  • 1 x USB 2.0 (host) - Type A
  • 2 x 10/100/1000Base-T - RJ-45
General
Depth15.24 cm
Device TypeWireless access point
Height5.59 cm
Ruggedized DesignIndoor
Weight1.13 kg
Width19.56 cm
Internet of Things (IoT)
Communications TechnologyBluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) CompatibleYes
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEEE, FCC, ISED, LVD 2014/35/EU, IEC/EN 62368-1, EN60601-1-2, ETS 300 019 Class 3.1, UL 2043
MTBF500,000 hours
Networking
Capacity
  • Spatial streams: 2
  • Associated client devices per radio: 400
  • BSSIDs per radio: 16
  • OFDMA units: 37
Compliant StandardsIEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11ac, Wi-Fi CERTIFIED
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, ZigBee, Bluetooth 5.4 LE
Data Transfer Rate9.3 Gbps
Encryption AlgorithmWPA2, WPA2-MPSK, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Features2x2 MIMO technology, Trusted Platform Module 2.0 (TPM 2.0), security slot (Kensington security lock compatible), Target Wake Time (TWT), Advanced Cellular Coexistence (ACC), secure boot, Intelligent Power Monitoring (IPM), Network Access Control (NAC), packet aggregation A-MPDU, packet aggregation A-MSDU, Transmit Beam-forming (TxBF) ready, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), auto-uplink (auto MDI/MDI-X), PoE Class 6, DFS support, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), MACsec support
Form FactorExternal
Frequency Band2.4 GHz, 5 GHz, 6 GHz
Line Coding FormatCCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, QPSK, DSSS, OFDMA
Performance
  • Maximum data rate (5 GHz): 2.88 Gbps
  • Maximum data rate (2.4 GHz): 690 Mbps
  • Maximum data rate (6 GHz): 5.76 Gbps
  • Maximum tri-band aggregate data rate: 9.3 Gbps
Spread Spectrum MethodOFDMA, DSSS, OFDM
Status IndicatorsSystem, power, radio
Power
Power DeviceExternal power adapter (not included)
Power Over Ethernet (PoE) SupportedPoE
