Hardware Networking and Security Access Points and Bridges
Add to My Favorites
Access Points and Bridges

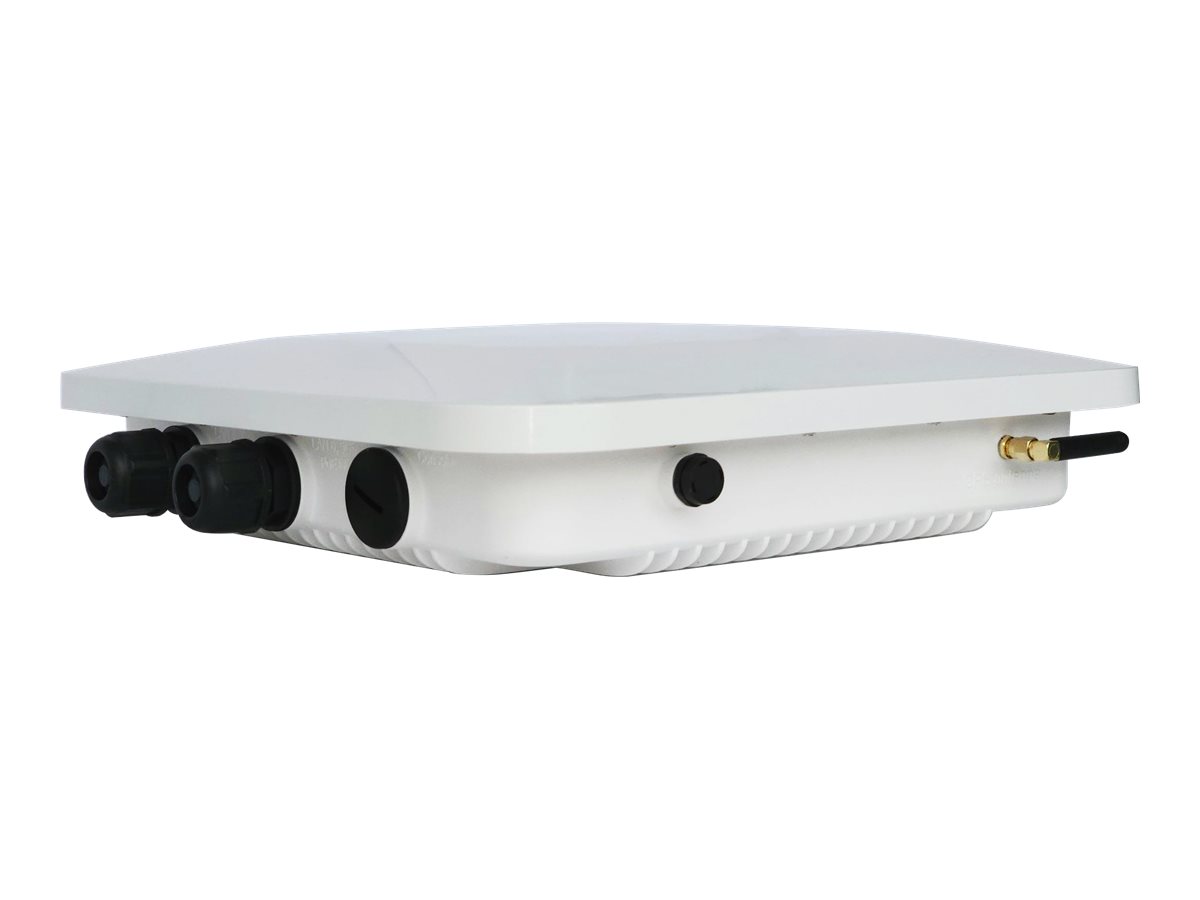

Fortinet FortiAP HD-431G

Login for Price
Fortinet FortiAP HD-431G
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wireless access point
  • high density
  • Wi-Fi 6E
  • 2.4 GHz, 5 GHz, 6 GHz
  • wall / ceiling mountable
Fortinet FortiAP HD-431G
  • Wireless access point
  • high density
  • Wi-Fi 6E
  • 2.4 GHz, 5 GHz, 6 GHz
  • wall / ceiling mountable
  Additional Details
Mfr Part #: FAP-HD-431G-V
SHI Part #: 51190596
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Fortinet
Product Type: Hardware
General Information
CategoryWireless access point
DescriptionFortinet FortiAP HD-431G - Wireless access point - high density - Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - wall / ceiling mountable
ManufacturerFortinet
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth20.5 cm
Dimensions & Weight / Height3.3 cm
Dimensions & Weight / Weight630 g
Dimensions & Weight / Width20.5 cm
Header / BrandFortinet
Header / Country Kits
  • Cambodia
  • Laos
  • Thailand
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Data Transfer Rate8.407 Gbps
Networking / Form FactorWall / ceiling mountable
Networking / TypeWireless access point
Packaged Quantity1
Antenna
AntennaInternal
Environmental Parameters
Humidity Range Operating10 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces2 x 5GBase-T (PoE) - RJ-45
General
Depth20.5 cm
Device TypeWireless access point
Height3.3 cm
LocalizationCambodia, Laos, Thailand
Ruggedized DesignIndoor
Weight630 g
Width20.5 cm
Miscellaneous
Compliant StandardsEN55024, EN 55032, EN 50385, EN 301 893, EN 300 328, FCC Subpart B, FCC Subpart C 15.247, FCC Subpart E 15.407
Networking
Capacity
  • Associated client devices per radio: up to 200
  • Spatial streams: 12
Compliant StandardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6E, IEEE 802.3at, IEEE 802.11i, IEEE 802.11e, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.1ae
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate8.407 Gbps
Encryption AlgorithmAES, CBC, CCM, 128-bit AES-CCMP, 256-bit AES-CCMP, WPA, WPA2, WPA3, TLS
Features4x4 MU-MIMO technology, iBeacon technology, Trusted Platform Module (TPM), auto-uplink (auto MDI/MDI-X), 802.1x authentication, Captive Portal, MAC black/whitelist, security slot (Kensington security lock compatible), Cellular Coexistence Filter (CCF), LED off mode, BSS Coloring, uplink/downlink MU-MIMO, Target Wake Time (TWT), rogue access point detection, Transmit Power Control (TPC), Dynamic Frequency Selection (DFS), Cyclic Delay Diversity (CDD), Low Density Parity Check (LDPC), Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC), SGI support, Space Time Blocking Code (STBC), Transmit Beam-forming (TxBF) ready, Airtime Fairness, client load balancing, Dynamic Radio Management (DRM), reset button, Quality of Service (QoS)
Form FactorWall / ceiling mountable
Frequency Band2.4 GHz, 5 GHz, 6 GHz
Line Coding FormatBPSK, QPSK, 64 QAM, 256 QAM, 1024 QAM, OFDMA
Performance
  • Maximum throughput (2.4 GHz): 1201 Mbps
  • Maximum throughput (5 GHz): 2402 Mbps
  • Maximum throughput (6 GHz): 4804 Mbps
Spread Spectrum MethodOFDMA
Status IndicatorsPower, radio, LAN
Power
Power Consumption Operational20.4 watt
Power DeviceExternal power adapter / power injector (not included)
Power Over Ethernet (PoE) SupportedPoE
