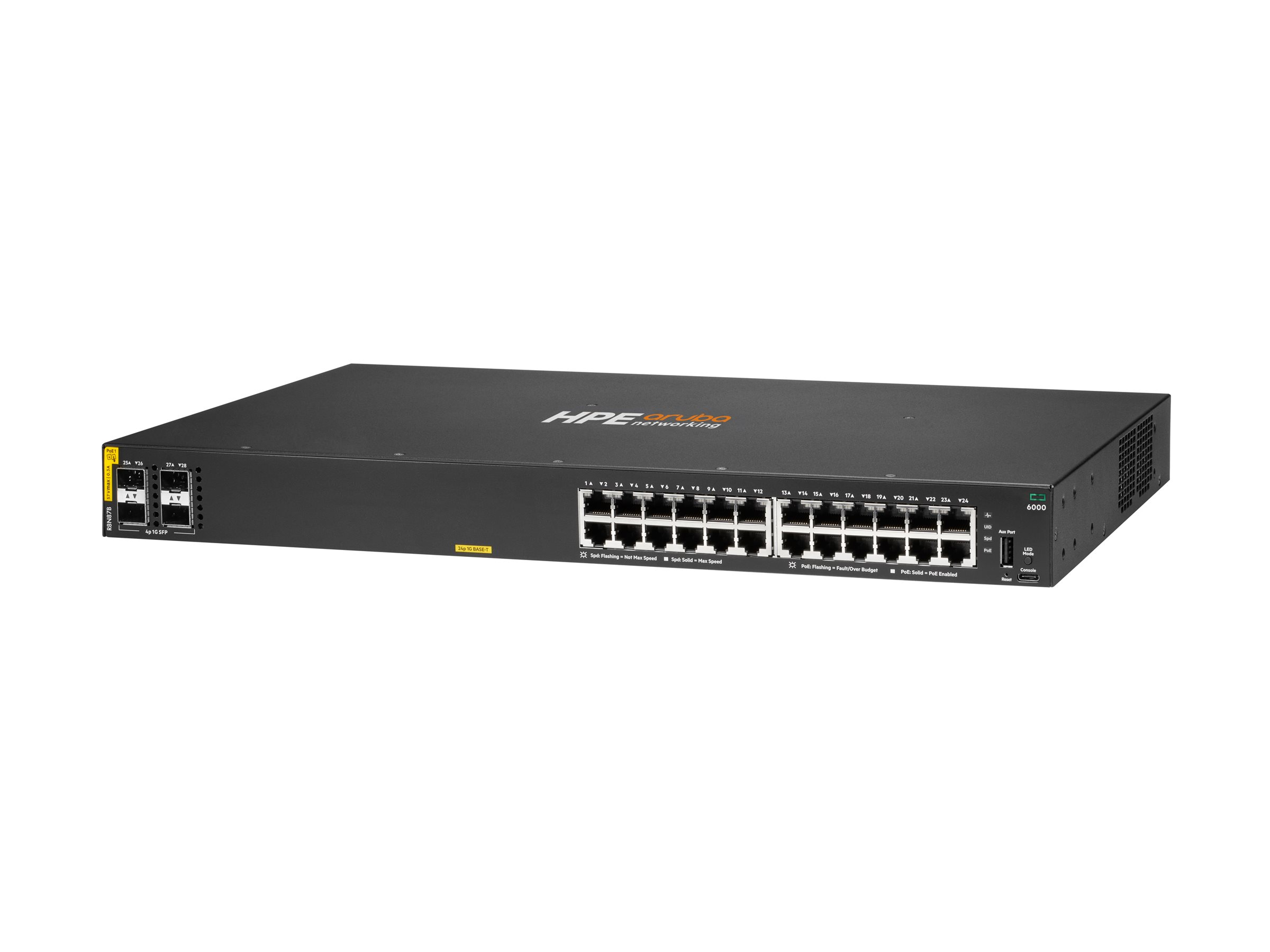

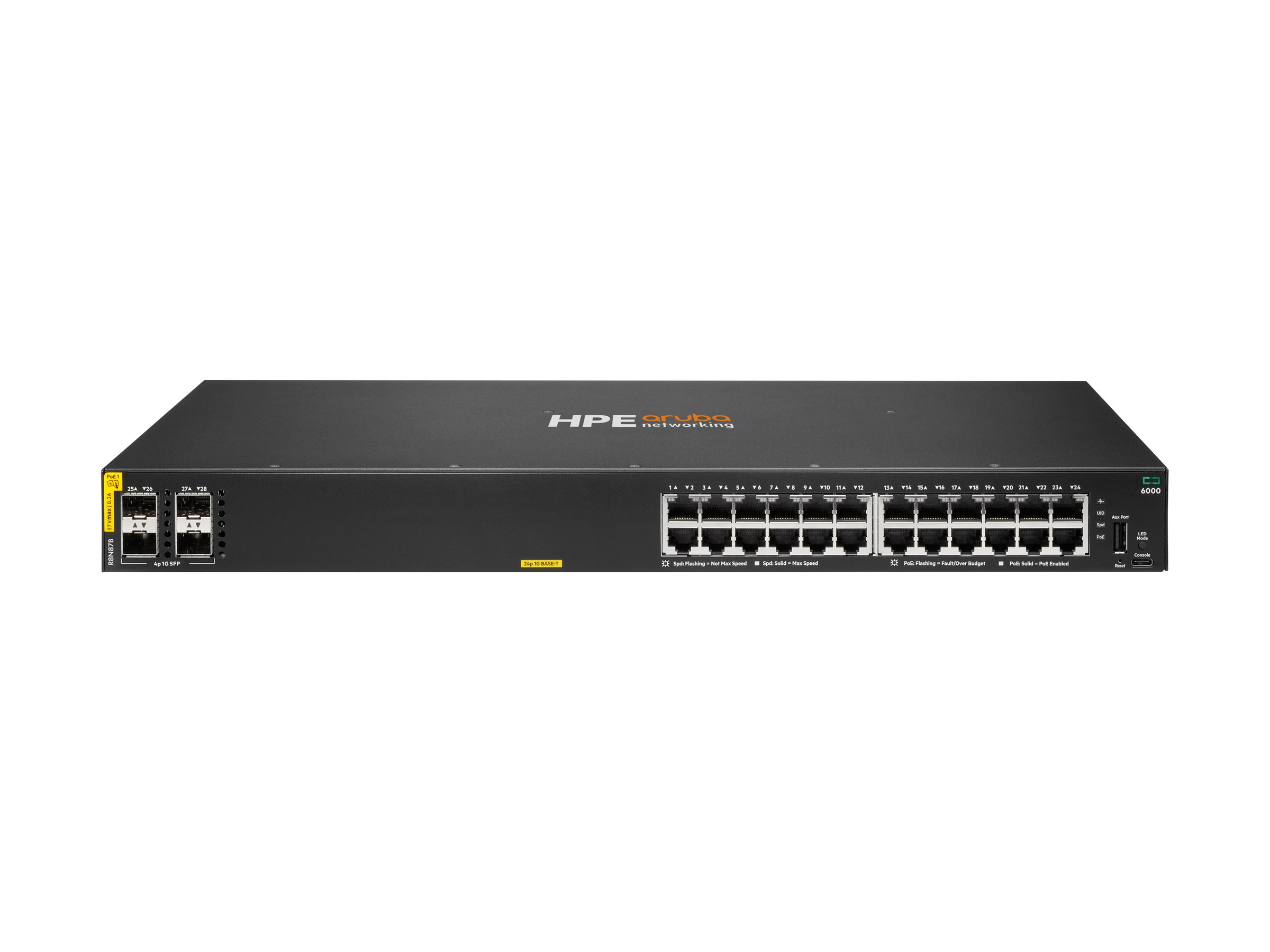

HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch
- Switch
- managed
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- side to side airflow
- rack-mountable, wall-mountable
- PoE+ (370 W)
- BTO
| Additional Details | |
|---|---|
| Mfr Part #: | R8N87B#ABA |
| SHI Part #: | 51091159 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch - Switch - managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - side to side airflow - rack-mountable, wall-mountable - PoE+ (370 W) - BTO |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.82 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 3.68 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | HPE |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required | AOS-CX |
| Dimensions & Weight | |
| Depth | 26.82 cm |
| Height | 4.39 cm |
| Weight | 3.68 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Side to side airflow rack-mountable, wall-mountable 1U |
| Encryption Algorithm | SSL |
| Features | PoE Class 4, CoS, ToS, TPM, layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support |
| Flash Memory | 8 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 8192 entries |
| Performance |
|
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 2 GB DDR3 SDRAM |
| Remote Management Protocol | MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3 |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, KC 62386-1:2021, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3 |
| Localization | English / United States |
| Pricing Type | BTO |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Stand by | 16 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | AOS-CX |
