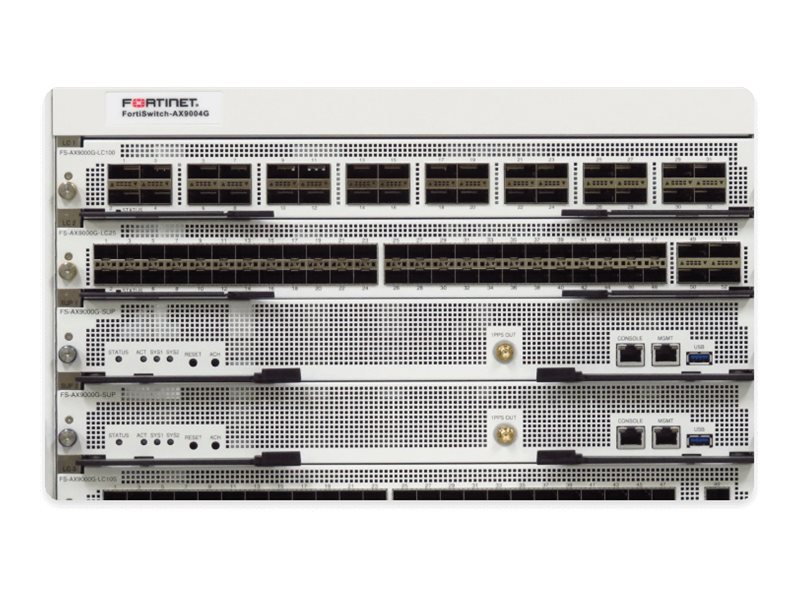

Fortinet FortiSwitch FS-AX9004G

MSRP$24,098.00
$18,624.00
Fortinet FortiSwitch FS-AX9004G
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • front to back airflow
  • rack-mountable
Fortinet FortiSwitch FS-AX9004G
  • Switch
  • L3
  • managed
  • front to back airflow
  • rack-mountable
  • for P/N: FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FS-AX9000G-SUP
  Additional Details
Price: $18,624.00
MSRP: $24,098.00
Mfr Part #: FS-AX9004G
SHI Part #: 50878301
Category: Network switches
UNSPSC: 43222612
Manufacturer: Fortinet
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionFortinet FortiSwitch FS-AX9004G - Switch - L3 - managed - front to back airflow - rack-mountable - for P/N: FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FS-AX9000G-SUP
ManufacturerFortinet
MSRP$24,098.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth60 cm
Dimensions & Weight / Height48.5 cm
Dimensions & Weight / Width44.1 cm
Header / BrandFortinet
Miscellaneous / Product ColorGray
Networking / Connectivity TechnologyWired
Networking / Form FactorRack-mountable
Networking / TypeSwitch
Packaged Quantity1
Compatibility Information
Designed ForP/N: FN-CABLE-QSFP28-2, FN-CABLE-QSFP28-3, FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FN-TRAN-LX, FN-TRAN-QSFP+LR, FN-TRAN-QSFP+SR, FN-TRAN-QSFP28-ER, FN-TRAN-QSFP28-LR, FN-TRAN-QSFP28-SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SFP28-LR, FN-TRAN-SFP28-SR, FN-TRAN-SX, FS-AX9000G-SUP
Dimensions & Weight
Depth60 cm
Height48.5 cm
Width44.1 cm
Environmental Parameters
Humidity Range Operating5 - 85%
Max Operating Temperature40 °C
Max Storage Temperature65 °C
Min Operating Temperature0 °C
Min Storage Temperature-25 °C
General
Authentication MethodTACACS+, RADIUS
Capacity
  • Layer 3 routes (IPv4): 64000
  • Layer 3 routes (IPv6): 64000
  • Host IPv4 routes: 130000
  • Host IPv6 routes: 130000
  • IPv4 routes (Multicast): 8000
  • IPv6 routes (Multicast): 8000
  • ACL: 24000
  • Virtual interfaces (VLANs): 4000
Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1ad, IEEE 802.3u, IEEE 802.3z, IEEE 802.3bz, IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af
Device TypeSwitch - L3 - managed
Enclosure TypeFront to back airflow rack-mountable 11U
FeaturesAuto-negotiation, edge port auto-detection, Link Aggregation, VLAN Tagging, MSTP support, RSTP support, LACP, back pressure flow control, Loop Guard, UDLD, DHCP relay, IGMP querier, IGMP snooping, IP conflict detection & prevention, layer 3 routing, MLD querier, MLD snooping, Multicast routing, static routing, URPF, VRF, cross device link aggregation, DSCP prioritization, configuration rollback, IPv4 support, IPv6 support, hot swappable, modular design, QoS
Jumbo Frame SupportYes
MAC Address Table Size256K entries
Remote Management ProtocolIPv4, IPv6, RMON 1, SSH, CLI, Syslog, UDP, TCP/IP, Telnet
Routing ProtocolBGP, OSPF, RIPng, VRRP, ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-SM, PIM-SSM
Miscellaneous
Compliant StandardsRFC1519, RFC1997, RFC2385, RFC2439, RFC2918, RFC4271, RFC4456, RFC4724, RFC5004, RFC5065, RFC5492, RFC6793, RFC6996, RFC7705, RFC1542, RFC2131, RFC3046, RFC3527, RFC5107, RFC8415, RFC768, RFC791, RFC792, RFC793, RFC813, RFC826, RFC896, RFC922, RFC950, RFC1027, RFC1122, RFC1191, RFC1323, RFC1812, RFC2018, RFC2474, RFC2644, RFC2883, RFC3021, RFC3168, RFC3782, RFC4632, RFC5227, RFC5494, RFC5681, RFC5927, RFC6056, RFC2236, RFC2362, RFC2934, RFC3376, RFC4604, RFC4607, RFC4608, RFC5059, RFC7761, RFC1981, RFC2710, RFC3587, RFC3879, RFC4291, RFC4311, RFC4443, RFC4861, RFC4862, RFC5095, RFC5722, RFC5952, RFC6085, RFC8200, RFC3590, RFC3810, RFC2328, RFC3101, RFC3137, RFC3623, RFC5187, RFC5250, RFC5309, RFC5340, RFC1305, RFC3768, RFC9568, RFC2865, RFC2866, RFC3162, RFC1058, RFC2080, RFC2453, RFC4822, RFC1155, RFC1157, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC2579, RFC2580, RFC3410, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC3417, RFC3584, RFC3826, RFC7860, FCC, RCM, VCCI, BSMI, UL, CB, RoHS2
Power
Power DeviceExternal power adapter (not included)
Voltage RequiredAC 100-240 V (50/60 Hz)
