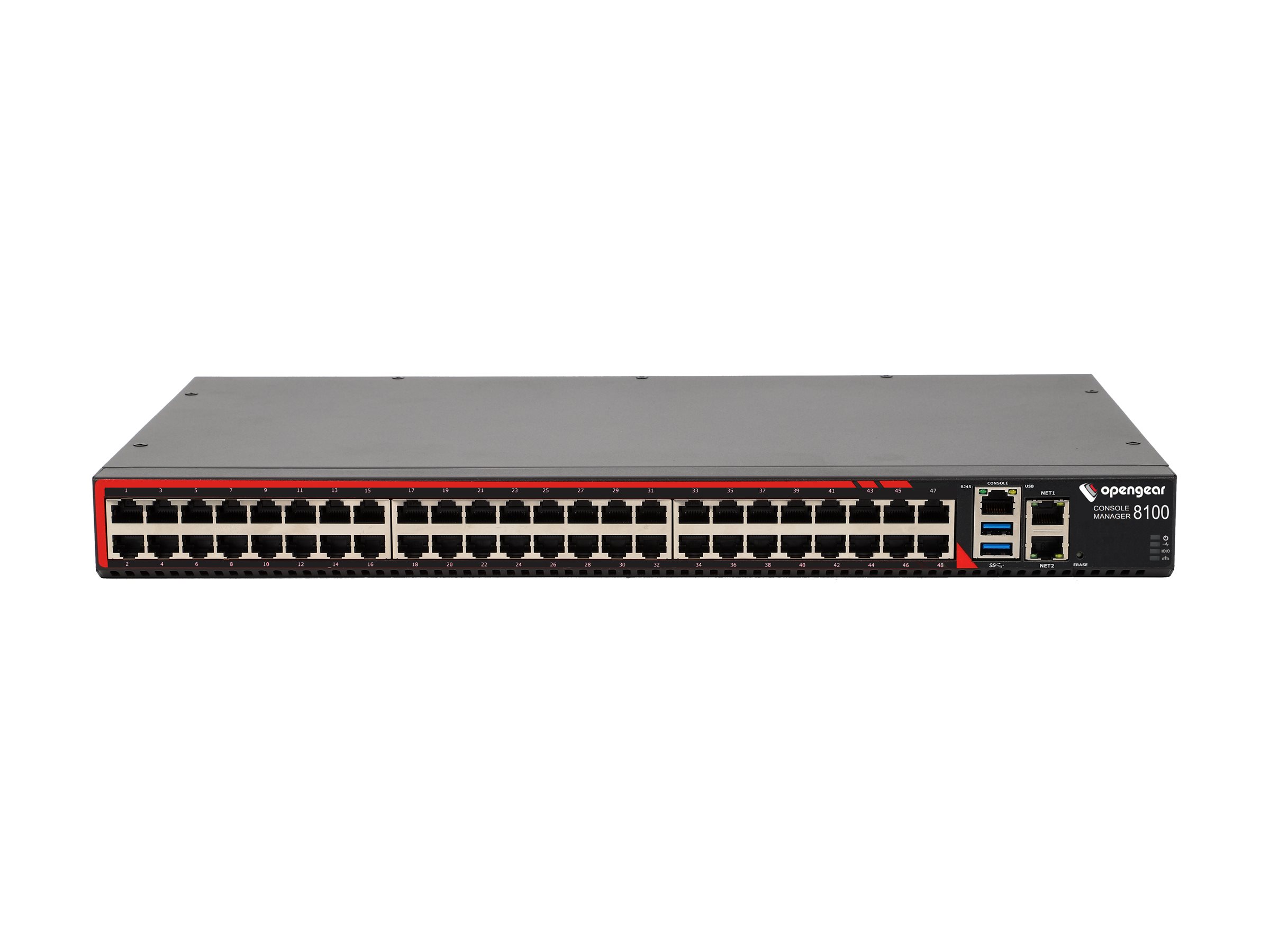

Opengear CM8148 - Console server

MSRP$4,499.00
$4,218.00
Opengear CM8148 - Console server
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 48 ports
  • 1GbE, RS-232
  • 1U
  • rack-mountable
Opengear CM8148 - Console server
  • 48 ports
  • 1GbE, RS-232
  • 1U
  • rack-mountable
  Additional Details
Price: $4,218.00
MSRP: $4,499.00
Mfr Part #: CM8148-LSP
SHI Part #: 50694663
Category: Multistation access units (MAUs)
UNSPSC: 43222630
Manufacturer: Opengear
Product Type: Hardware
General Information
CategoryMultistation access units (MAUs)
DescriptionOpengear CM8148 - Console server - 48 ports - 1GbE, RS-232 - 1U - rack-mountable
ManufacturerOpengear
MSRP$4,499.00
UNSPSC43222630
Main Specifications
Dimensions & Weight / Depth23.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.5 kg
Dimensions & Weight / Width44 cm
Header / BrandOpengear
Miscellaneous / Product Color
  • Black
  • Red
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • RS-232
Networking / Data Transfer Rate230.4 Kbps
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeConsole server
Packaged Quantity1
Service & Support / Type4-year warranty
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 48 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45
  • 2 x USB 3.0 - Type A
  • 1 x console - RJ-45
General
Depth23.5 cm
Device TypeConsole server
Height4.4 cm
Height (Rack Units)1U
Weight4.5 kg
Width44 cm
Manufacturer Warranty
Service & Support
  • Limited warranty - 4 years
  • Technical support - 4 years
Miscellaneous
Cables Included
  • 1 x patch cable - 1.83 m
  • 1 x DB-9 to RJ-45 adapter
Compliant StandardsFCC Part 15 B Class A, ICES-003 issue 7, AS/NZS CISPR 32:2015, EN 55035:2017, EN 55032:2017, CISPR 32:2016, VCCI 32, CNS13438:2006, EN 61000-3-2:2019, IEC 61000-3-2:2018, IEC 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-3-3:2013, IEC 61000-4-2:2008, EN 61000-4-3:2006+A1:2008+A2:2010, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, EN 61000-4-4:2012, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-4-11:2004, IEC 62368, RoHS, IEC 1950
Included AccessoriesRack mount kit, 2 power cords (C13 to C14)
MTBF150,000 hours
Networking
Authentication MethodSecure Shell (SSH), TACACS+, Active Directory, RADIUS, LDAP
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232
Data Transfer Rate230.4 Kbps
FeaturesTrusted Platform Module 2.0 (TPM 2.0), Python runtime, Docker Support, ESD Protector, 1500V isolation, passive cooling, firewall protection, Authentication, Authorization and Accounting (AAA), Zero-touch provisioning (ZTP), Management Information Base (MIB), VPN support, Smart Out-of-Band, Lighthouse Service Portal (LSP) enabled
Form FactorRack-mountable
Network / Transport ProtocolIPv6, IPSec, OpenVPN
Ports Qty48
Remote Management ProtocolIPv6, SSH, SNMP
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational15 Watt
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 100-240 V
Processor / Memory / Storage
Flash Memory32 GB
Max Supported Qty1
Processors Installed1 x Marvell 88F6820 1.6 GHz
RAM2 GB DDR4 SDRAM
