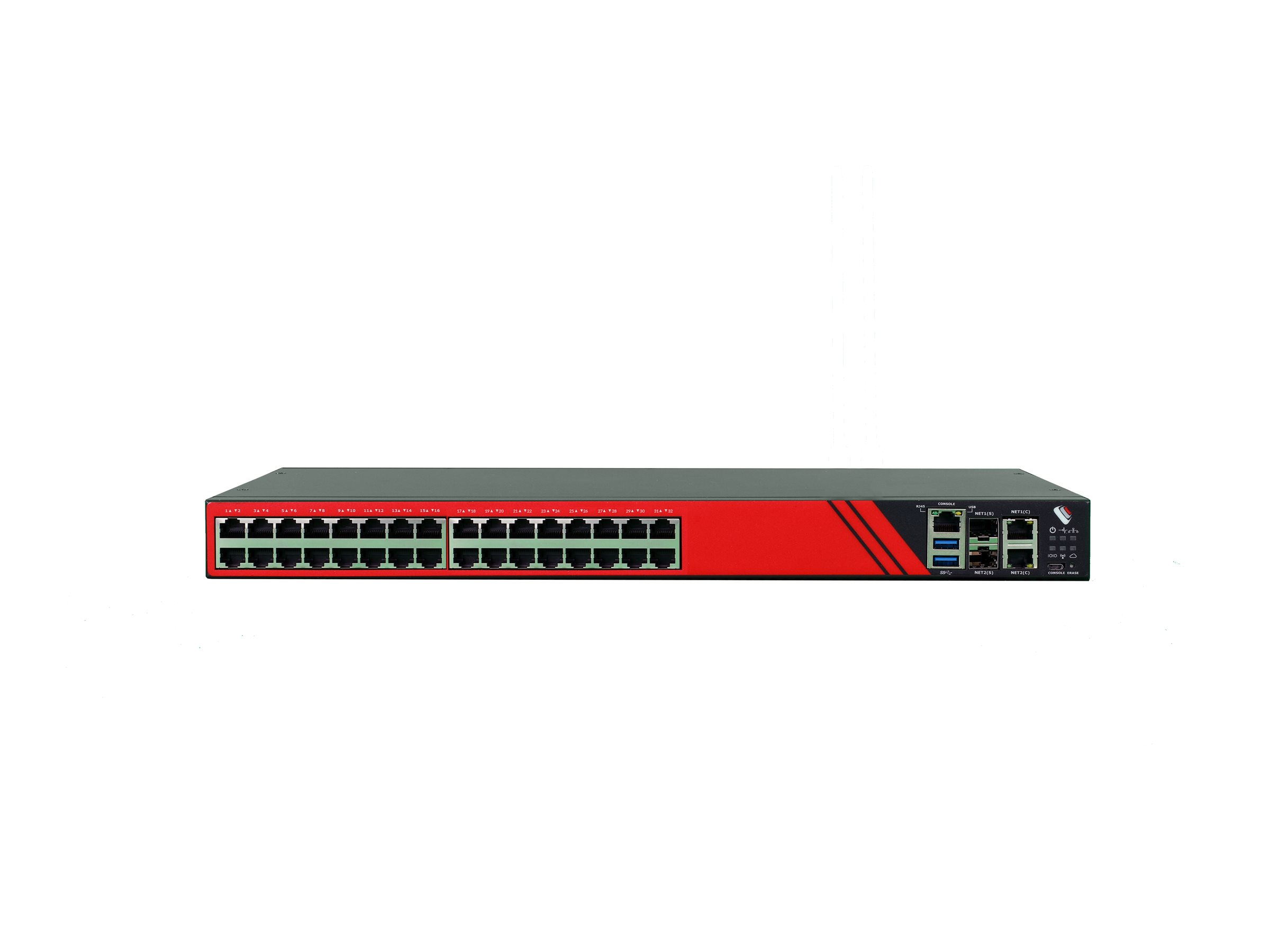

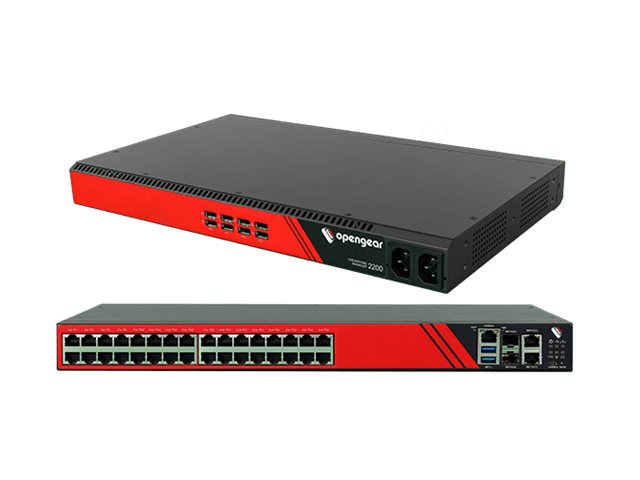

Opengear OM2232 - Console server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

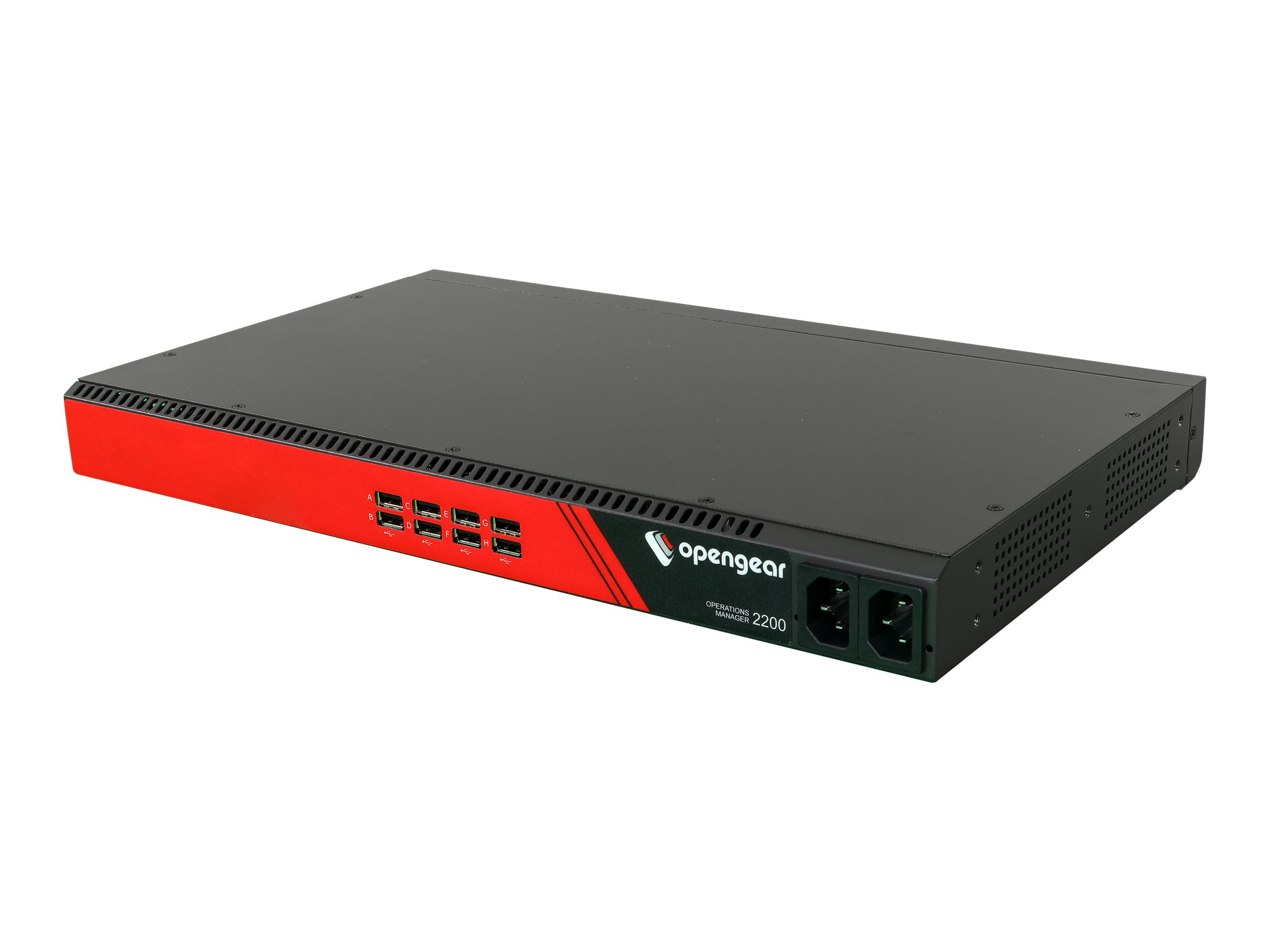

Opengear OM2232 - Console server
- with smart out-of-band management
- 32 ports
- 1GbE, RS-232
- 1U
- cloud-managed
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | OM2232-LSP |
| SHI Part #: | 50562757 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Opengear |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Opengear OM2232 - Console server - with smart out-of-band management - 32 ports - 1GbE, RS-232 - 1U - cloud-managed - rack-mountable - TAA Compliant |
| Manufacturer | Opengear |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Weight | 3.5 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Opengear |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 26 cm |
| Device Type | Console server |
| Height | 4.5 cm |
| Height (Rack Units) | 1U |
| Weight | 3.5 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - hardware replacement - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | EN 55032:2015 Class A, EN 61000-4-2, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-3-2:2014, EN 61000-4-11:2010, EN 61000-4-28:2010, EN 61000-4-4:2007, EN 61000-4-5:2014, EN 61000-4-6:2008, EN 61000-4-8:2009, EN 61000-3-3:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013 |
| Included Accessories | Rack mount kit, 2 power cords |
| MTBF | 100,000 hours |
| TAA Compliant | Yes |
| Networking | |
| Authentication Method | TACACS+, Secure Shell (SSH), RADIUS, Active Directory, LDAP, Kerberos |
| Cloud-Managed | Yes |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Features | Firewall protection, IPv6 support, IPv4 support, Authentication, Authorization and Accounting (AAA), Python runtime, Zero-touch provisioning (ZTP), Trusted Platform Module 2.0 (TPM 2.0), OpenVPN client, IPSec client, password protection, Smart Out-of-Band, Docker Support, Management Information Base (MIB), passive cooling, Quad-core CPU, Lighthouse Service Portal (LSP) enabled |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | IPv4, IPv6, OpenVPN, IPSec |
| Ports Qty | 32 |
| Remote Management Protocol | SSH, LDAP, SNMP, HTTP |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Memory / Storage | |
| Flash Memory | 16 MB |
| Hard Drive | SSD 64 GB x 1 - SATA 6Gb/s - M.2 |
| Max Supported Qty | 1 |
| Processors Installed | 1 x AMD GX-412TC 1.4 GHz |
| RAM | 8 GB DDR3 SDRAM |
