HPE Networking Instant On AP25 (ID)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

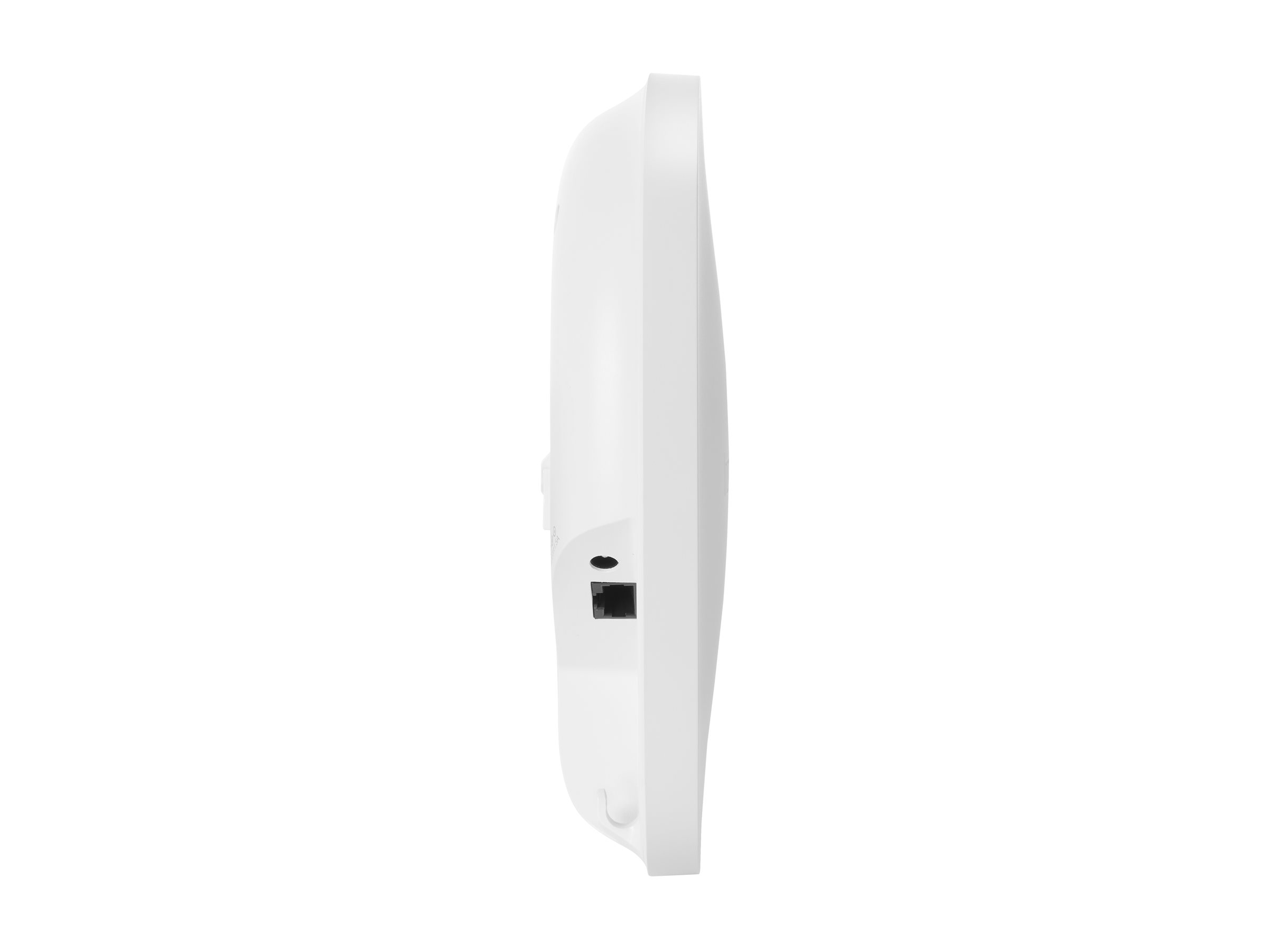

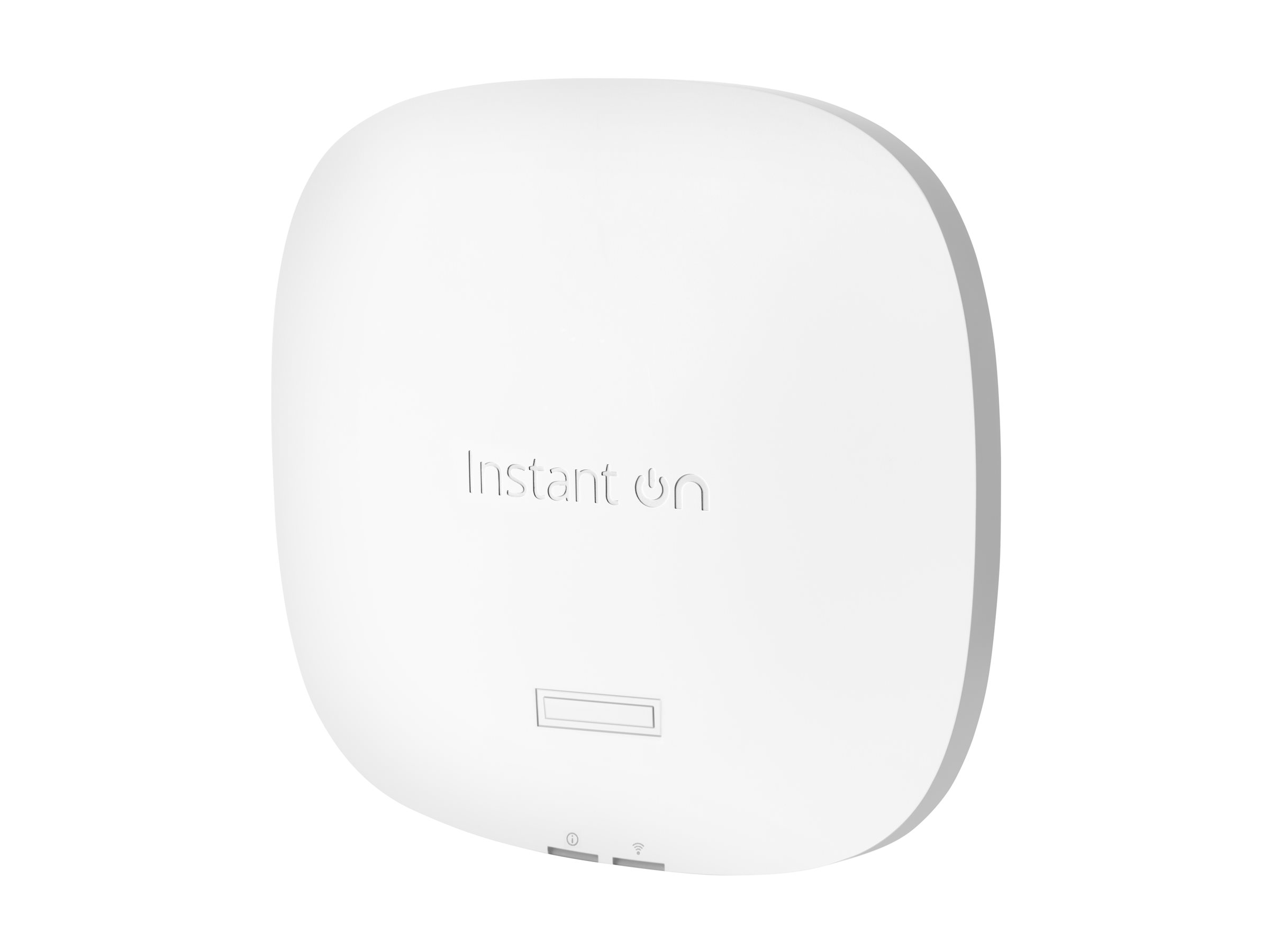

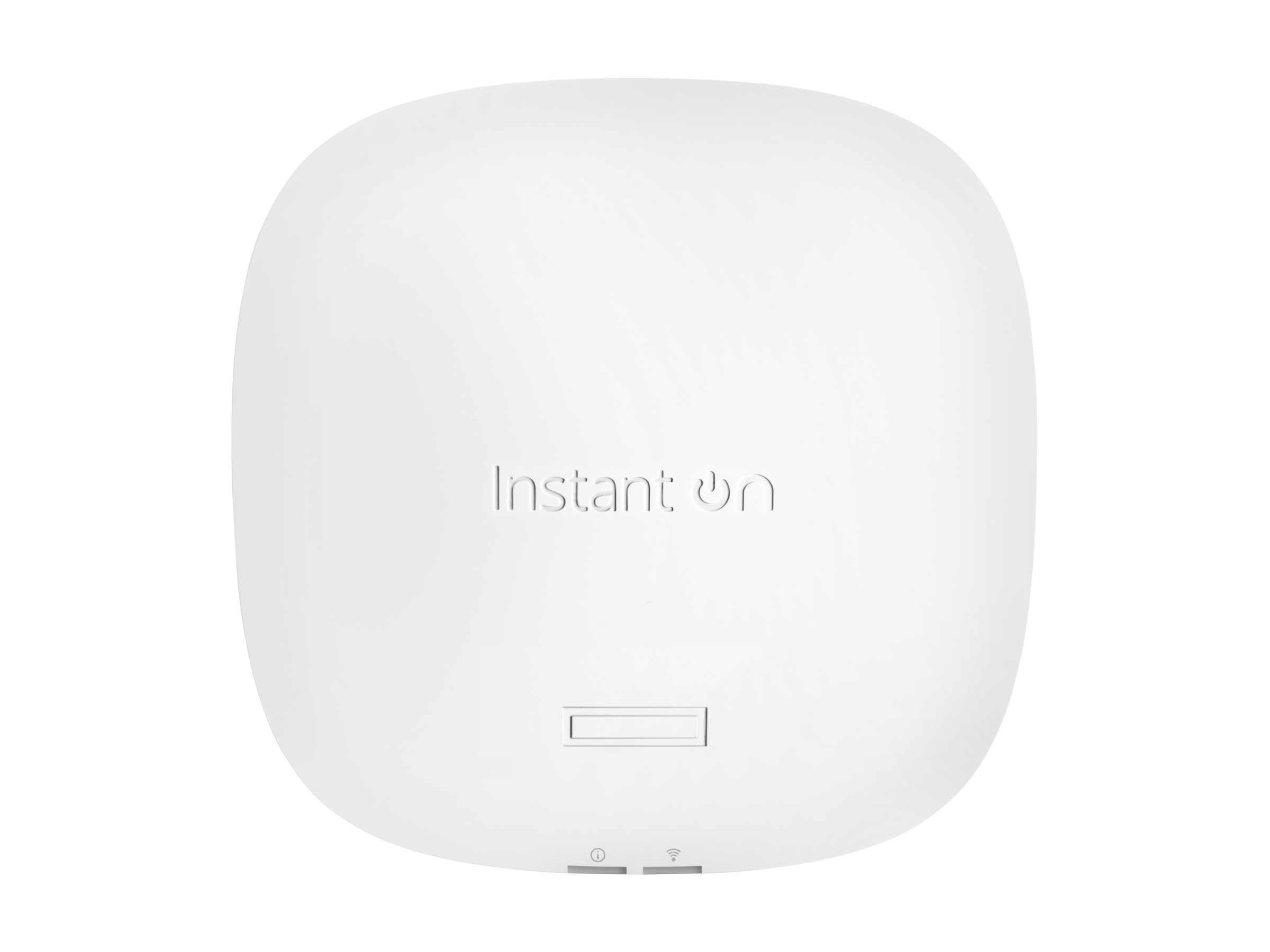

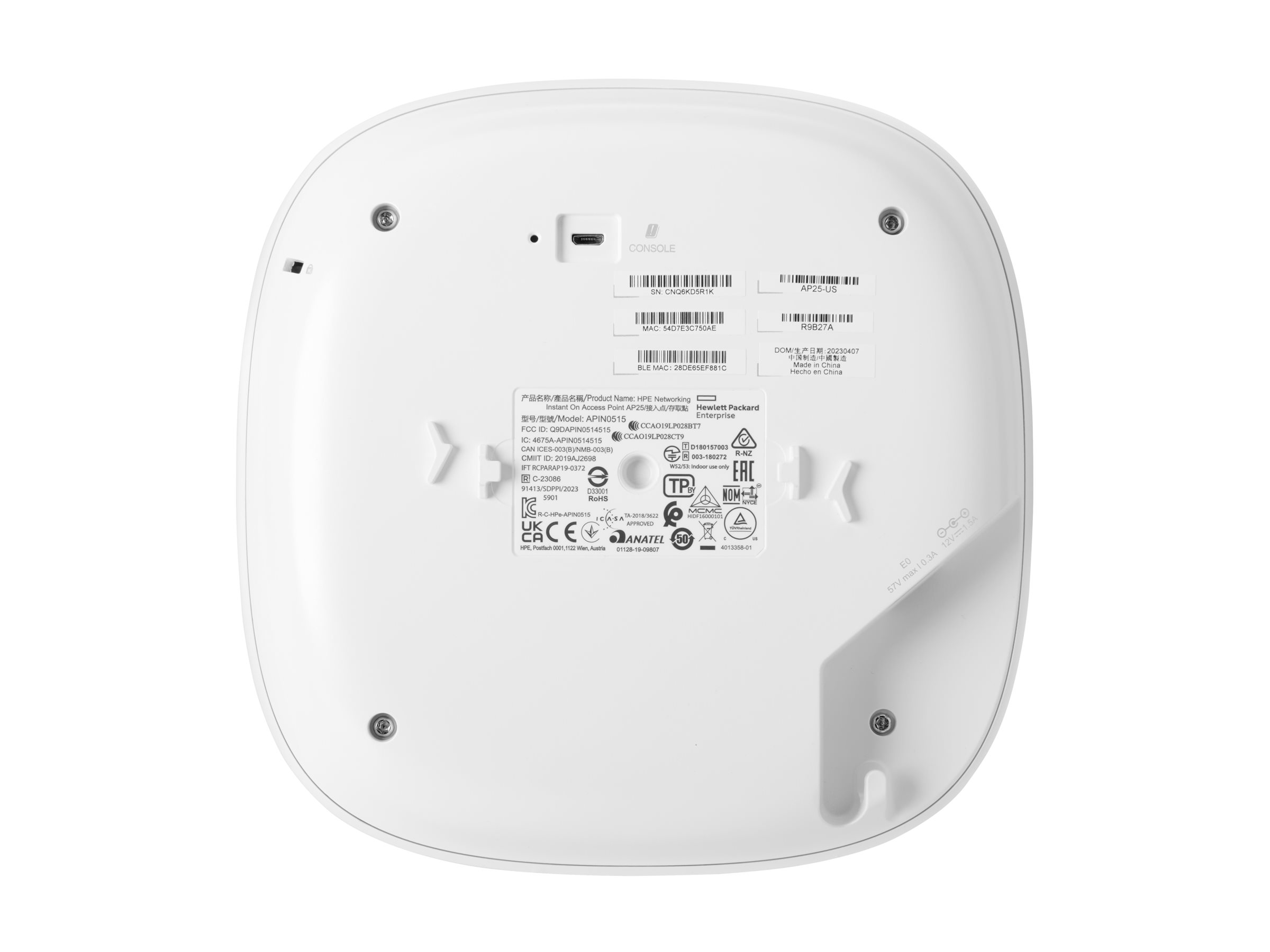

HPE Networking Instant On AP25 (ID)
- Wireless access point
- Wi-Fi 6
- Bluetooth
- 2.4 GHz, 5 GHz
- cloud-managed
- BTO
- wall / ceiling mountable
| Additional Details | |
|---|---|
| Mfr Part #: | S5H25A |
| SHI Part #: | 50561729 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | HPE Networking Instant On AP25 (ID) - Wireless access point - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - cloud-managed - BTO - wall / ceiling mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Height | 5.1 cm |
| Dimensions & Weight / Weight | 1.18 kg |
| Dimensions & Weight / Width | 20.3 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Wall / ceiling mountable |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 4.55 dBi |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5GBase-T (uplink, PoE) - RJ-45 - 20.1 W |
| General | |
| Device Type | Wireless access point |
| Height | 5.1 cm |
| Ruggedized Design | Indoor |
| Weight | 1.18 kg |
| Width | 20.3 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE) |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compliant Standards | EN 60601-1-1, EN 60601-1-2, WFA |
| Included Accessories | Wall/ceiling rail mounting clip |
| MTBF | 76 years |
| Pricing Type | BTO |
| Networking | |
| Cloud-Managed | Yes |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3at, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth LE |
| Encryption Algorithm | WPA2, WPA3 |
| Features | 4x4:4 streams, 160MHz bandwidth support, wall mountable, static IP mode, Trusted Platform Module (TPM), reset button, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), MU-MIMO technology, 4x4:4 MU-MIMO technology, 2-factor authentication, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support, Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT), Smart Mesh technology, BSS Coloring, Target Wake Time (TWT), multi-site management |
| Form Factor | Wall / ceiling mountable |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | 1024 QAM |
| Network / Transport Protocol | PPPoE |
| Performance |
|
| Spread Spectrum Method | OFDMA |
| Status Indicators | Status, reset |
| Power | |
| Power Device | External power adapter / power injector (not included) |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| Software Included | InstantOn |
