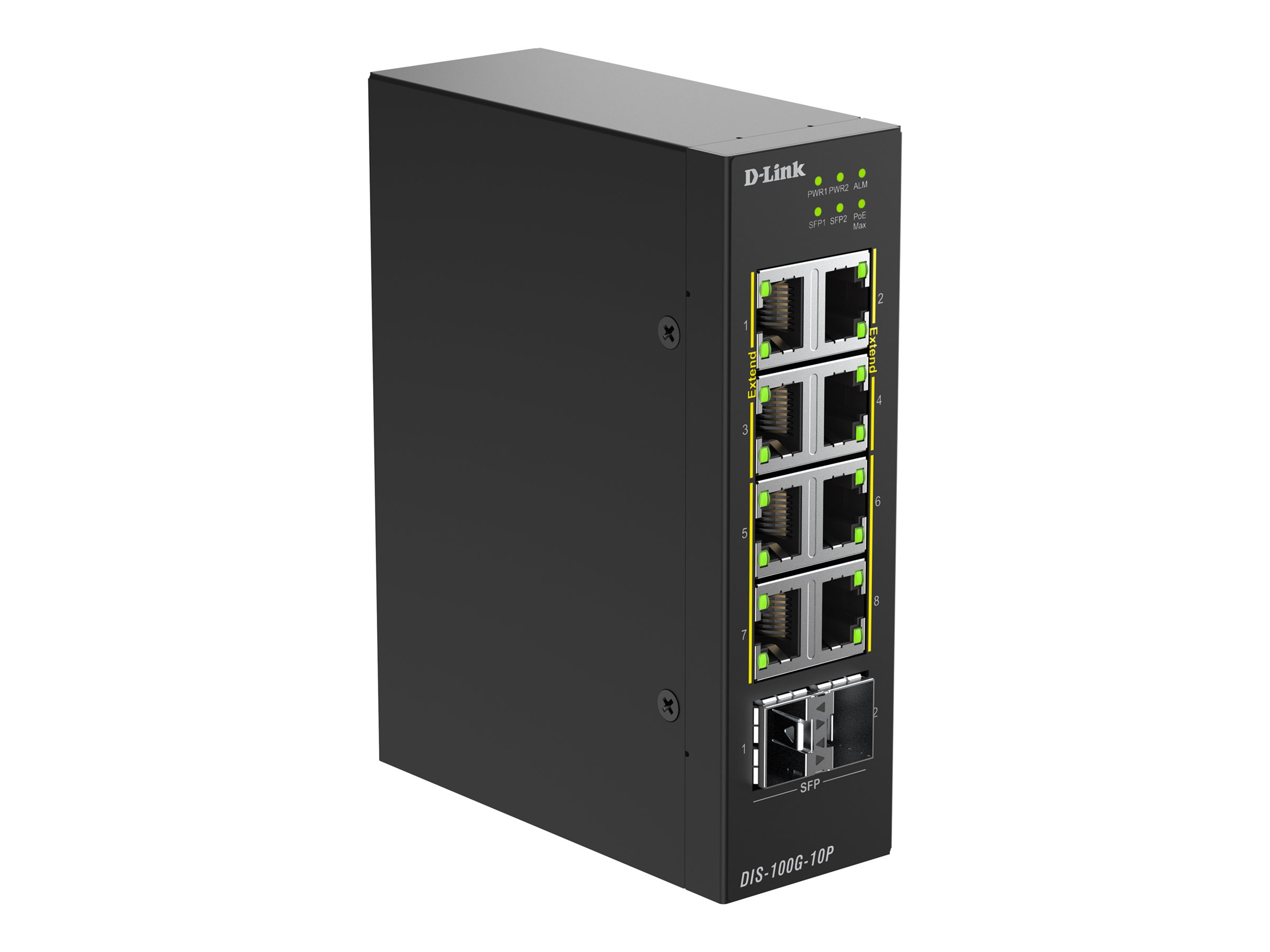

D-Link DIS 100G-10P - Switch
MSRP$389.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
D-Link DIS 100G-10P - Switch
- industrial
- unmanaged
- 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
- DIN rail mountable
- PoE (240 W)
- for DIS S301SX, S302SX, S310LX
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $389.99 |
| Mfr Part #: | DIS-100G-10P |
| SHI Part #: | 50538450 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | D-Link |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | D-Link DIS 100G-10P - Switch - industrial - unmanaged - 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP - DIN rail mountable - PoE (240 W) - for DIS S301SX, S302SX, S310LX |
| Manufacturer | D-Link |
| MSRP | $389.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.06 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 440 g |
| Dimensions & Weight / Width | 9.9 cm |
| Header / Brand | D-Link |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | D-Link DIS S301SX, S302SX, S310LX |
| Dimensions & Weight | |
| Depth | 13.06 cm |
| Height | 4.4 cm |
| Weight | 440 g |
| Width | 9.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Humidity Range Storage | 5 - 95% RH |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | Packet buffer memory: 2 Mbit |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af |
| Device Type | Switch - 10 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Features | Green Ethernet, EEE, fanless, passive cooling, store and forward, 6KV Surge protection, auto-uplink (auto MDI/MDI-X), metal housing |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 4K entries |
| Performance |
|
| PoE Budget | 240 W |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Status Indicators | Power, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | IP30, CB, cUL, BSMI, CE Class A certified, VCCI Class A, FCC Class A certified, IC, RCM |
| MTBF | >200,000 hours |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Voltage Required | DC 48 - 57 V |
