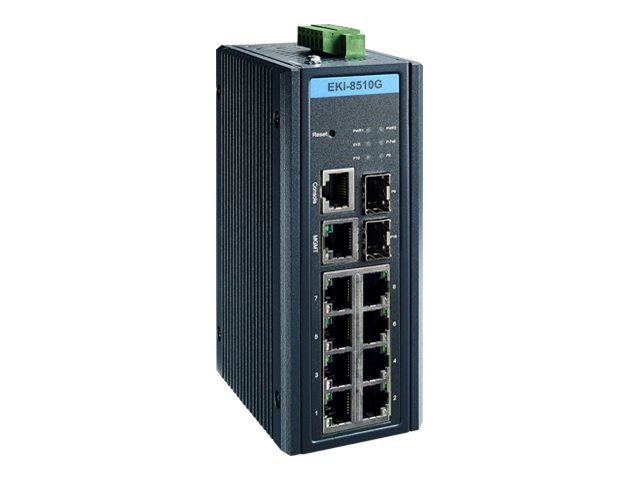

Advantech EKI-8510G-2FI
MSRP$1,283.92
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech EKI-8510G-2FI
- Switch
- industrial, TSN
- managed
- 8 x 10/100/1000 + 2 x Gigabit SFP
- DIN rail mountable, wall-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,283.92 |
| Mfr Part #: | EKI-8510G-2FI-A |
| SHI Part #: | 50526315 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Advantech EKI-8510G-2FI - Switch - industrial, TSN - managed - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN rail mountable, wall-mountable |
| Manufacturer | Advantech |
| MSRP | $1,283.92 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.5 cm |
| Dimensions & Weight / Height | 14 cm |
| Dimensions & Weight / Weight | 1.4 kg |
| Dimensions & Weight / Width | 5.8 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 9.5 cm |
| Height | 14 cm |
| Weight | 1.4 kg |
| Width | 5.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | TACACS+, Secure Shell (SSH) |
| Capacity |
|
| Compliant Standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.1Qbv, IEEE 802.1CB, IEEE 802.1Qbu, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 801.1ad, IEEE 802.1v, IEEE 802.1Qci, IEEE 802.1p, IEEE 802.1x |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Encryption Algorithm | MD5, SSL |
| Features | TSN, PTP, layer 2 switching, up to 100 m transmission distance, auto-negotiation, metal housing, LED status indicators, VLAN support, port mirroring, Link Aggregation, VLAN Stacking, MAC, IP subnet-based VLANs support, port trunking, GVRP, GMRP, IGMP snooping, IGMP snooping v2, IGMP snooping v3, MLD snooping, broadcast mode, QoS, PQ, rate limit, static IP mode, dynamic IP mode, anti-ARP spoofing, DHCP snooping, 802.1x authentication, DHCP client, DHCP server, DHCP relay, SNTP client, NTP client |
| Jumbo Frame Support | 10000 bytes |
| MAC Address Table Size | 32K entries |
| Performance |
|
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, WEB, Telnet, MIB, HTTP, HTTPS, TFTP, SFTP |
| Status Indicators | Link/activity/speed, power 1, power 2, system, power fail |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | CC-Link IE TSN Class B, IEEE 1588 v2, EN 50121-4, FCC Class A certified, RoHS, IP30, UL 62368-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, NEMA TS-2, EMI, CC-Link IE TSN Class A |
| Power | |
| Features | Power Polarity Reverse Protect, Overload Current Protection |
| Power Consumption Operational | 16.6 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | DC 12 - 48 V |
