HPE Aruba Networking CX 10040
MSRP$112,995.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

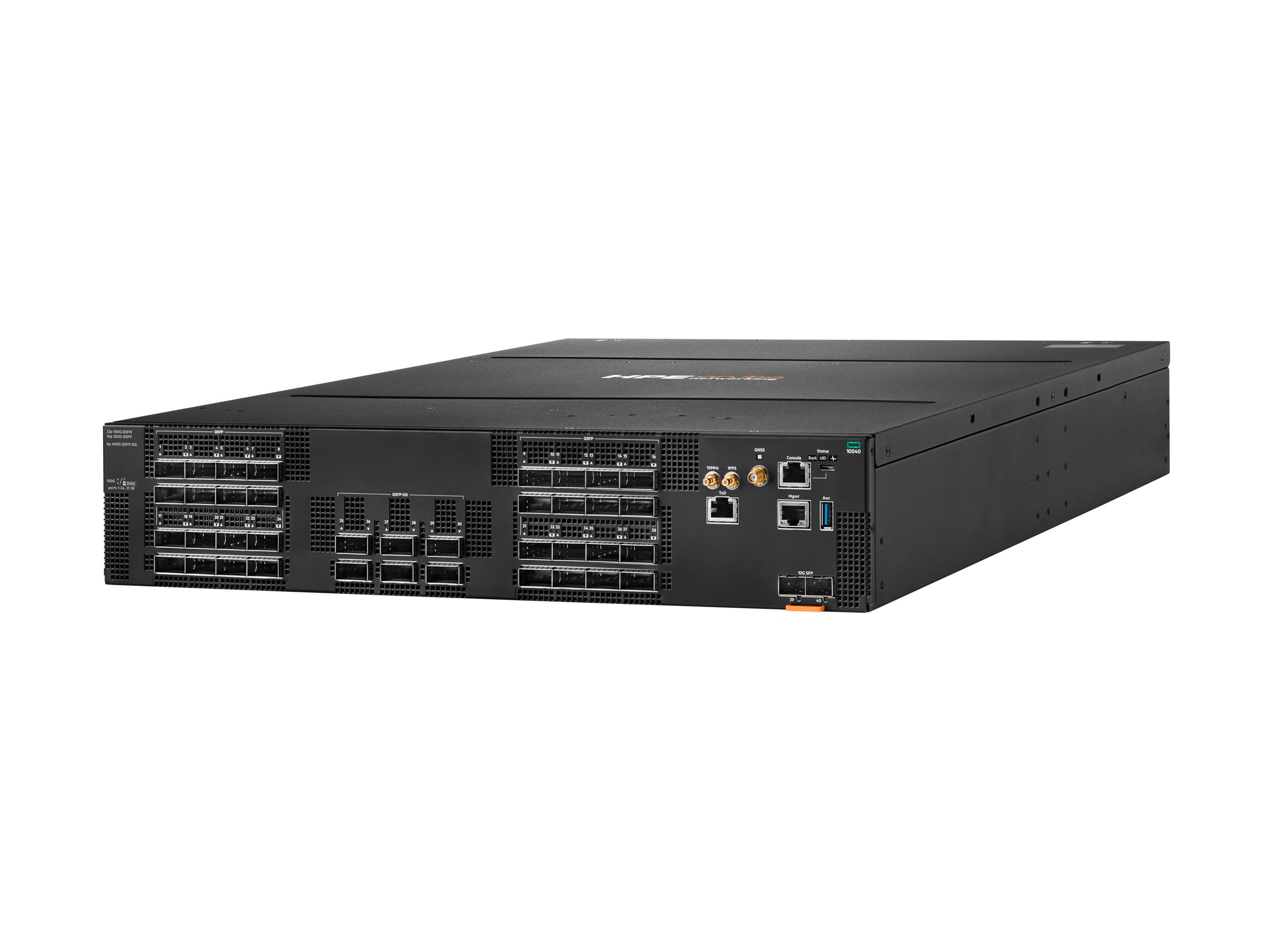

HPE Aruba Networking CX 10040
- Switch
- L3
- managed
- 32 x 100 Gigabit QSFP28 + 6 x 400 Gigabit QSFP-DD
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $112,995.00 |
| Mfr Part #: | S4R54A |
| SHI Part #: | 50519753 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba Networking CX 10040 - Switch - L3 - managed - 32 x 100 Gigabit QSFP28 + 6 x 400 Gigabit QSFP-DD - front to back airflow - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $112,995.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.84 cm |
| Dimensions & Weight / Height | 4.43 cm |
| Dimensions & Weight / Weight | 23 kg |
| Dimensions & Weight / Width | 60.96 cm |
| Header / Brand | Aruba |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 38 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 8.84 cm |
| Height | 4.43 cm |
| Weight | 23 kg |
| Width | 60.96 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Built-in Devices | 128 GB SSD, 4 x fans |
| Capacity |
|
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3x |
| Device Type | Switch - 38 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Features | OSPF, policy based routing, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, MLD snooping, sFlow, ACL support, IPv4 support, IPv6 support, LACP, UDLD, SP, DWRR, PIM, VTEP support, ToR, EoR |
| Flash Memory | 16 MB |
| Jumbo Frame Support | 9000 bytes |
| Performance | Switching capacity: 8 Tbps |
| Ports | 32 x 100 Gigabit QSFP28 + 6 x 400 Gigabit QSFP-DD |
| Processor | 1 x AMD V3C48 |
| RAM | 32 GB |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP, SSH, CLI, NTP |
| Routing Protocol | OSPF, BGP, BGP-4, EGP, VRRP, MLD, ECMP, PIM-SM, GRE, static IP routing, IGMP, IGMPv2, IGMPv3, OSPFv3, static IPv6 routing, policy-based routing (PBR), MSTP, RSTP, STP |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 1200 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
