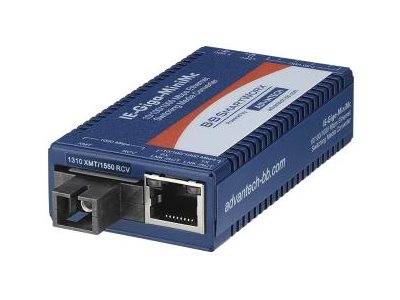

Advantech IMC-370 series
MSRP$244.56
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech IMC-370 series
- Fiber media converter
- 1GbE
- RJ-45 / SC single-mode
- up to 10 km
- 1310 (TX) / 1550 (RX) nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $244.56 |
| Mfr Part #: | IMC-370I-SST-C |
| SHI Part #: | 50307339 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Advantech IMC-370 series - Fiber media converter - 1GbE - RJ-45 / SC single-mode - up to 10 km - 1310 (TX) / 1550 (RX) nm |
| Manufacturer | Advantech |
| MSRP | $244.56 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.51 cm |
| Dimensions & Weight / Height | 2.11 cm |
| Dimensions & Weight / Weight | 317 g |
| Dimensions & Weight / Width | 4.57 cm |
| Header / Brand | Advantech |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 8.51 cm |
| Height | 2.11 cm |
| Weight | 317 g |
| Width | 4.57 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | UL/cUL, FCC Class A certified, CSA, Plug and Play, NEMA TS-2, EU RoHS 2002/95/EC, cULus |
| MTBF | 109,243 hours |
| Networking | |
| Compliant Standards | IEEE 802.3af, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Metal housing, Link Fault Pass-Through (LFPT) support, hardened, Single-Strand Fiber technology, Jumbo Frames support (up to 16000 bytes), auto-uplink (auto MDI/MDI-X), bidirectional |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Status Indicators | Status |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
