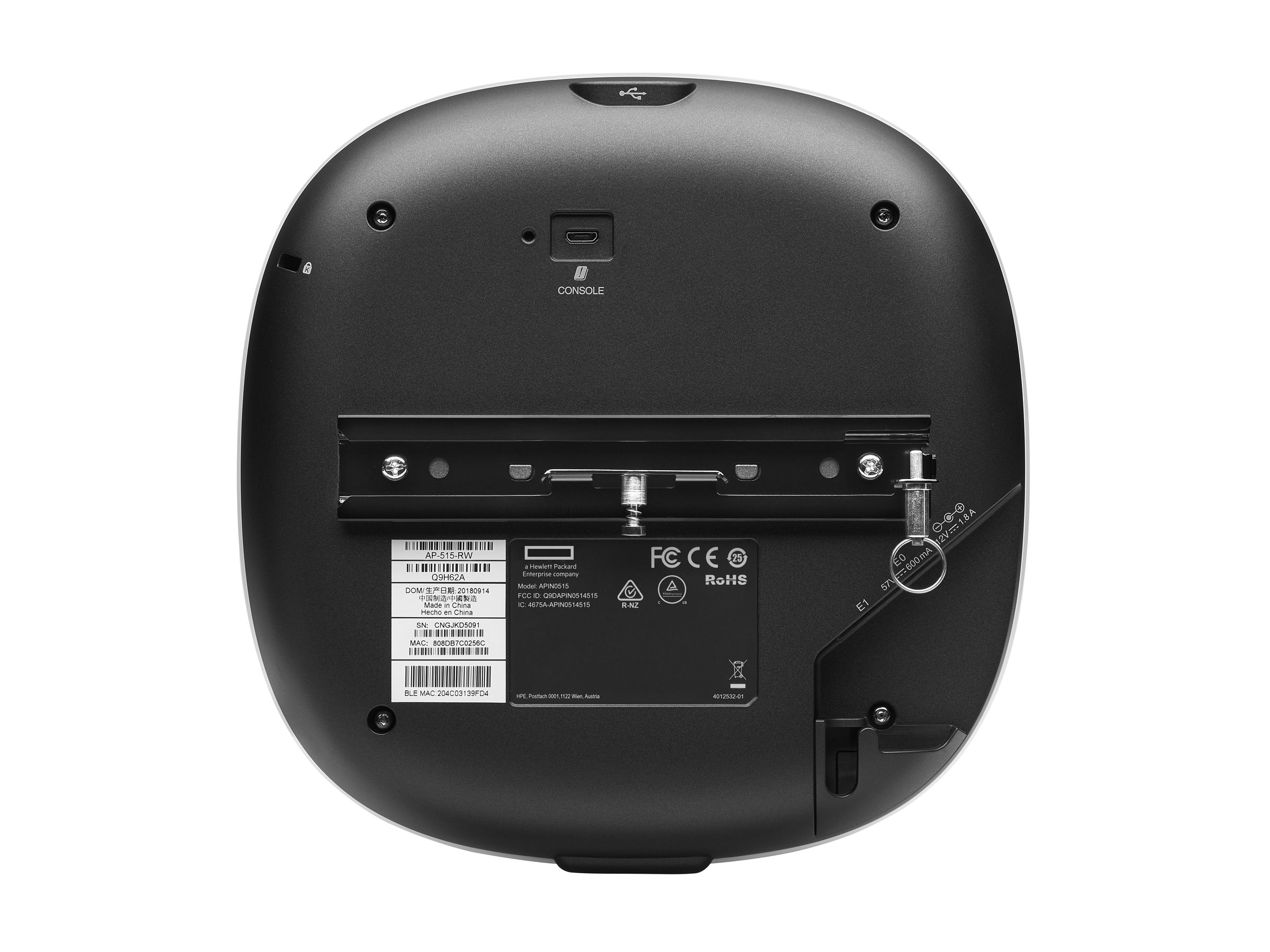

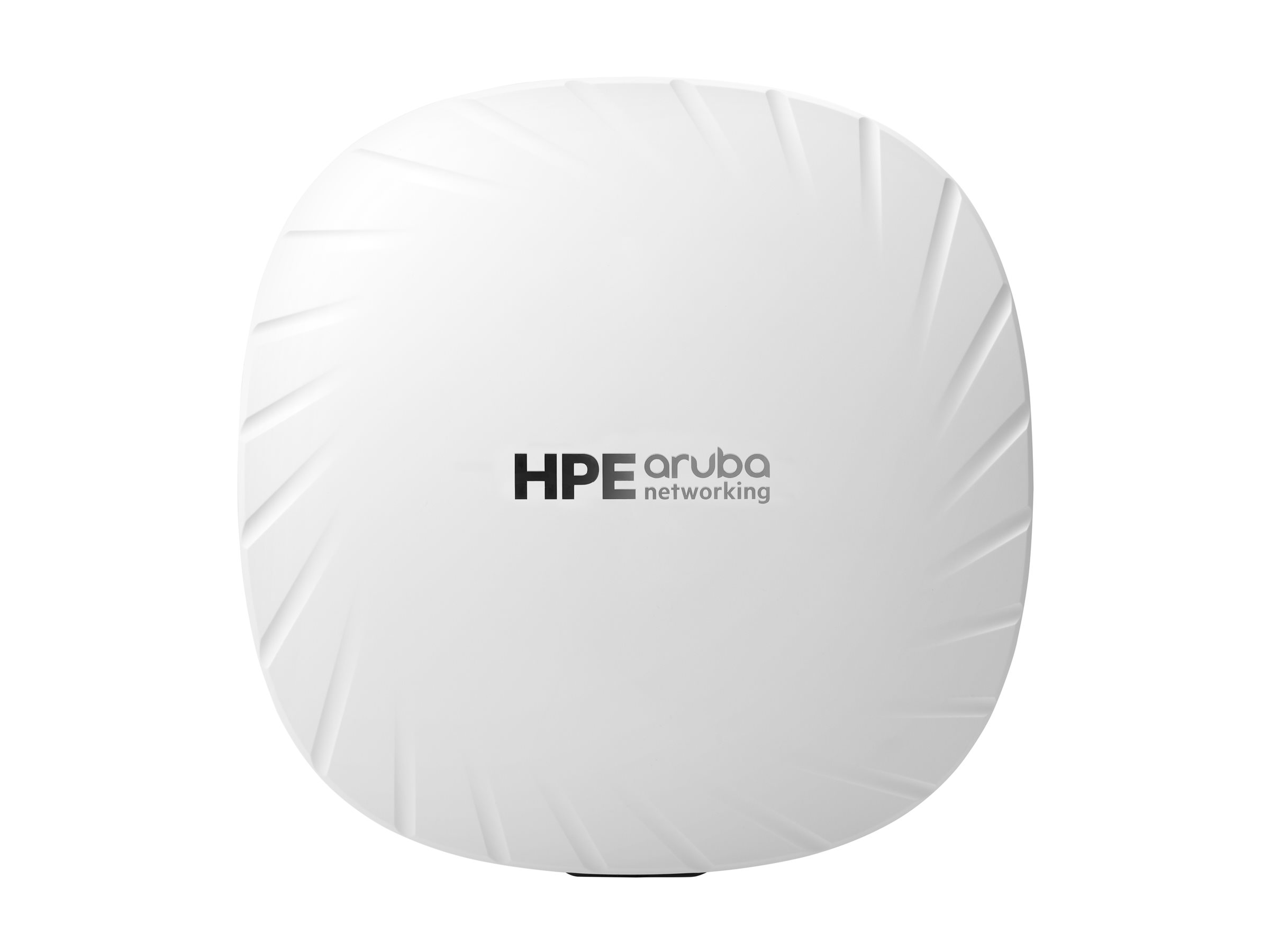

HPE Aruba Networking AP-515 (ID)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE Aruba Networking AP-515 (ID)
- Campus
- wireless access point
- Wi-Fi 6
- Bluetooth
- 2.4 GHz, 5 GHz
- BTO
- wall / ceiling mountable
| Additional Details | |
|---|---|
| Mfr Part #: | S5D86A |
| SHI Part #: | 50121159 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | HPE Aruba Networking AP-515 (ID) - Campus - wireless access point - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - BTO - wall / ceiling mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 4.6 cm |
| Dimensions & Weight / Weight | 810 g |
| Dimensions & Weight / Width | 20 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 4.8 Gbps |
| Networking / Form Factor | Wall / ceiling mountable |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 22 cm |
| Shipping Height | 7.2 cm |
| Shipping Weight | 1.01 kg |
| Shipping Width | 23 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 20 cm |
| Device Type | Wireless access point |
| Height | 4.6 cm |
| Ruggedized Design | Indoor |
| Weight | 810 g |
| Width | 20 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, EN 60601-1-1, EN60601-1-2, UL 2043, ETS 300 019 Class 1.2, ETS 300 019 Class 2.3, ETS 300 019 Class 3.2 |
| MTBF | 64 years |
| Pricing Type | BTO |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.11ax |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0 |
| Data Transfer Rate | 4.8 Gbps |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Form Factor | Wall / ceiling mountable |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Performance |
|
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Status Indicators | System, status |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
