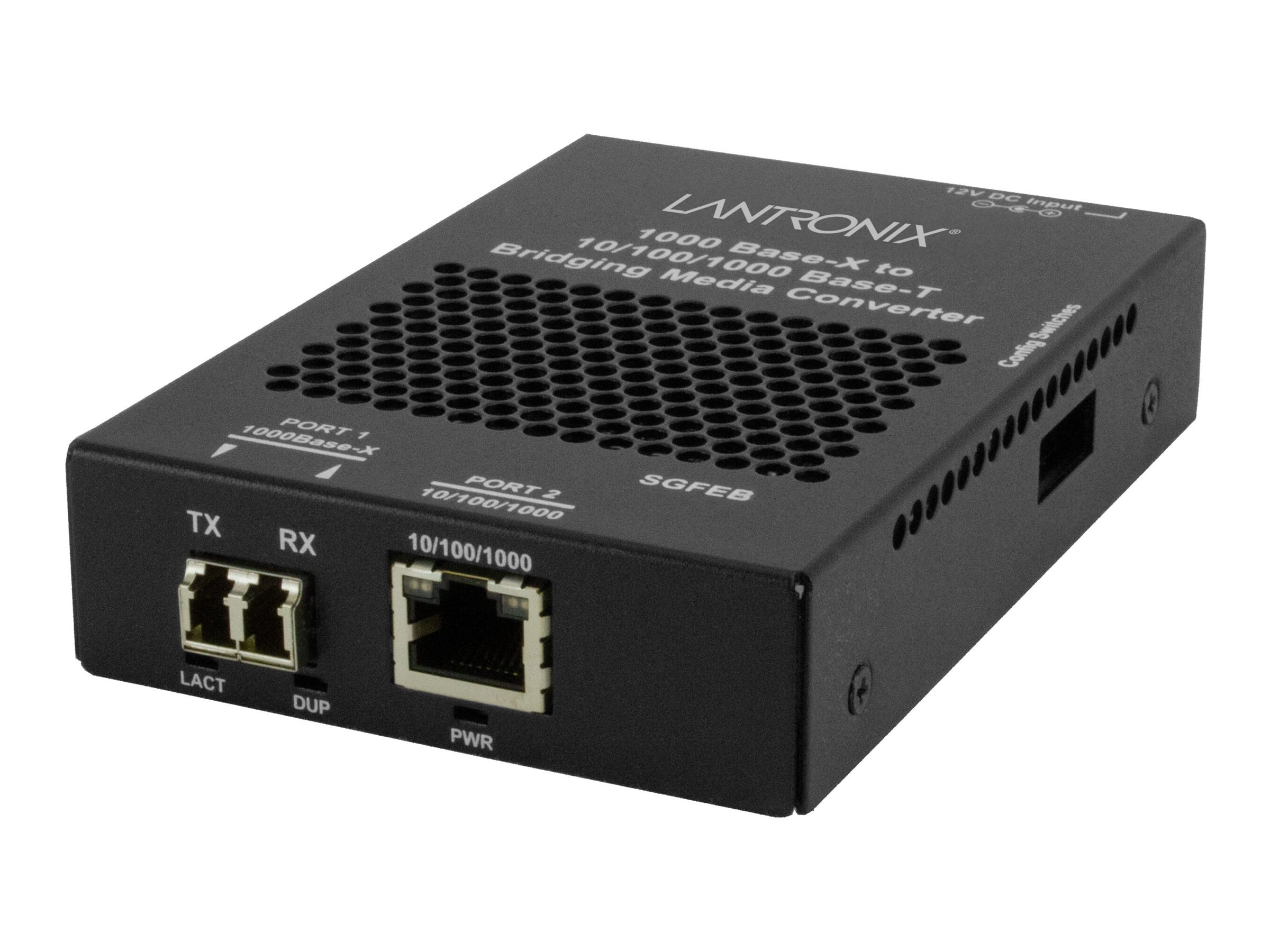

Lantronix SGFEB Series
MSRP$605.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix SGFEB Series
- Fiber media converter
- 1GbE
- 10/100/1000Base-T, 1000Base-SX
- RJ-45 / LC multi-mode
- up to 550 m
- 850 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $605.00 |
| Mfr Part #: | SGFEB1039-130-OZ |
| SHI Part #: | 50060347 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix SGFEB Series - Fiber media converter - 1GbE - 10/100/1000Base-T, 1000Base-SX - RJ-45 / LC multi-mode - up to 550 m - 850 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $605.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.2 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 8.2 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | Australia |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 12.2 cm |
| Height | 2.5 cm |
| Weight | 900 g |
| Width | 8.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Australia |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 55022 Class A, EN55024, FCC Class A certified, UL 60950, CSA, NDAA |
| Included Accessories | Power adapter |
| MTBF | 687,500 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10/100/1000Base-T, 1000Base-SX |
| Compliant Standards | IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | 8 dB link budget, 62.5/125µm core size, 50/125µm core size, auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Pass-Through, Remote-Fault-Detection (RFD), Jumbo Frames support (up to 10260 bytes), Far End Fault (FEF) |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Power | |
| Power Consumption Operational | 2.2 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 7.5 - 24 V |
