Transition Networks Hardened SISPM1040-384-LRT-C
MSRP$3,007.80
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

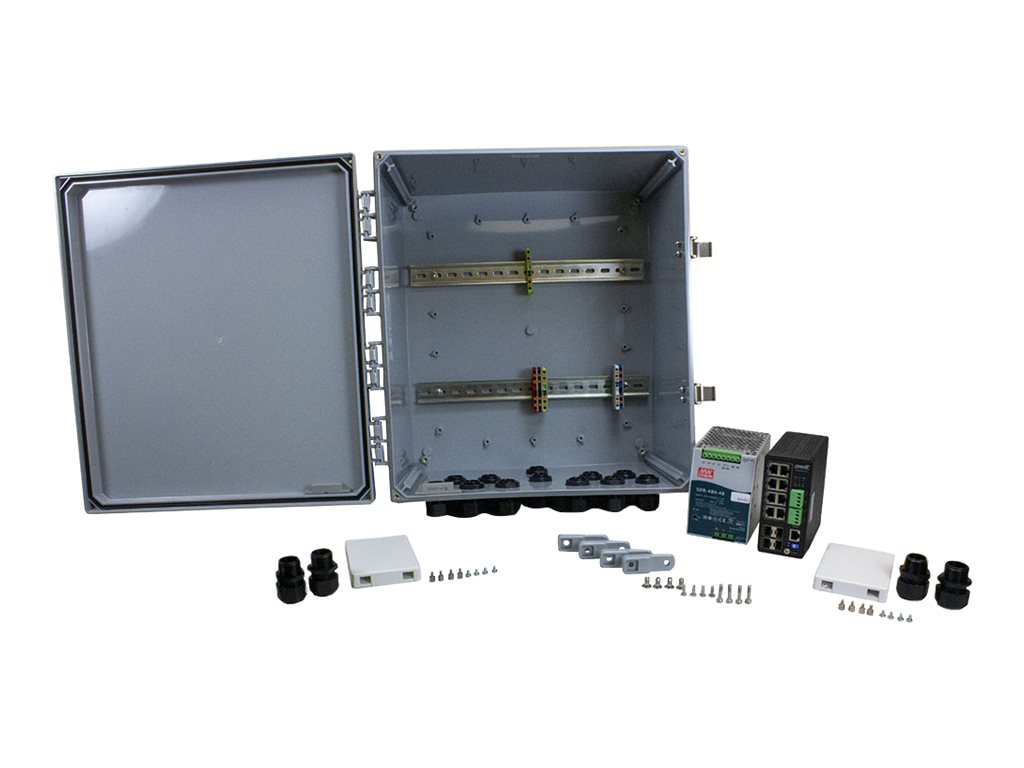

Transition Networks Hardened SISPM1040-384-LRT-C
- Switch
- managed
- 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X
- DIN rail mountable, wall-mountable
- PoE+ (240 W)
- AC 120/230 V / DC 124
- 370 V
- with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Power Supply 25160, 2 x Fiber Management Kit SESPM-4P-FMKIT
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,007.80 |
| Mfr Part #: | OCA-1AA200 |
| SHI Part #: | 50060299 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Transition Networks Hardened SISPM1040-384-LRT-C - Switch - managed - 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X - DIN rail mountable, wall-mountable - PoE+ (240 W) - AC 120/230 V / DC 124 - 370 V - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Power Supply 25160, 2 x Fiber Management Kit SESPM-4P-FMKIT |
| Manufacturer | Lantronix |
| MSRP | $3,007.80 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.5 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 1 kg |
| Dimensions & Weight / Width | 6.2 cm |
| Header / Brand | Transition Networks |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 13.5 cm |
| Height | 13 cm |
| Weight | 1 kg |
| Width | 6.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | ITU-T G.8031, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1D, ITU-T Y.1731, ITU-T G.8032 |
| Device Type | Switch - 8 ports - managed - with 1 x Outdoor Cabinet Assembly OCA-P181610,1 x Power Supply 25160, 2 x Fiber Management Kit SESPM-4P-FMKIT |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | DMS, store and forward, ERPS, LLDP support, PTP, port mirroring, APR, port configuration, temperature sensor, VLAN Double Tagging (Q-in-Q), GVRP, Voice VLAN, PVE, VLAN management, MAC based VLAN, ACL support, DSCP support, loop prevention, QoS, SP, WRR, IPv4 support, IPv6 support, DSCP based CoS, DiffServ support, Port Security, IP source guard, Syslog support, DHCP client, DHCP server, DHCP relay, MRP, built-in DIP switch, reset button |
| Jumbo Frame Support | 9.6KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching bandwidth: 24 Gbps |
| PoE Budget | 240 W |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | RADIUS, TACACS+, HTTPS, SSH, SSH-2, DHCP, ICMP, SNMP 1, SNMP 2c, SNMP 3, Telnet, CLI |
| Routing Protocol | Static IP routing |
| Status Indicators | System, power 1, ring master, coupling, power 2, alarm, port status |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEEE 1588v2, IEC 62439-2, IP30, FCC Part 15, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6, NEMA TS-2, IEC 60950-1, UL Class 1 Division 2, EN 50155, EN 50121-4, DNV, IEC 61850-3, IEEE 1613 |
| Included Accessories | DIN-rail bracket, wall mounting kit |
| Power | |
| Voltage Required | AC 120/230 V / DC 124 - 370 V |
