Lantronix M/GE-ISW Series
MSRP$424.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

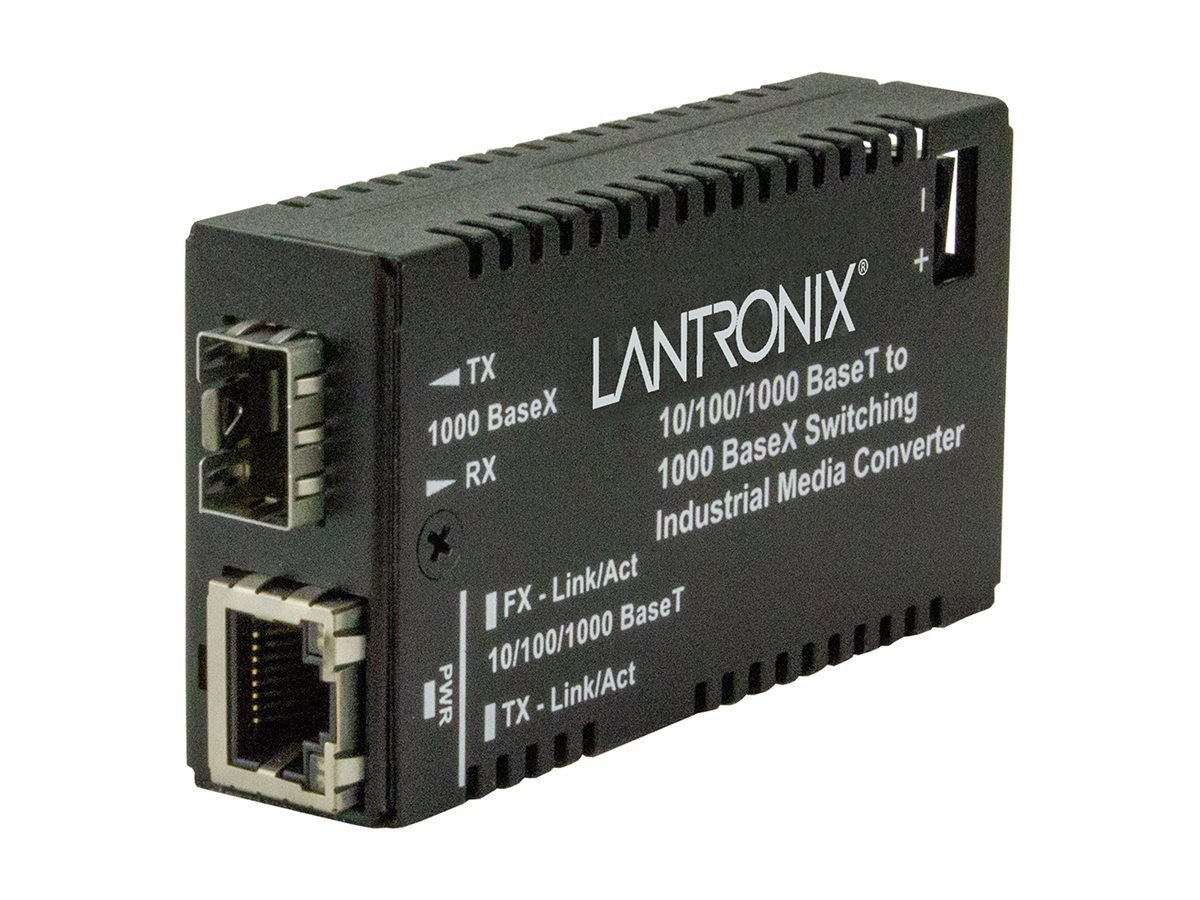

Lantronix M/GE-ISW Series
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
- RJ-45 / LC multi-mode
- TAA Compliant
- for Lantronix M/GE-ISW-SFP-01-PD, M/GE-PSW-PSE-01
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $424.00 |
| Mfr Part #: | M/GE-ISW-SFP-01 |
| SHI Part #: | 50060257 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix M/GE-ISW Series - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / LC multi-mode - TAA Compliant - for Lantronix M/GE-ISW-SFP-01-PD, M/GE-PSW-PSE-01 |
| Manufacturer | Lantronix |
| MSRP | $424.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.5 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Weight | 180 g |
| Dimensions & Weight / Width | 4.6 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Compatibility Information | |
| Designed For | Lantronix M/GE-ISW-SFP-01-PD, M/GE-PSW-PSE-01 |
| Dimensions & Weight | |
| Depth | 8.5 cm |
| Height | 2.2 cm |
| Weight | 180 g |
| Width | 4.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, IP20, FCC Class A certified, CISPR 22, EN 55022 Class A, EN 55034 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Hardened, mini size, 8 dB link budget, Jumbo Frames support (up to 10240 bytes), auto-negotiation, full duplex mode, auto-uplink (auto MDI/MDI-X), Active Link Pass Through function (ALPT), over-current protection, reverse polarity protection |
| Status Indicators | Power, link/activity |
| Power | |
| Power Consumption Operational | 1.2 Watt |
