Lantronix C3210 Series
MSRP$528.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

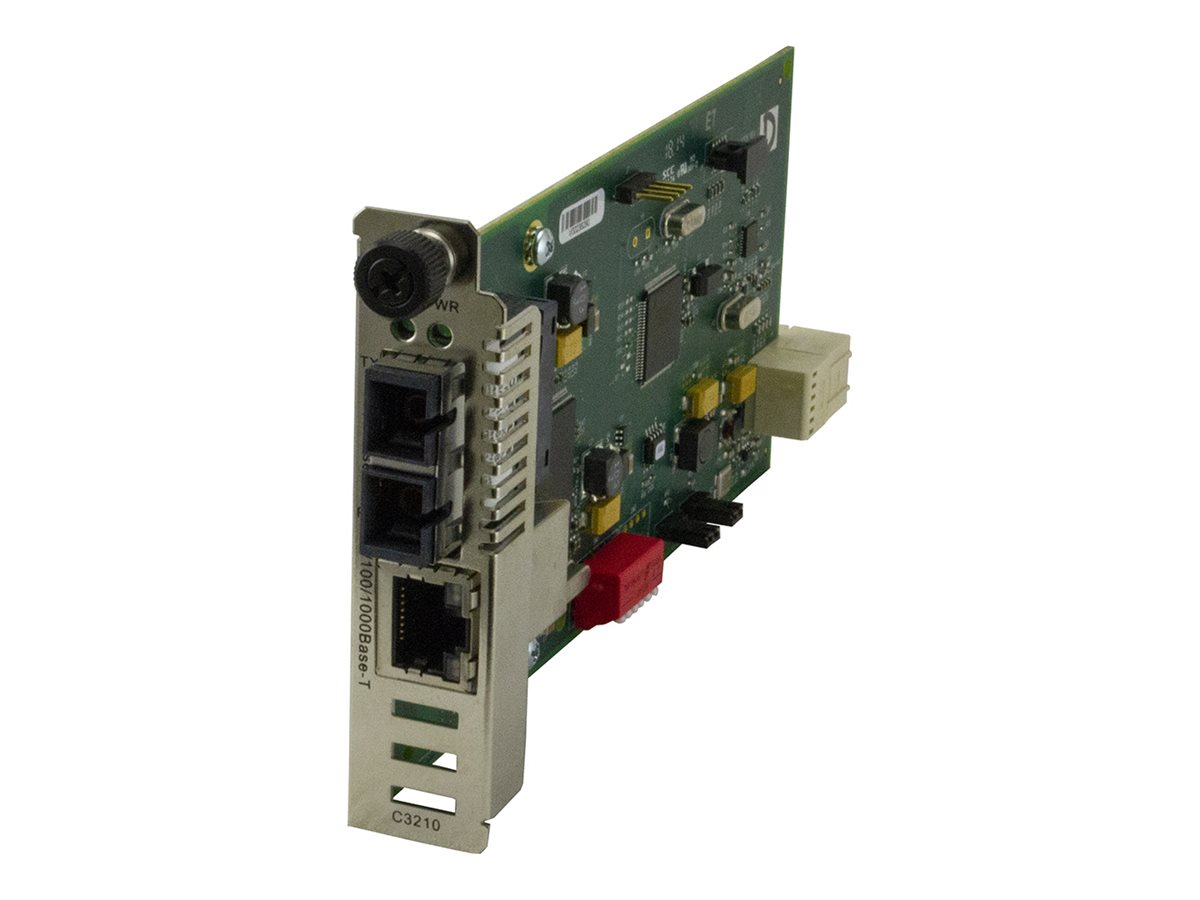

Lantronix C3210 Series
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX
- RJ-45 / SC multi-mode
- up to 550 m
- 850 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $528.00 |
| Mfr Part #: | C3210-1013 |
| SHI Part #: | 50060204 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix C3210 Series - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX - RJ-45 / SC multi-mode - up to 550 m - 850 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $528.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 450 g |
| Dimensions & Weight / Width | 2.2 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 8.6 cm |
| Weight | 450 g |
| Width | 2.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, CISPR, EN 55022 Class A, FCC Class A certified, EN55024, EN 61000, SFF-8472 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | 8.5 dB link budget, up to 10,240 bytes frame size, auto-uplink (auto MDI/MDI-X), auto-negotiation, Link Pass-Through, LED status indicators, switch selectable speeds, Remote Fault Notification (RFN), pause mode, Automatic Link Restoration, IPv4 support, IPv6 support, DiffServ support, ToS, firmware upgradable, Unidirectional Data Flow, Digital Diagnostic Function (DMI), RMON statistic counter |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Remote Management Protocol | RMON |
| Status Indicators | Power, fiber, fiber duplex, link/activity |
| Power | |
| Power Consumption Operational | 3.6 Watt |
