Lantronix LM Series LM83X
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

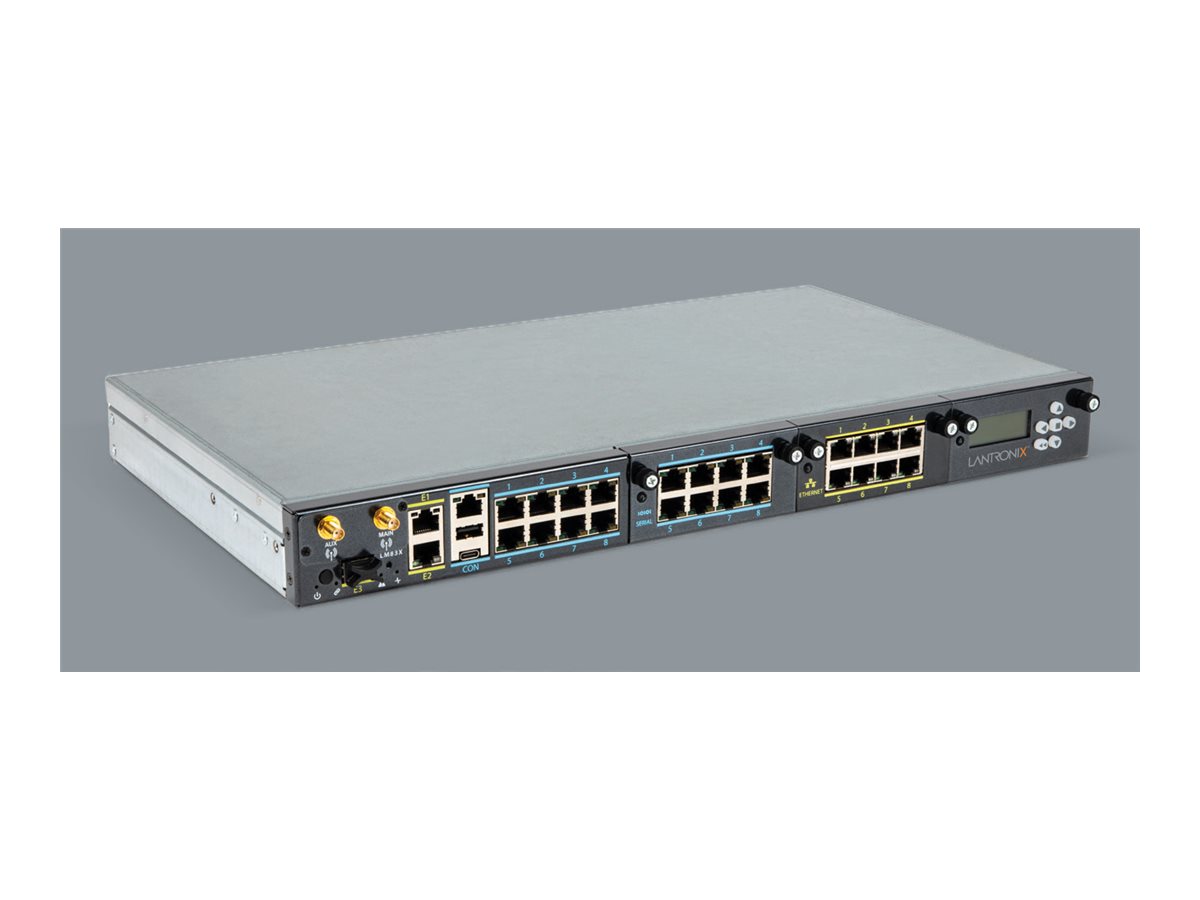

Lantronix LM Series LM83X
- Console server
- 16 ports
- 1GbE, RS-232
- 1U
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 83X-16E-EE4-NAA |
| SHI Part #: | 50060182 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Lantronix LM Series LM83X - Console server - 16 ports - 1GbE, RS-232 - 1U - rack-mountable - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $5,635.12 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.4 cm |
| Dimensions & Weight / Height | 4.32 cm |
| Dimensions & Weight / Weight | 3.72 kg |
| Dimensions & Weight / Width | 44.5 cm |
| Header / Brand | Lantronix |
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 16 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 3 expansion slot |
| Interfaces |
|
| General | |
| Built-in Devices | Keypad, status LCD |
| Depth | 26.4 cm |
| Device Type | Console server |
| Height | 4.32 cm |
| Height (Rack Units) | 1U |
| Weight | 3.72 kg |
| Width | 44.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-A cable |
| Compliant Standards | FCC Part 15 B Class A, TUV, RoHS, OPAL 2.0, NDAA |
| Included Accessories | Rack mount kit, 2 rack mounting ears, 4 x screws |
| TAA Compliant | Yes |
| Networking | |
| Authentication Method | Secure Shell v.2 (SSH2), TACACS, RADIUS |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Encryption Algorithm | 256-bit AES |
| Features | Failover support, scalable, Smart Out-of-Band, Zero-Touch Deployment, Point-to-Point Protocol (PPP), VPN support |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | NTP, DNS, DHCP |
| Ports Qty | 16 |
| Power | |
| Installed Qty | 2 |
| Power Consumption Operational | 60 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 256 GB x 1 - PCI Express (NVMe) - NVMe |
| Software / System Requirements | |
| OS Provided | Lantronix Control Center |
