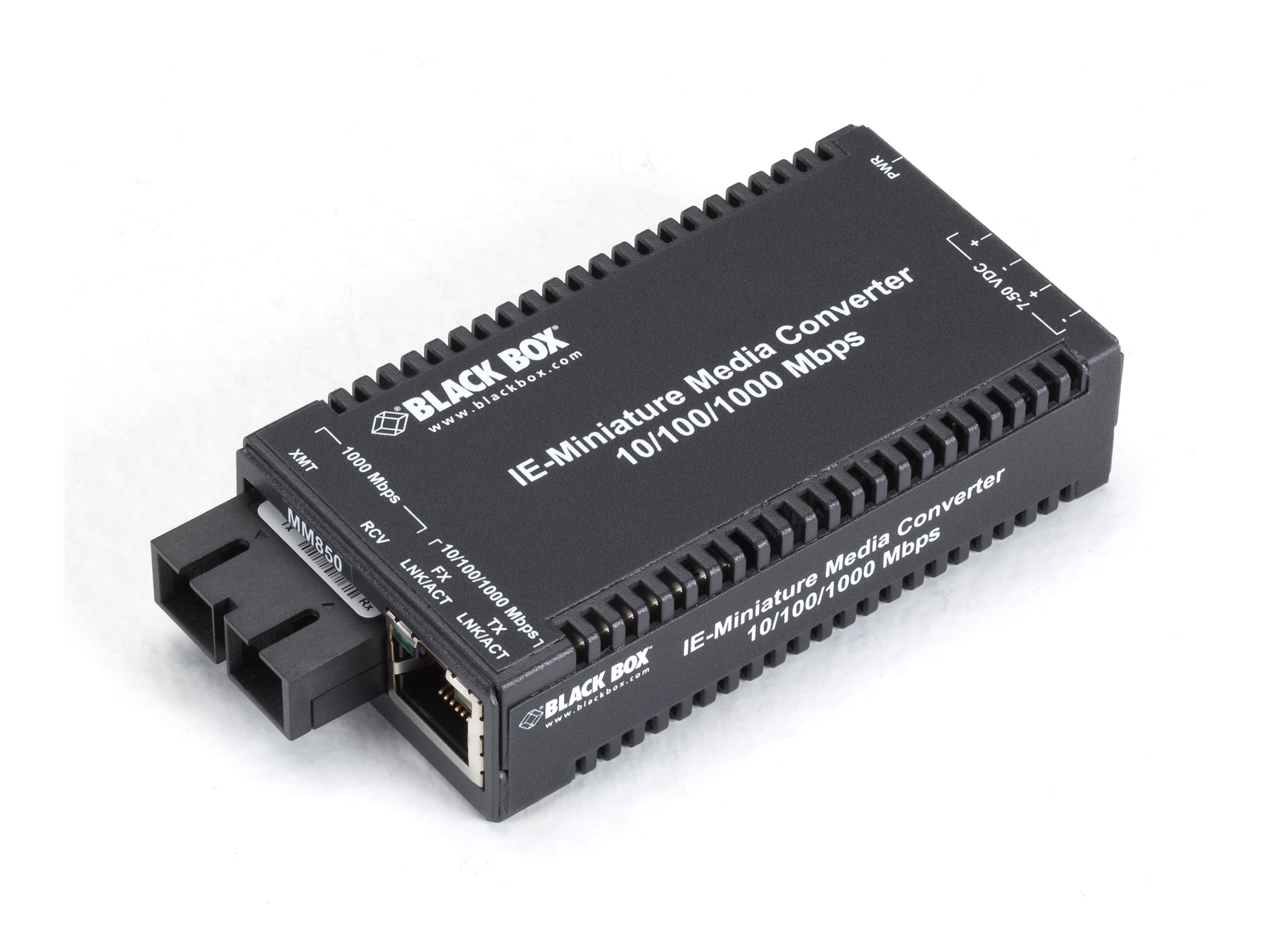

Black Box MultiPower Miniature
MSRP$777.54
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box MultiPower Miniature
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 1000Base-LX
- RJ-45 / SC multi-mode
- up to 300 m
- 850 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $777.54 |
| Mfr Part #: | LGC320A-R5 |
| SHI Part #: | 49991298 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box MultiPower Miniature - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 1000Base-LX - RJ-45 / SC multi-mode - up to 300 m - 850 nm - TAA Compliant |
| Manufacturer | Black Box |
| MSRP | $777.54 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.509 cm |
| Dimensions & Weight / Height | 2.108 cm |
| Dimensions & Weight / Weight | 318 g |
| Dimensions & Weight / Width | 4.572 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 8.509 cm |
| Height | 2.108 cm |
| Weight | 318 g |
| Width | 4.572 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN 62368, RoHS |
| Included Accessories | DIN-rail clip |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 1000Base-LX |
| Compliant Standards | IEEE 802.3af, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Rugged, Link Fault Pass-Through (LFPT) support, temperature hardened, auto-uplink (auto MDI/MDI-X), Store-and-forward technology, Auto Negotiation, broadcast storm protection, Jumbo Frames support (up to 1916 bytes), metal housing |
| Max Transfer Distance | 300 m |
| Optical Wave Length | 850 nm |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
