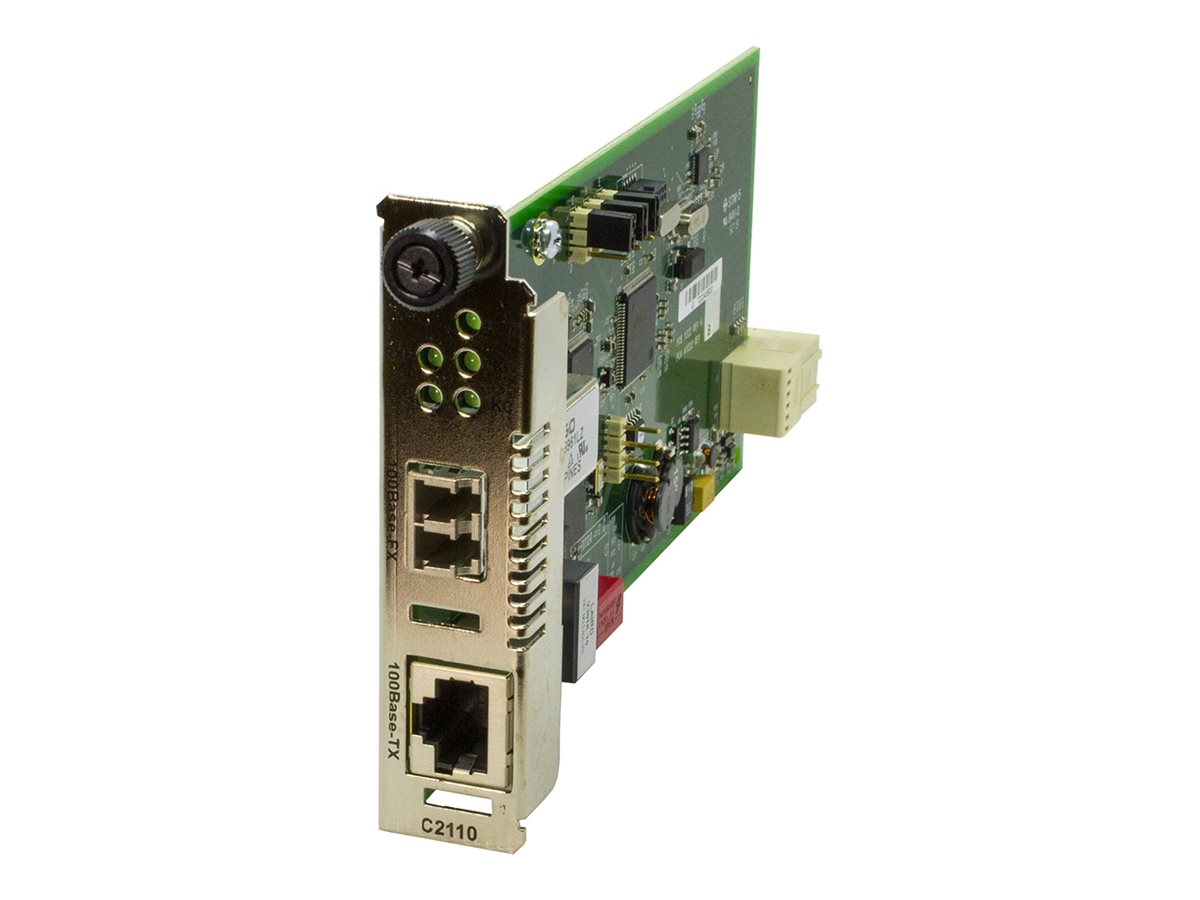

Lantronix ION C2110 Series
MSRP$351.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix ION C2110 Series
- Fiber media converter
- 100Mb LAN, 100Mb LAN (optical)
- 100Base-TX, 100Base-FX, 10Base-T
- RJ-45 / LC multi-mode
- up to 2 km
- 1300 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $351.00 |
| Mfr Part #: | C2110-1039 |
| SHI Part #: | 49912034 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix ION C2110 Series - Fiber media converter - 100Mb LAN, 100Mb LAN (optical) - 100Base-TX, 100Base-FX, 10Base-T - RJ-45 / LC multi-mode - up to 2 km - 1300 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $351.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 450 g |
| Dimensions & Weight / Width | 2.2 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 8.6 cm |
| Weight | 450 g |
| Width | 2.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MIL-HDBK-217F, NDAA, CISPR 22 Class A, EN 55022 Class A, FCC Class A certified |
| MTBF | 667,500 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 100Base-TX, 100Base-FX, 10Base-T |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, 100Mb LAN (optical), 10Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | 11 dB link budget, auto-negotiation, Link Pass-Through, Far End Fault (FEF), auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Automatic Link Restoration, pause mode, 100 m transmission distance on RJ-45 |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1300 nm |
| Status Indicators | Power, link/activity |
| Power | |
| Power Consumption Operational | 2.7 Watt |
