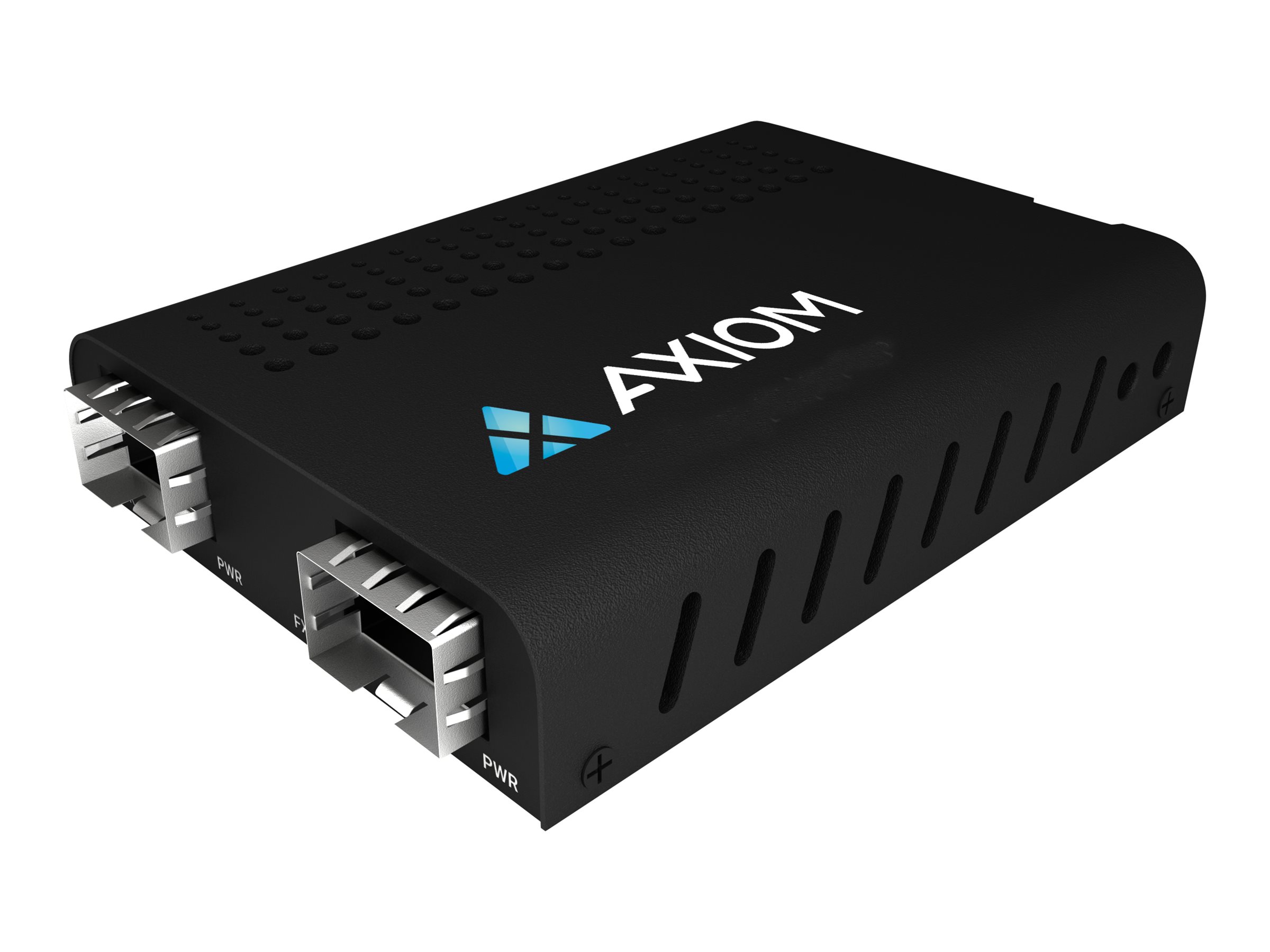

Axiom Mini - Media converter
MSRP$2,120.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom Mini - Media converter
- 10 GigE optical, GigE (optical), OTU1, OTU1e, OTU2, OTU2e, OBSAI, CPRI, SDH
- 10GBase-ER, 10GBase-LR, 10GBase-LRM, 10GBase-SR, 10GBase-ZR
- SFP+ / SFP+
- up to 120 km
- 850 nm / 1310 nm / 1550 nm
- 1U
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,120.00 |
| Mfr Part #: | AXG100819 |
| SHI Part #: | 49835100 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Axiom Mini - Media converter - 10 GigE optical, GigE (optical), OTU1, OTU1e, OTU2, OTU2e, OBSAI, CPRI, SDH - 10GBase-ER, 10GBase-LR, 10GBase-LRM, 10GBase-SR, 10GBase-ZR - SFP+ / SFP+ - up to 120 km - 850 nm / 1310 nm / 1550 nm - 1U - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $2,120.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Form Factor | Desktop / rack mountable |
| Networking / Type | Media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Media converter |
| Form Factor | Desktop / rack mountable - 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 50,000 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10GBase-ER, 10GBase-LR, 10GBase-LRM, 10GBase-SR, 10GBase-ZR |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 GigE optical, GigE (optical), OTU1, OTU1e, OTU2, OTU2e, OBSAI, CPRI, SDH |
| Data Transfer Rate | 10 Gbps |
| Features | Jumbo Frames support, DWDM, CWDM, Digital Optical Monitoring (DOM) support, Optical - Electrical - Optical (OEO) wavelength conversion, repeating mode, 3R signal regeneration (Re-amplifying, Re-shaping, Re-timing), passive cooling |
| Max Transfer Distance | 120 km |
| Optical Wave Length | 850 nm / 1310 nm / 1550 nm |
| Status Indicators | Status |
| Power | |
| Power Consumption Operational | 7 Watt |
| Power Device | External power adapter (not included) |
