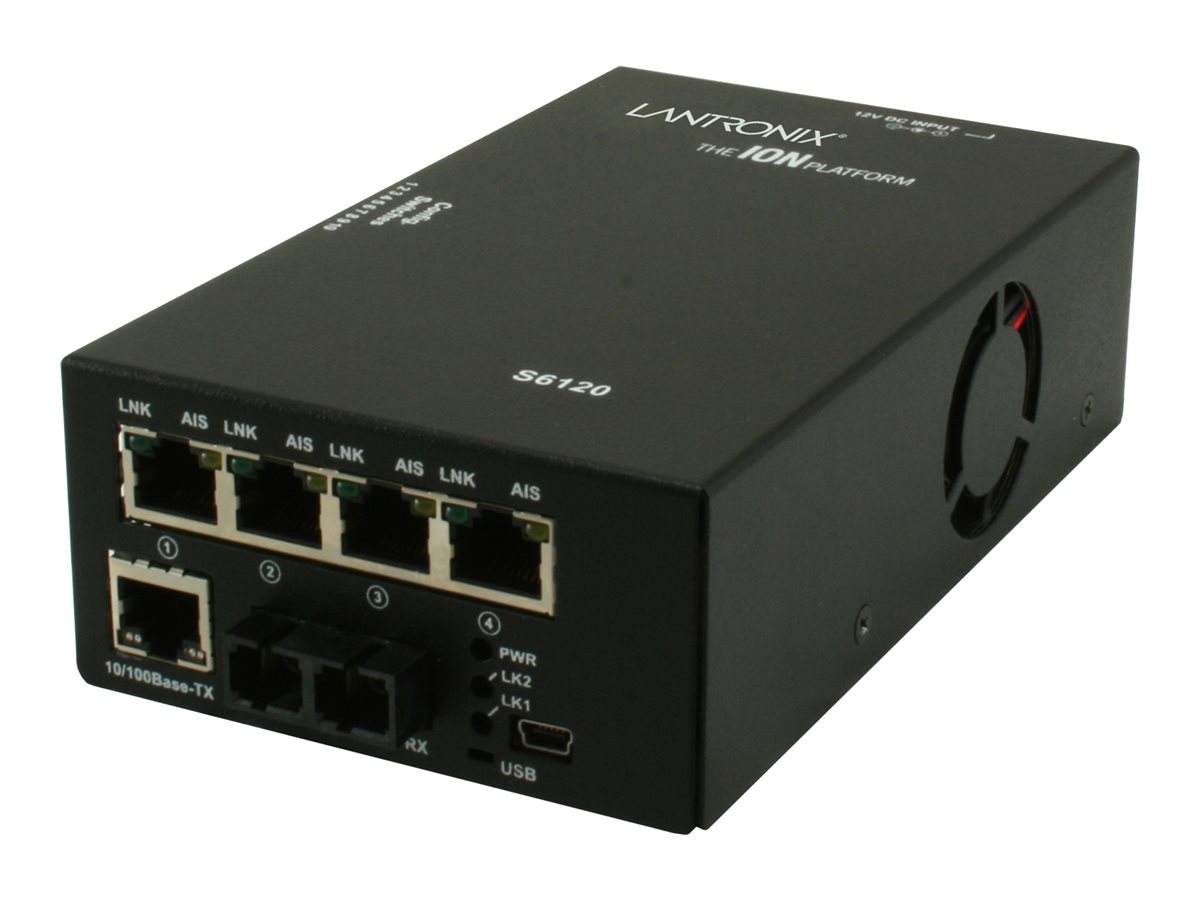

Lantronix ION S6120 Series
MSRP$1,249.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix ION S6120 Series
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-TX
- SC multi-mode / 4 x RJ-48, RJ-45
- up to 2 km
- T-1/E-1/J-1
- 1300 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,249.00 |
| Mfr Part #: | S6120-1013-EU |
| SHI Part #: | 49657219 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix ION S6120 Series - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX - SC multi-mode / 4 x RJ-48, RJ-45 - up to 2 km - T-1/E-1/J-1 - 1300 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,249.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 4.6 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 9.4 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | Europe |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 4.6 cm |
| Weight | 900 g |
| Width | 9.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, ITU I.431, ETSI 300-166, ETSI 300-233, TBR12, TBR13, EN 55022 Class A, EN55024 |
| MTBF | 114,580 hours |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX |
| Compliant Standards | IEEE 802.3, ANSI T1.408 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Features | Loopback, auto-uplink (auto MDI/MDI-X), pause mode, AIS(Alarm Indication Signal), remote firmware upgrade, remote device management, extended temperature range, flow control, 11 dB link budget |
| Framing Format | ANSI T1.102, ANSI T1.403, G.703, G.736, G.775, G.823 |
| Line Rate | T-1/E-1/J-1 |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1300 nm |
| Status Indicators | Power, port status |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
