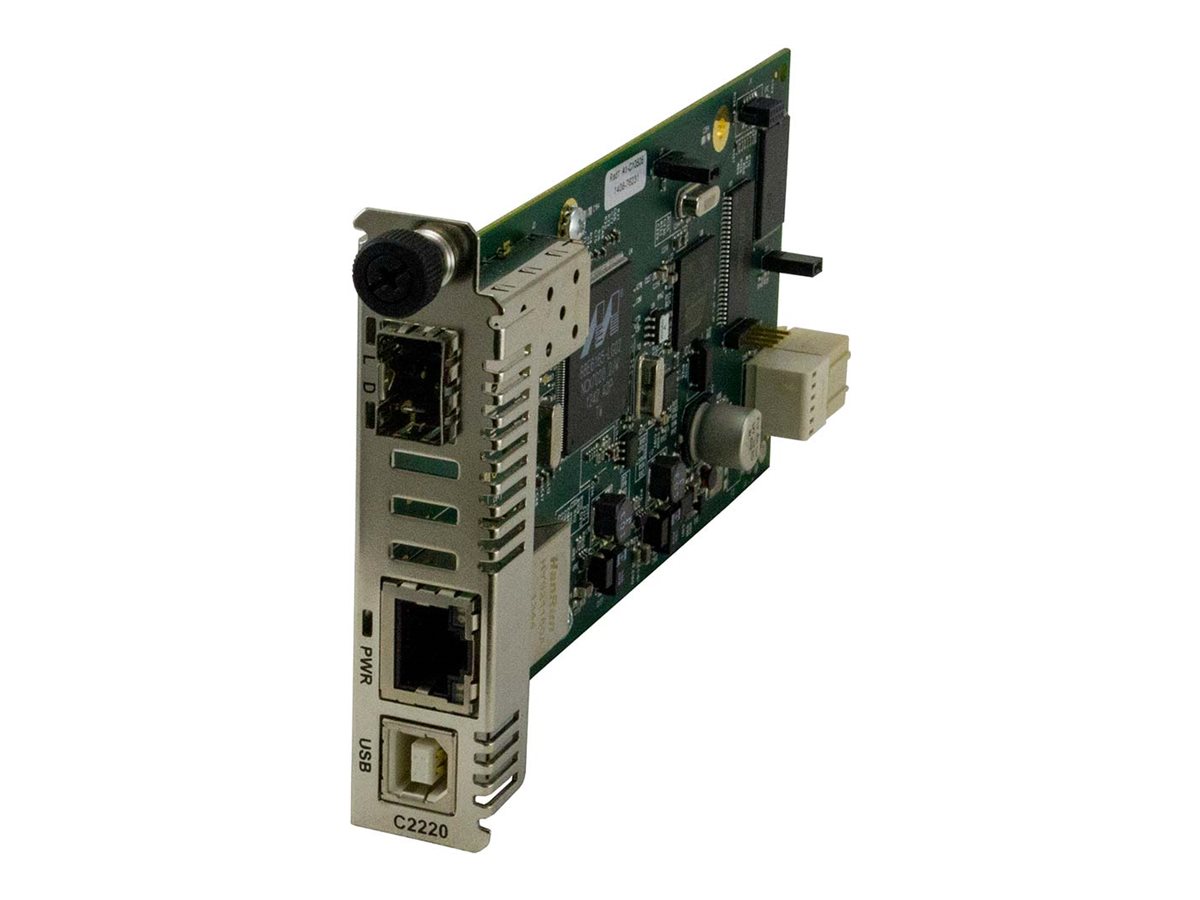

Lantronix ION C2220 Series
MSRP$1,036.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix ION C2220 Series
- Fiber media converter
- 10Base-T, 100Base-TX, 1000Base-T, 100Base-FX
- RJ-45 / SC
- up to 20 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,036.00 |
| Mfr Part #: | C2220-1014 |
| SHI Part #: | 49650487 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix ION C2220 Series - Fiber media converter - 10Base-T, 100Base-TX, 1000Base-T, 100Base-FX - RJ-45 / SC - up to 20 km - 1310 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,036.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Width | 8.6 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 2.2 cm |
| Width | 8.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 55022 Class A, EN55024, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 100Base-FX |
| Compliant Standards | MEF 9, MEF 14, MEF 21, IEEE 802.1ah, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, pause mode, Link Pass-Through, Far End Fault (FEF), remote loopback, SNTP client, RMON statistic counter, Digital Diagnostic Function (DMI), Cable Diagnostics Function, web-based management, VLAN management |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | SSH, Telnet, CLI, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, RMON, RADIUS, TFTP, DHCP |
| Power | |
| Power Consumption Operational | 4.5 Watt |
