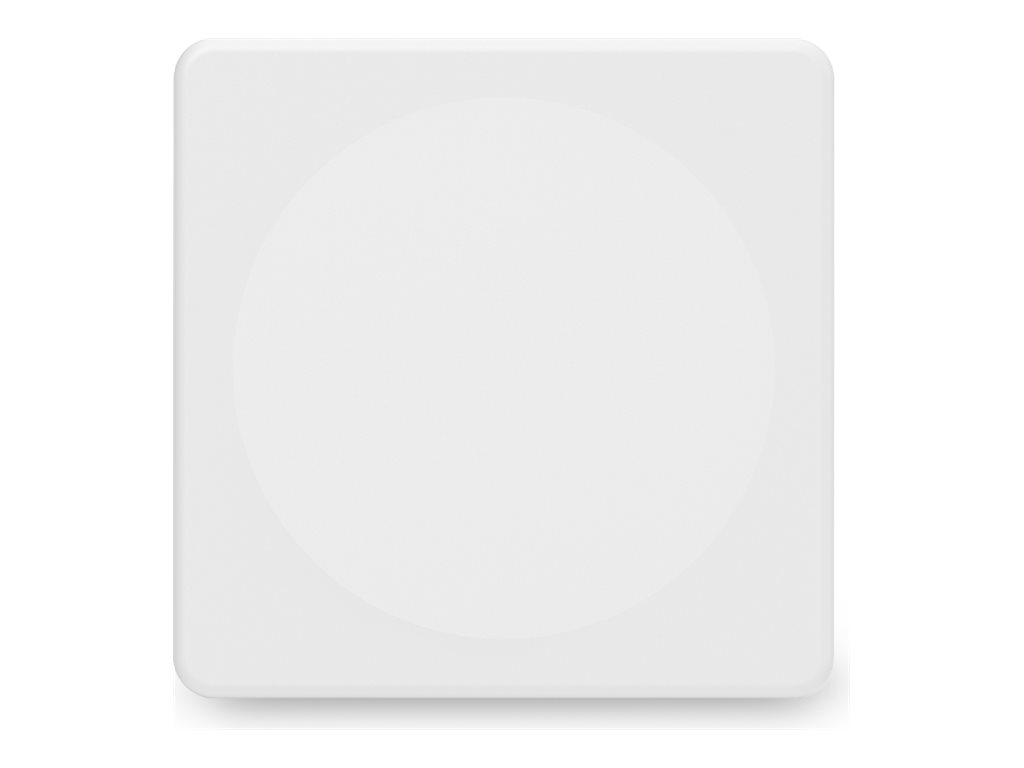

EnGenius EOC655-C23 - Wireless access point
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
EnGenius EOC655-C23 - Wireless access point
- outdoor, dual radio, 2x2, with 23 dBi panel antenna
- 2 ports
- 1GbE, 2.5GbE
- Wi-Fi 6
- 2.4 GHz, 5 GHz
- pole mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EOC655-C23 |
| SHI Part #: | 49492151 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | EnGenius |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | EnGenius EOC655-C23 - Wireless access point - outdoor, dual radio, 2x2, with 23 dBi panel antenna - 2 ports - 1GbE, 2.5GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - pole mountable |
| Manufacturer | EnGenius |
| MSRP | $1,299.00 |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.5 cm |
| Dimensions & Weight / Height | 8.2 cm |
| Dimensions & Weight / Weight | 1.91 kg |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | EnGenius |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Pole mountable |
| Networking / Ports Qty | 2 |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Gain Level | 23 dBi |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | 8GB eMMC, GPS |
| Depth | 30.5 cm |
| Device Type | Wireless access point |
| Height | 8.2 cm |
| Ruggedized Design | Outdoor |
| Weight | 1.91 kg |
| Width | 30.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CB, RoHS, FCC, IC, UKCA, IP67, WEEE |
| Included Accessories | PoE injector, pole mount brackets, AC adapter cable |
| MTBF | 100,000 hours |
| Networking | |
| Capacity | Maximum subscribers: 16 |
| Communication Mode | Full-duplex, half-duplex |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3at |
| Connectivity Technology | Wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Encryption Algorithm | 256-bit AES |
| Features | 2x2:2 streams, Cat 5e, Cat 6, 6KV PoE surge protection, Jumbo Frames support (up to 9000 bytes), spectrum analyzer, Dynamic Channel Selection (DCS), Automatic Transmit Power Control (ATPC), 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), 200 km/h wind survival, 5GHz channel spacing, auto channel selection, Auto Negotiation, background scan based, bridge mode, DHCP server, traffic shaping, VLAN Tagging, link fault management (LFM), NTP server, packet filtering, Q-in-Q tunneling, Dying Gasp support |
| Form Factor | Pole mountable |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM |
| Performance |
|
| Ports Qty | 2 |
| Remote Management Protocol | IPv4, IPv6, HTTP, HTTPS, SSH, TFTP, Syslog, SNMP 1, SNMP 2c, SNMP 3 |
| Spread Spectrum Method | OFDMA |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Processor / Memory / Storage | |
| Flash Memory | 32 MB |
| Processors Installed | Qualcomm A53 1 GHz |
| RAM | 1 GB DDR3 SDRAM |
