Lantronix ION S2220 Series
MSRP$1,058.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

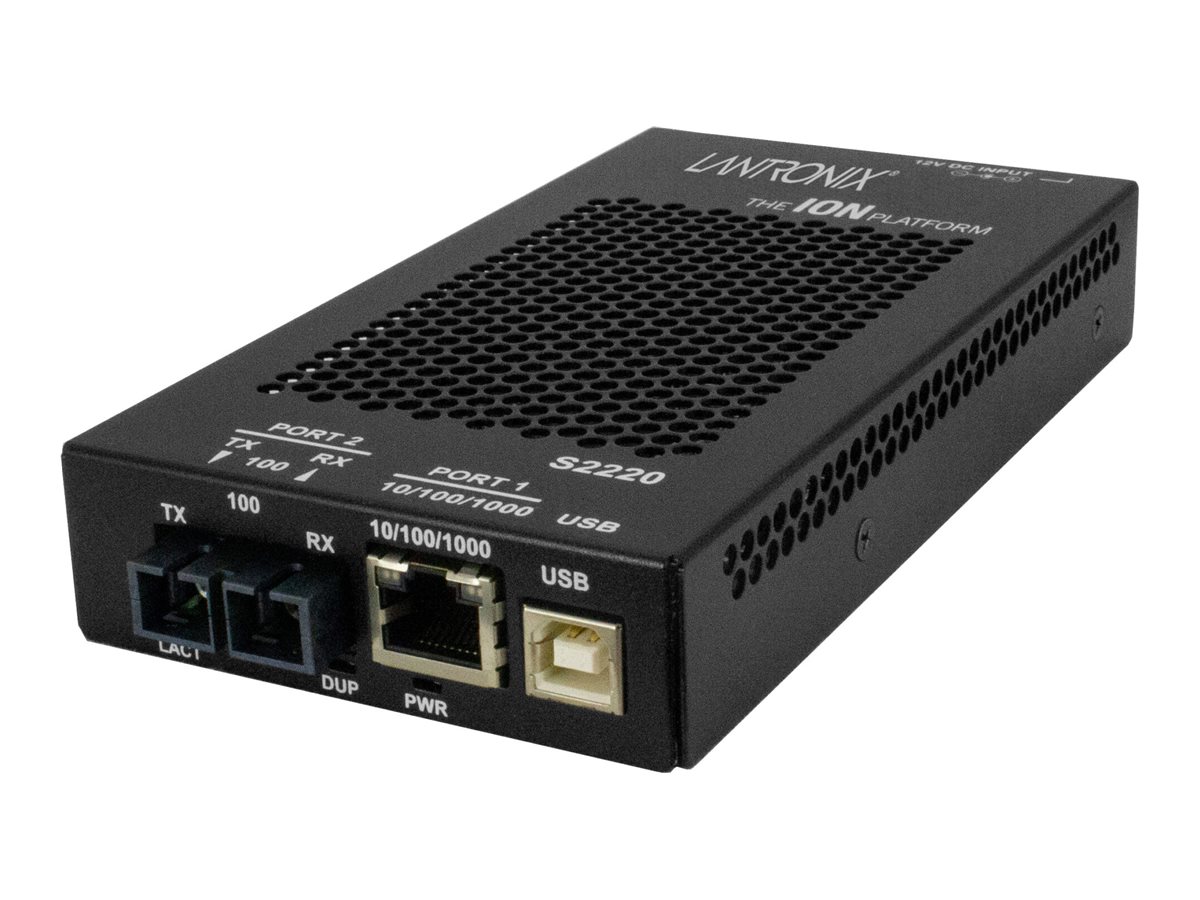

Lantronix ION S2220 Series
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 100Base-LX, 1000Base-T
- RJ-45 / SC single-mode
- up to 10 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,058.00 |
| Mfr Part #: | S2220-1014-EU |
| SHI Part #: | 49461966 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix ION S2220 Series - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 100Base-LX, 1000Base-T - RJ-45 / SC single-mode - up to 10 km - 1310 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,058.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 8.255 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | Europe |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 2.5 cm |
| Weight | 900 g |
| Width | 8.255 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, EN 55022 Class A, EN55024, UL 60950 |
| TAA Compliant | Yes |
| Networking | |
| Authentication Method | RADIUS |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-LX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3ah, IEEE 802.1p, IEEE 802.1Q, MEF 9, MEF 14, MEF 21 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Features | 16 dB link budget, Jumbo Frames support (up to 10240 bytes), auto-uplink (auto MDI/MDI-X), auto-negotiation, pause mode, Link Pass-Through, Far End Fault (FEF), Loopback, firmware upgradable, ToS, DiffServ support, DHCP client, SNTP support, command-line interface (CLI) management, web-based management, VLAN management |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | TFTP, RMON, SSH, Telnet, SNMP 1, SNMP 2c, SNMP 3 |
| Status Indicators | Power, link/activity |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
