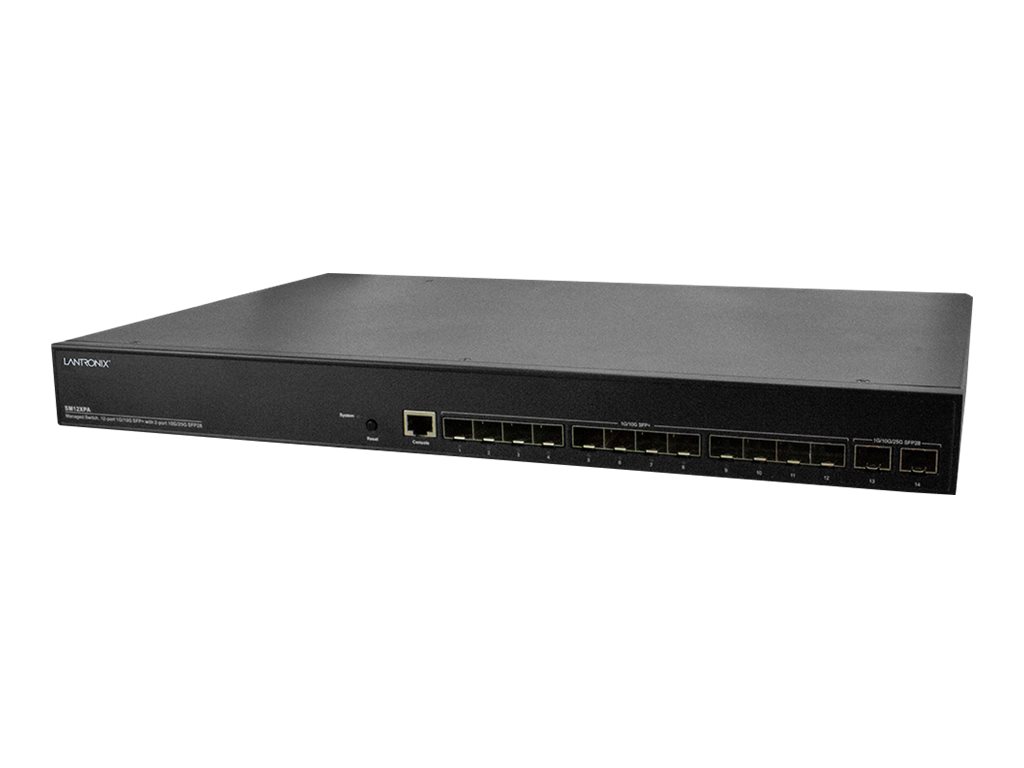

Lantronix SM12XPA - Switch
- L3
- smart
- 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1/10/25 Gigabit SFP28
- desktop
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,854.50 |
| Mfr Part #: | SM12XPA-SA |
| SHI Part #: | 49012838 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Lantronix SM12XPA - Switch - L3 - smart - 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1/10/25 Gigabit SFP28 - desktop - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $2,854.50 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.82 kg |
| Dimensions & Weight / Width | 44.2 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | South Africa |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Desktop |
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 30 cm |
| Height | 4.4 cm |
| Weight | 3.82 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 1588v2, IEEE 802.1ad, IEEE 802.3x, ITU-T G.8031, ITU-T G.8032 |
| Device Type | Switch - 12 ports - L3 - smart |
| Enclosure Type | Desktop |
| Encryption Algorithm | SSL |
| Features | STP support, RSTP support, MSTP support, LACP, MAC based VLAN, PVE, VLAN Double Tagging (Q-in-Q), Voice VLAN, GVRP, DHCP relay, IGMP snooping, IGMP querier, IGMP proxy, MLD snooping, RIP, OSPF, IP source guard, Port Security, Storm Control, DHCP snooping, WRR, DiffServ support, DHCP server, port mirroring, sFlow, LLDP support, DHCP client, Syslog support, PTP, NTP support, loop detection, loop protection, DMS, CSMA/CD, store and forward, UPnP, QoS |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 32K entries |
| Performance | Backplane switching capacity: 340 Gbps |
| Ports | 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1/10/25 Gigabit SFP28 |
| Remote Management Protocol | SSH, SSH-2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TFTP |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IPv4 routing, static IPv6 routing |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x power cable |
| Compliant Standards | NDAA, FCC Class A certified, EN 62368-1, UKCA |
| Localization | South Africa |
| TAA Compliant | Yes |
| Power | |
| Electric Current Required | 4 A |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
