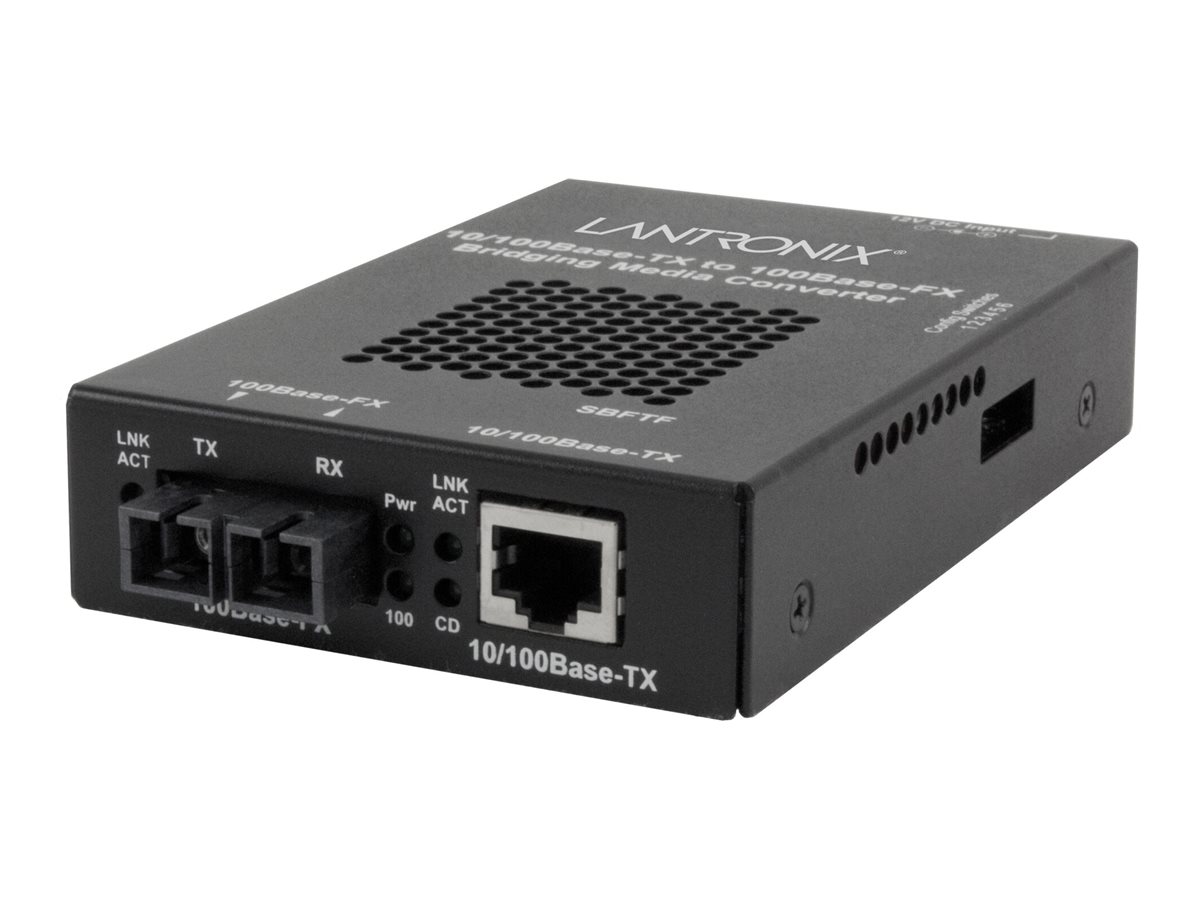

Lantronix SBFTF Series
MSRP$526.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix SBFTF Series
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-TX, 100Base-FX
- RJ-45 / SC multi-mode
- up to 20 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $526.00 |
| Mfr Part #: | SBFTF1014-105-NA |
| SHI Part #: | 48990274 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix SBFTF Series - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-FX - RJ-45 / SC multi-mode - up to 20 km - 1310 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $526.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.192 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 8.255 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | North America |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 12.192 cm |
| Height | 2.5 cm |
| Weight | 900 g |
| Width | 8.255 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, UL, FCC Class A certified, VCCI, CISPR 22 Class A, EN 55022 Class A, EN55024, EN 61000 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | 16 dB link budget, 512KB packet buffer, half duplex mode, full duplex mode, auto-negotiation, Link Pass-Through, Far End Fault (FEF) |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, link/activity, fiber duplex, copper duplex, copper |
| Power | |
| Power Device | External power adapter |
