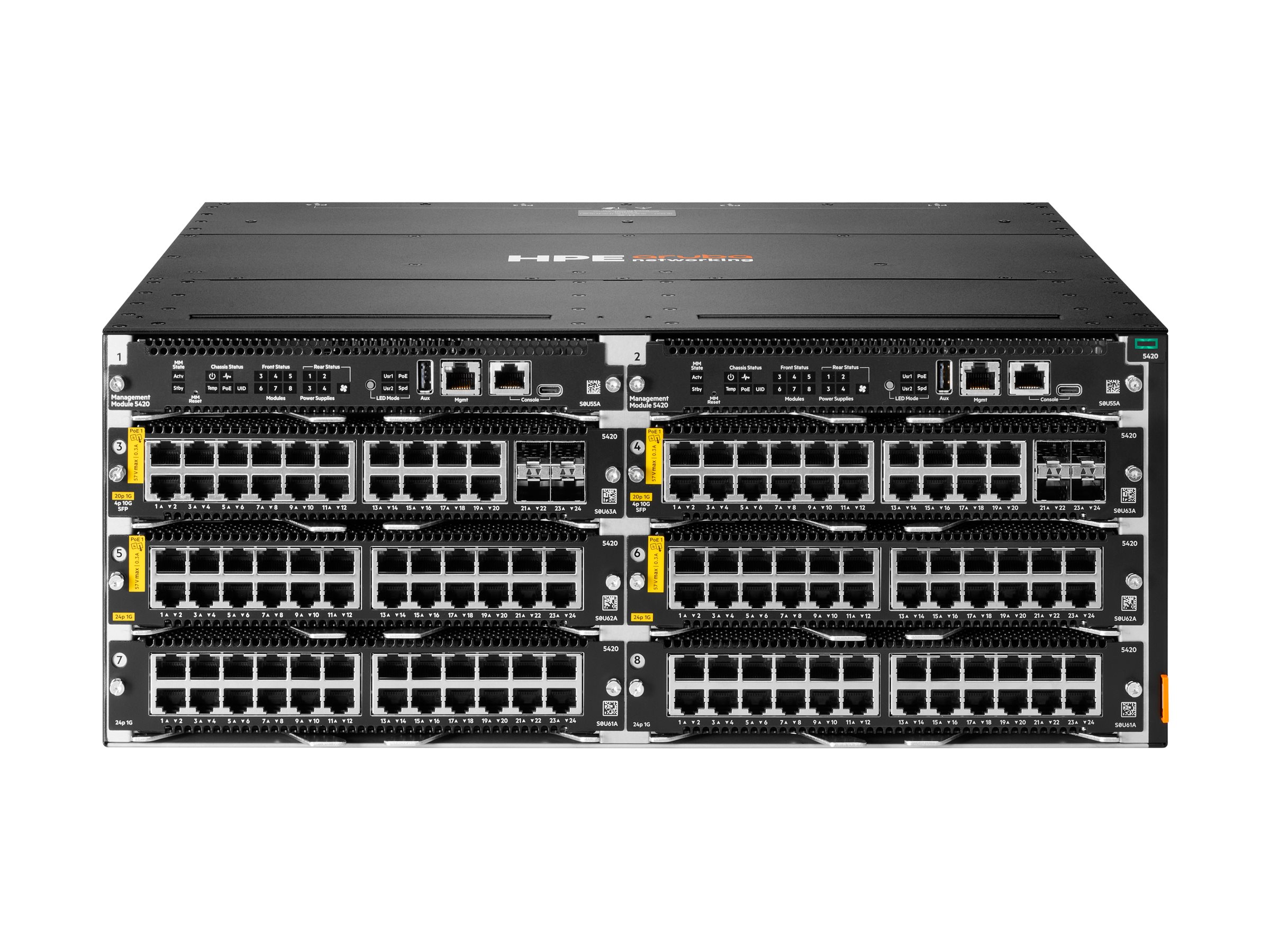

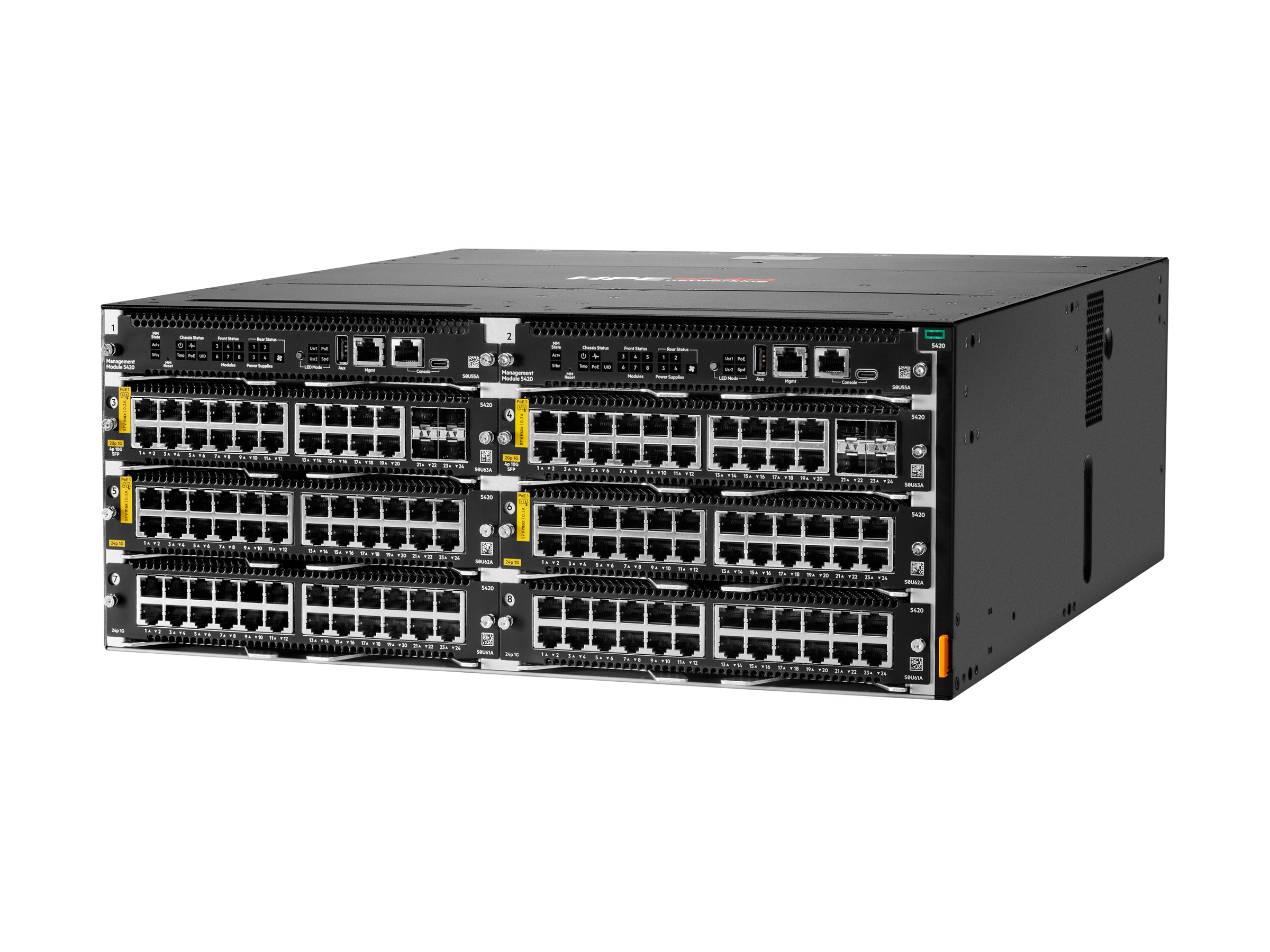

HPE Aruba Networking CX 5420 TAA Switch
MSRP$10,598.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE Aruba Networking CX 5420 TAA Switch
- Switch
- 6-slot
- L3
- managed
- front to back airflow
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $10,598.00 |
| Mfr Part #: | S0U69A |
| SHI Part #: | 48977889 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba Networking CX 5420 TAA Switch - Switch - 6-slot - L3 - managed - front to back airflow - rack-mountable - TAA Compliant |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $10,598.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44.74 cm |
| Dimensions & Weight / Height | 17.41 cm |
| Dimensions & Weight / Weight | 15.73 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 44.74 cm |
| Height | 17.41 cm |
| Weight | 15.73 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Installed Modules Qty (Max) | 1 (installed) / 8 (max) |
| Interfaces | 1 x management RJ-45 out-of-band network management |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1t, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3z |
| Device Type | Switch - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 4U |
| Features | QoS, layer 2 switching, layer 3 routing, VRRP support, UDLD, LACP, ToS, EQS, REST API interface, sFlow, Rapid PVST+, MVRP, BPDU |
| Flash Memory | 32 GB |
| Jumbo Frame Support | 9198 bytes |
| Performance |
|
| Processor | 1 x AMD Ryzen Embedded V1500B |
| RAM | 16 GB DDR4 SDRAM |
| Remote Management Protocol | RMON, SNMP 2c, SNMP 3, TFTP, SFTP, SSH, CLI, NTP |
| Routing Protocol | IGMP, OSPF, VRRP, IGMPv3, MLDv2, ECMP, static IP routing, static IPv6 routing, RSTP, MSTP, STP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, IEC 60825-1:2014, EN 60825-1:2014 + A11:2021, Laser Class 1, EN 62368-1:2014+A11:2017 2nd Ed., EN IEC 62368-1:2020+A11:2020 Third Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19, CNS 15598-1:2020, EN 55032:2015+A11:2020 Class A, CISPR 32:2015+AMD1:2019 Class A, FCC Part 15 B Class A, VCCI, Directive 2014/35/EU, CISPR 35: 2016, EN 55035:2017+A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN IEC 61000-3-2, IEC/EN 61000-3-3 |
| Included Accessories | Fan tray, management module, 6-slot Accessory Kit, 2-post 6-slot Rack Kit, cable management kit |
| TAA Compliant | Yes |
| Power | |
| Max Supported Qty | 4 |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply), N+N (with optional power supply) |
| Voltage Required | AC 100-127/200-240 V |
