5-YR NETCLOUD RUGGEDIZED IOT ROUTER ESSENTIALS PLAN

MSRP$1,470.00
$1,390.00
5-YR NETCLOUD RUGGEDIZED IOT ROUTER ESSENTIALS PLAN
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
5-YR NETCLOUD RUGGEDIZED IOT ROUTER ESSENTIALS PLAN
  Additional Details
Price: $1,390.00
MSRP: $1,470.00
Mfr Part #: TC05-R980-5GD-A
SHI Part #: 48953711
Category: Telecommunications transmission equip...
UNSPSC: 43221800
Manufacturer: Cradlepoint
Product Type: Hardware
General Information
CategoryTelecommunications transmission equip...
Description5-YR NETCLOUD RUGGEDIZED IOT ROUTER ESSENTIALS PLAN
ManufacturerCradlepoint
MSRP$1,470.00
UNSPSC43221800
Main Specifications
Height2.25
Length9.75
UPC0840292719163
Width9.00
Antenna
AntennaExternal detachable
Antenna Qty3
Communications
Cellular BandLTE B12, LTE B13, LTE B14, LTE B2, LTE B25, LTE B26, LTE B29, LTE B30, LTE B4, LTE B41, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71
Cellular ProtocolFDD LTE, TDD LTE, 5G NR
Generation4G, 5G
Max Transfer Rate150 Mbps
TypeWireless cellular modem
Compatibility Information
Designed ForP/N: 170716-001, 170717-000, 170864-000, 170873-000
Dimensions & Weight
Depth12.15 cm
Height4.1 cm
Weight601 g
Width13.36 cm
Environmental Parameters
Humidity Range Operating10 - 90%
Max Operating Temperature70 °C
Min Operating Temperature-30 °C
Expansion / Connectivity
Expansion Slots
  • 2 (total) / 2 (free) x Nano-SIM
  • 1 expansion slot

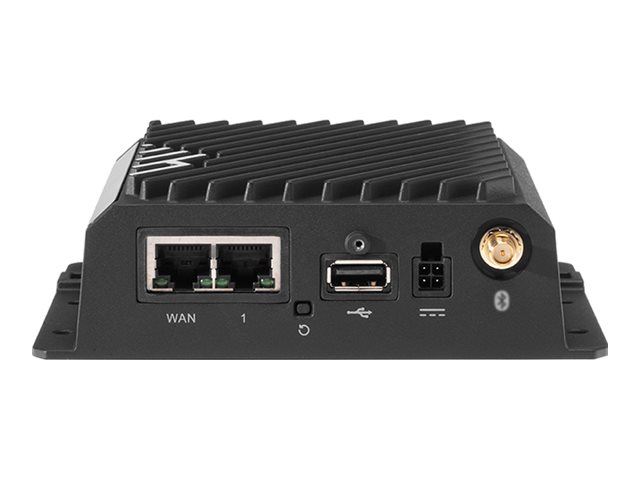

Interfaces
  • WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
  • Antenna: 1 x RP-SMA - Wi-Fi
  • USB 2.0: 1 x 4 pin USB Type A
  • Antenna: 2 x SMA - LTE
General
Built-in DevicesGNSS receiver, GPS / GLONASS / Galileo
Bundled Services3 years NetCloud IoT Essentials Plan
Capacity
  • Concurrent VPN tunnels: 20
  • Concurrent TCP sessions: 32000
  • Typical client count: 50
  • Layer 2 VLANs: up to 64
Compliant StandardsIEEE 802.11k, IEEE 802.11v, Wi-Fi CERTIFIED, NMEA, TAIP, IP30, IEEE 802.3af Class 3, UL/cUL, CB Scheme, EN 62368-1, WEEE, RoHS, REACH, CP65, MIL-STD-810H 514.8, MIL-STD-810H 516.8, ATEX Zone 2, Class 1 Div 2 (C1D2), FCC, IC, RCM, UKCA, ANATEL, IFT, Subtel, MCMC, IMDA, PTCRB, FCC Part 96, IP64
Connectivity TechnologyWired, wireless
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Device TypeWireless router
Enclosure TypeDesktop
Encryption AlgorithmWPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise
Features2x2 MIMO technology, GPS/GLONASS/Galileo/BeiDou support, plastic housing, 3GPP Release 11, security slot (Kensington security lock compatible), reset button, eSIM support
Frequency Band2.4 GHz / 5 GHz
Performance
  • Maximum data rate (2.4 GHz): 574 Mbps
  • Maximum data rate (5 GHz): 1.2 Gbps
  • Stateful firewall throughput: 95 Mbps
  • VPN throughput (IPSec): 20 Mbps
ProcessorARM
Internet of Things (IoT)
Communications Technology5G, LTE Cat 6
Internet of Things (IoT) CompatibleYes
Line Properties
Line Coding Format16 QAM
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Included AccessoriesAntennas, power supply
LocalizationGlobal
MTBF1,407,191 hours
TAA CompliantYes
Power
Power Consumption Operational13 watt
Power DeviceExternal power adapter
Voltage RequiredDC 2.9 - 3.15 V
