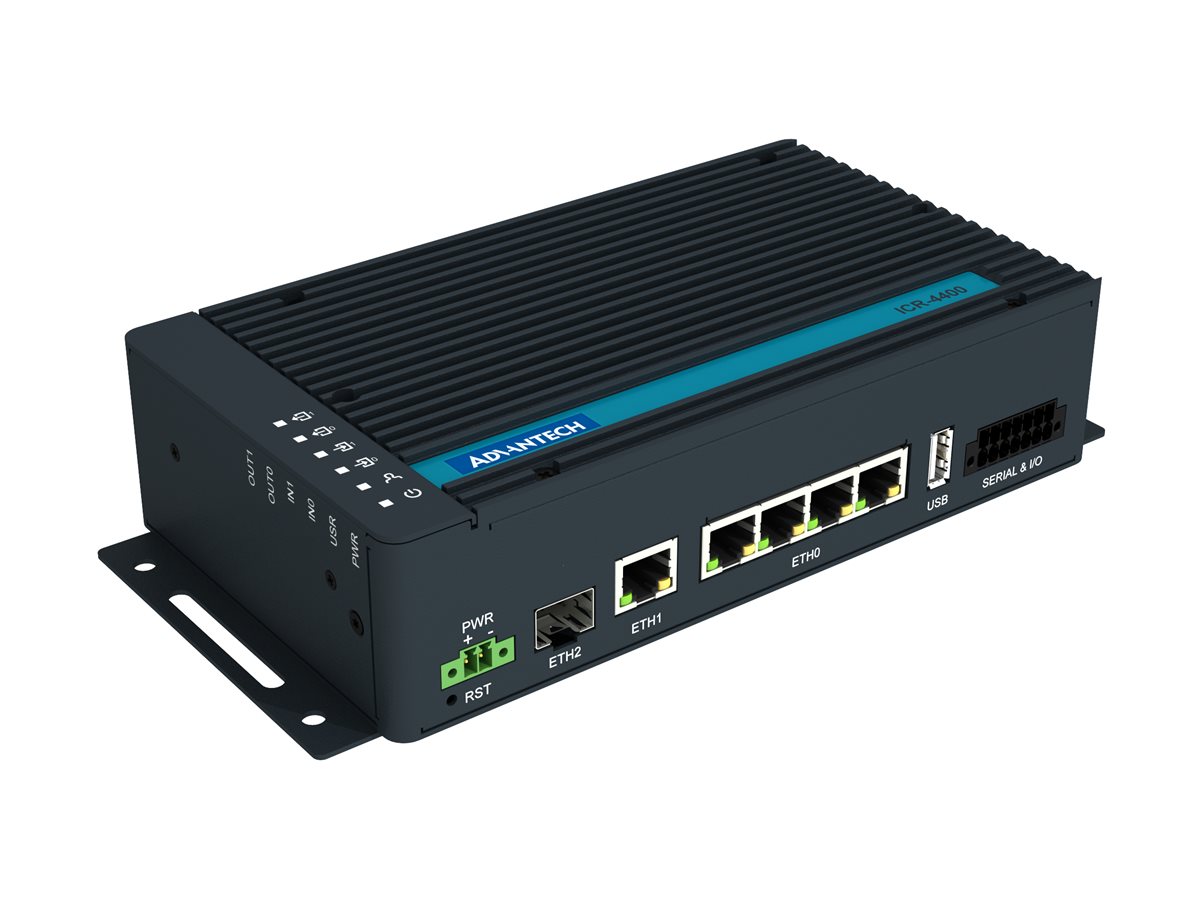

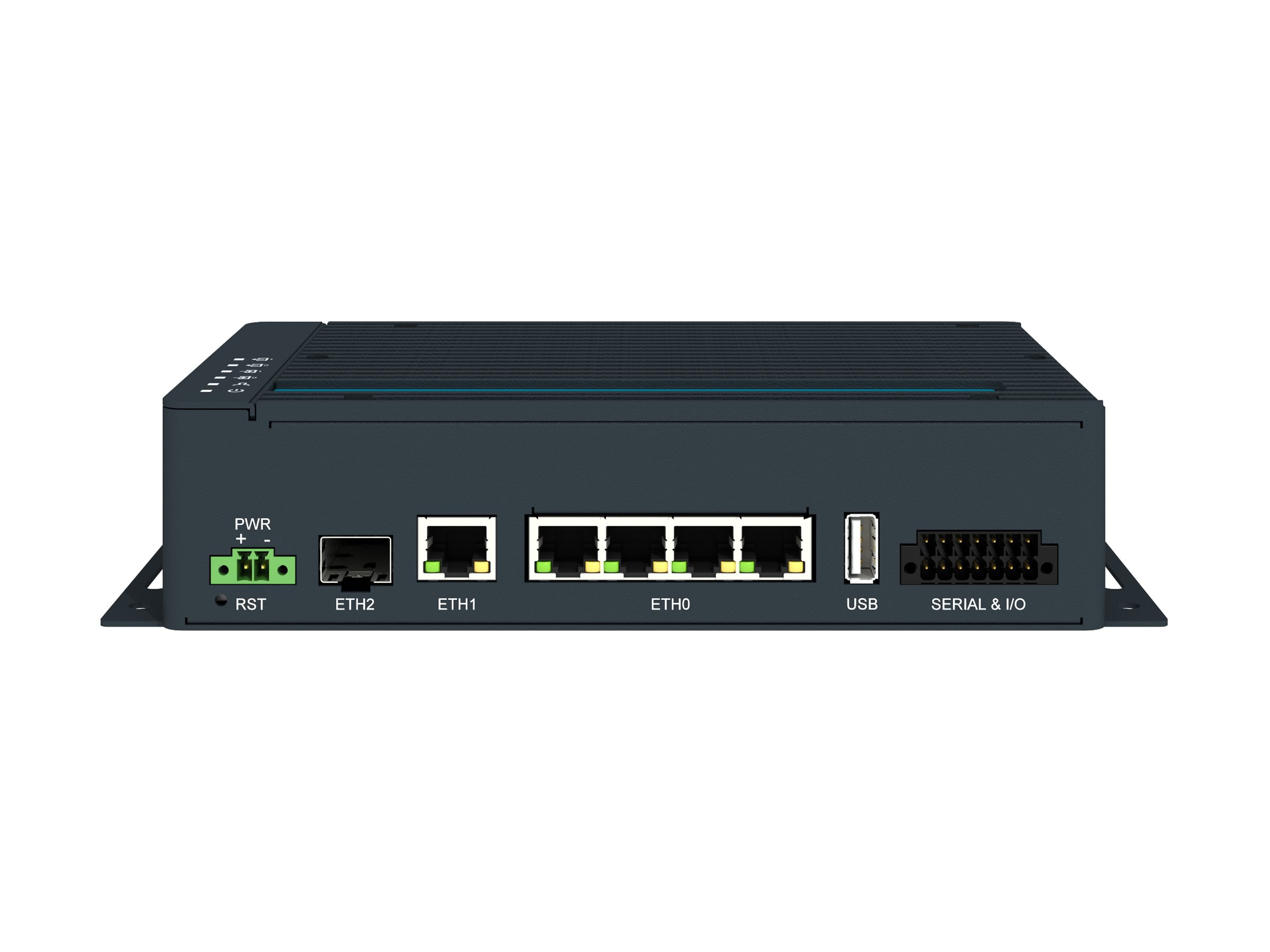

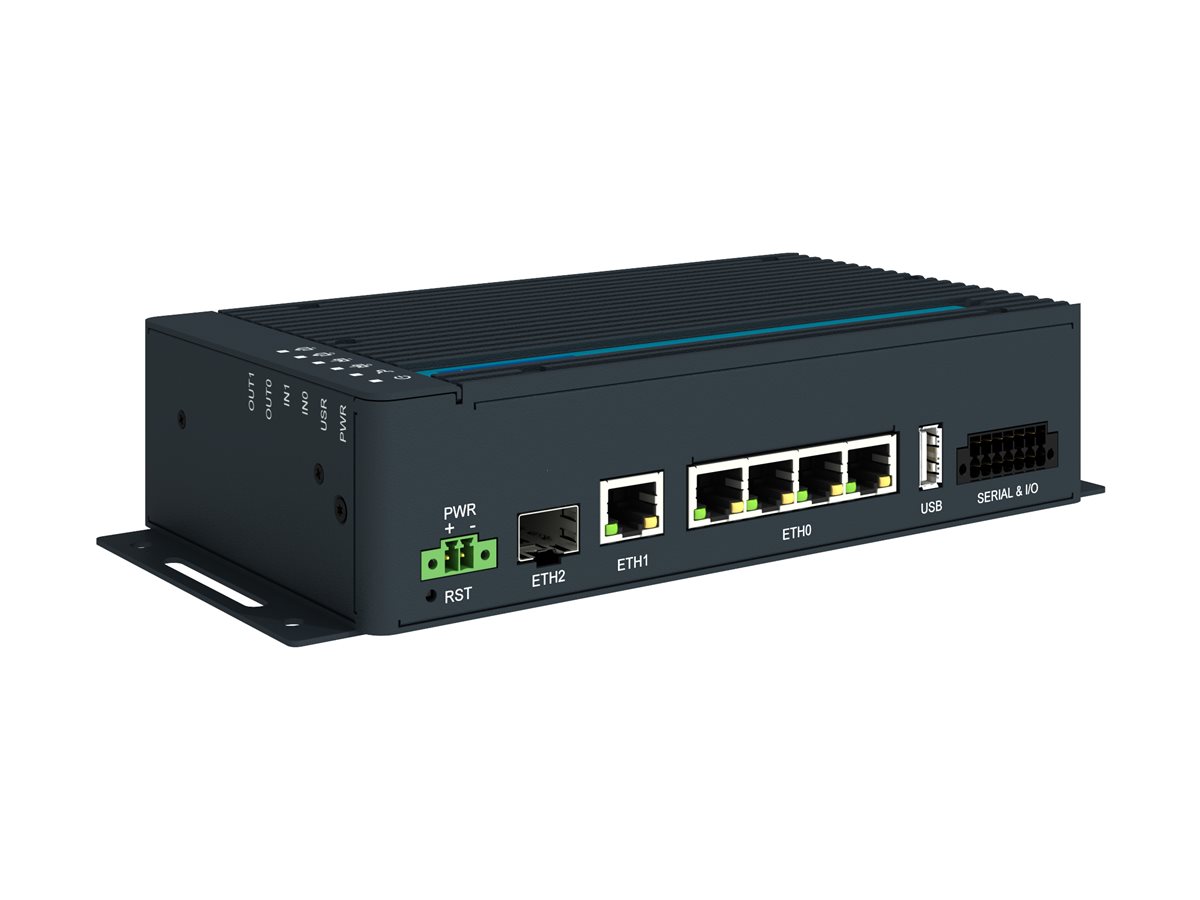

Advantech ICR-4401 - Router 1GbE
MSRP$940.40
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech ICR-4401 - Router 1GbE
- DIN rail mountable, wall-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $940.40 |
| Mfr Part #: | ICR-4401 |
| SHI Part #: | 48647249 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Advantech ICR-4401 - Router 1GbE - DIN rail mountable, wall-mountable |
| Manufacturer | Advantech |
| MSRP | $940.40 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.9 cm |
| Dimensions & Weight / Height | 4.7 cm |
| Dimensions & Weight / Weight | 1.35 kg |
| Dimensions & Weight / Width | 19.5 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor |
|
| Networking / Type | Router |
| OS Provided / Type | ICR-OS |
| Packaged Quantity | 1 |
| Antenna | |
| Antenna | External detachable |
| Dimensions & Weight | |
| Depth | 10.9 cm |
| Height | 4.7 cm |
| Weight | 1.35 kg |
| Width | 19.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x microSD |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.1x, IEEE 802.3, RoHS, UKCA, IP30, EN 301 893, EN 300 328, EN 301 489-1, EN 301 489-17, EN 610000-6-2, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EMC, EN 62368-1, e-mark certified, EN 60068-2-27, EN 60068-2-64, EN 60529, EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-30, REACH, WEEE, IEC 60870-5-101 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Encryption Algorithm | WEP, WPA, WPA2, WPA3, IKEv2, IKEv1, 3DES, DES, AES, RSA, MD5, SHA |
| Features | TPM 2.0, sleep mode, metal housing, LED status indicators, reset button, firmware upgradable, SFP cage, alarm button, gateway mode, hardware watchdog, battery-backed RTC, 802.1x authentication, dynamic DNS client, DNS proxy, VLAN support, QoS, DMVPN, NTP client, NTP server, port forwarding, host port routing, load balancing, IPv6 support, LwM2M support, WOL, DMZ support, IP address filtering, MAC address filtering, port filtering |
| Flash Memory | 4 MB |
| Network / Transport Protocol | DHCP, IPv6, DNS, NTP, HTTPs, SFTP, WireGuard, OpenVPN |
| Processor | 1 x Cortex-A72 1200 MHz |
| RAM | 1 GB |
| Remote Management Protocol | SSH, SNMP, SMTP, Modbus RTU, Modbus TCP, MQTT |
| Routing Protocol | VRRP, RIP, BGP, OSPF, IS-IS, NHRP |
| Status Indicators | System, input, network, user, output |
| Power | |
| Power Consumption Operational | 4.2 watt |
| Power Device | External power adapter |
| Voltage Required | DC 9 - 48 V |
| Software / System Requirements | |
| OS Provided | ICR-OS |
