ATEN SN1132CO - Console server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

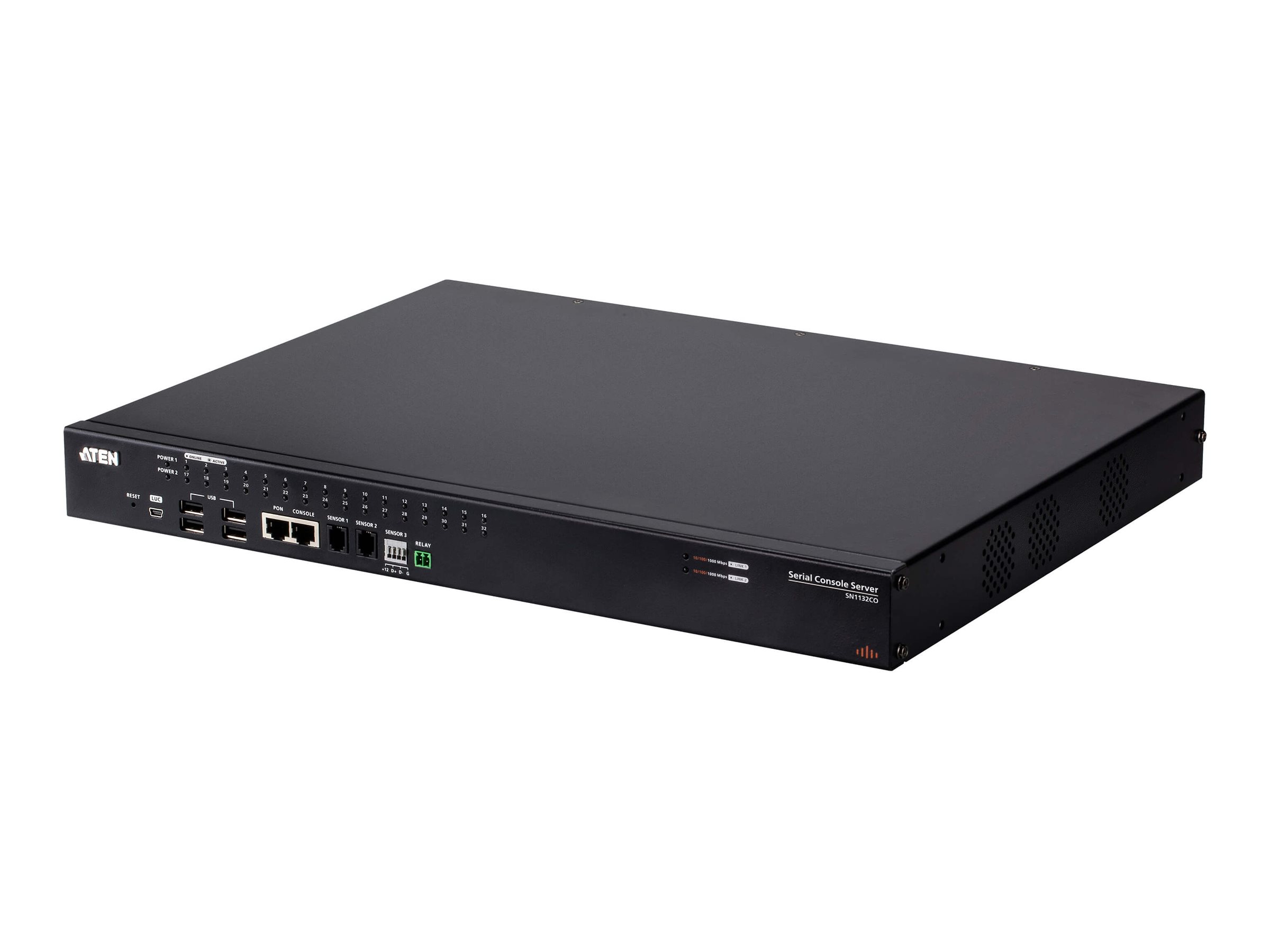

ATEN SN1132CO - Console server
- 32 ports
- 1GbE, RS-232
- rack-mountable
- for ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SN1132CO |
| SHI Part #: | 48541502 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | ATEN SN1132CO - Console server - 32 ports - 1GbE, RS-232 - rack-mountable - for ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442 |
| Manufacturer | ATEN |
| MSRP | $3,497.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 32.84 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 43.84 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442 |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 32.84 cm |
| Device Type | Console server |
| Height | 4.4 cm |
| Weight | 4.6 kg |
| Width | 43.84 cm |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Included Accessories | 2 x power cords, 4 foot pads, rack mount kit |
| Networking | |
| Authentication Method | RADIUS, TACACS+, LDAP, Active Directory, Kerberos |
| Compliant Standards | IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Encryption Algorithm | TLS 1.2, 2048-bit RSA, FIPS 140-2 Level 1 |
| Features | Laptop USB Console (LUC) port, reset button, metal housing, MAC address filtering, IP address filtering, SNMP trap, e-mail notification, event log, firmware upgradable, NTP support, LLDP support |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | IPv4, IPv6, TCP/IP, UDP/IP |
| Ports Qty | 32 |
| Remote Management Protocol | Telnet, SSH, Syslog, SNMP 1, SNMP 2c, SNMP 3, SMTP, CLI |
| Status Indicators | Power, LAN, serial |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
