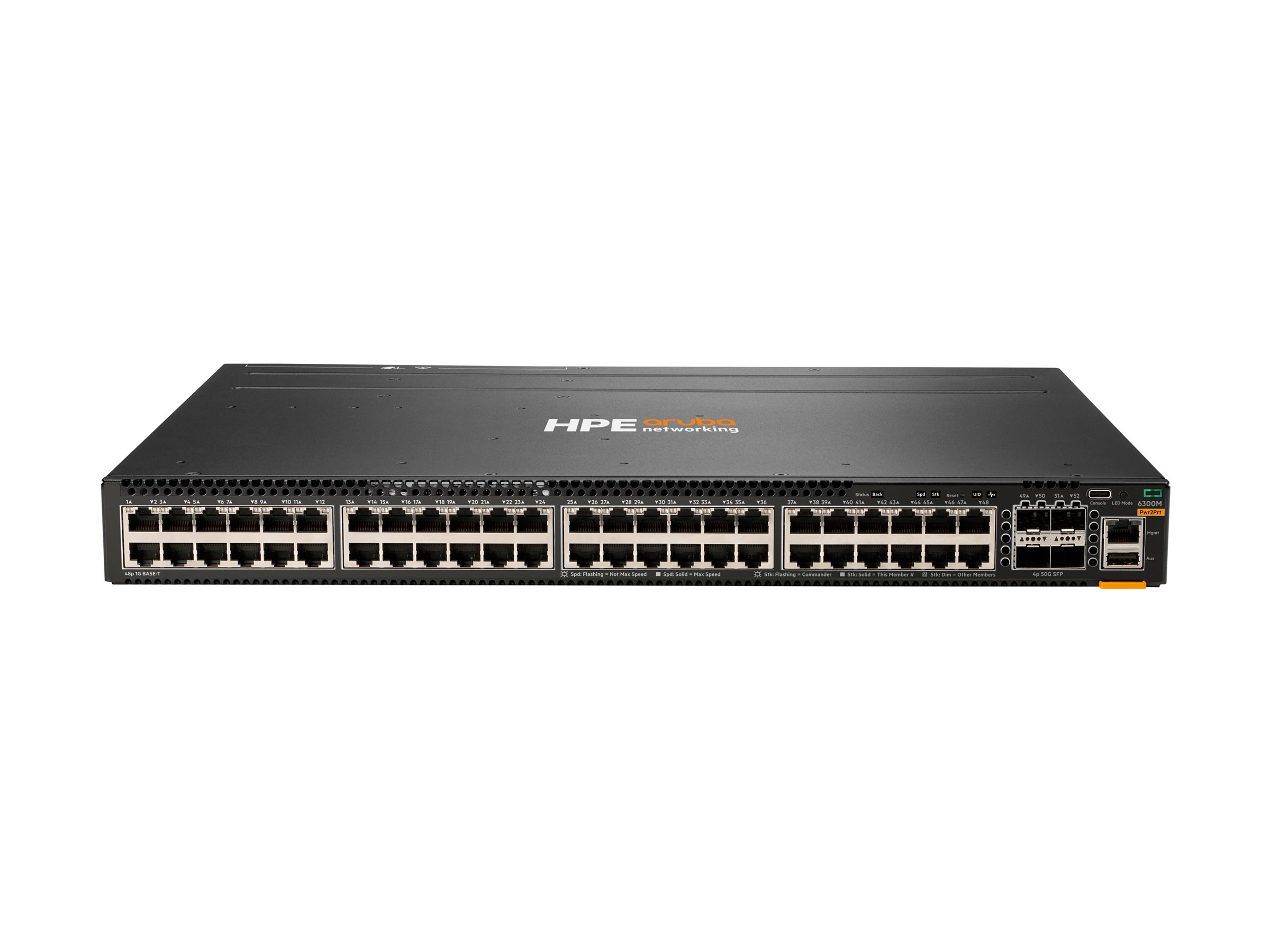

HPE Aruba CX 6300M - Switch

Login for Price

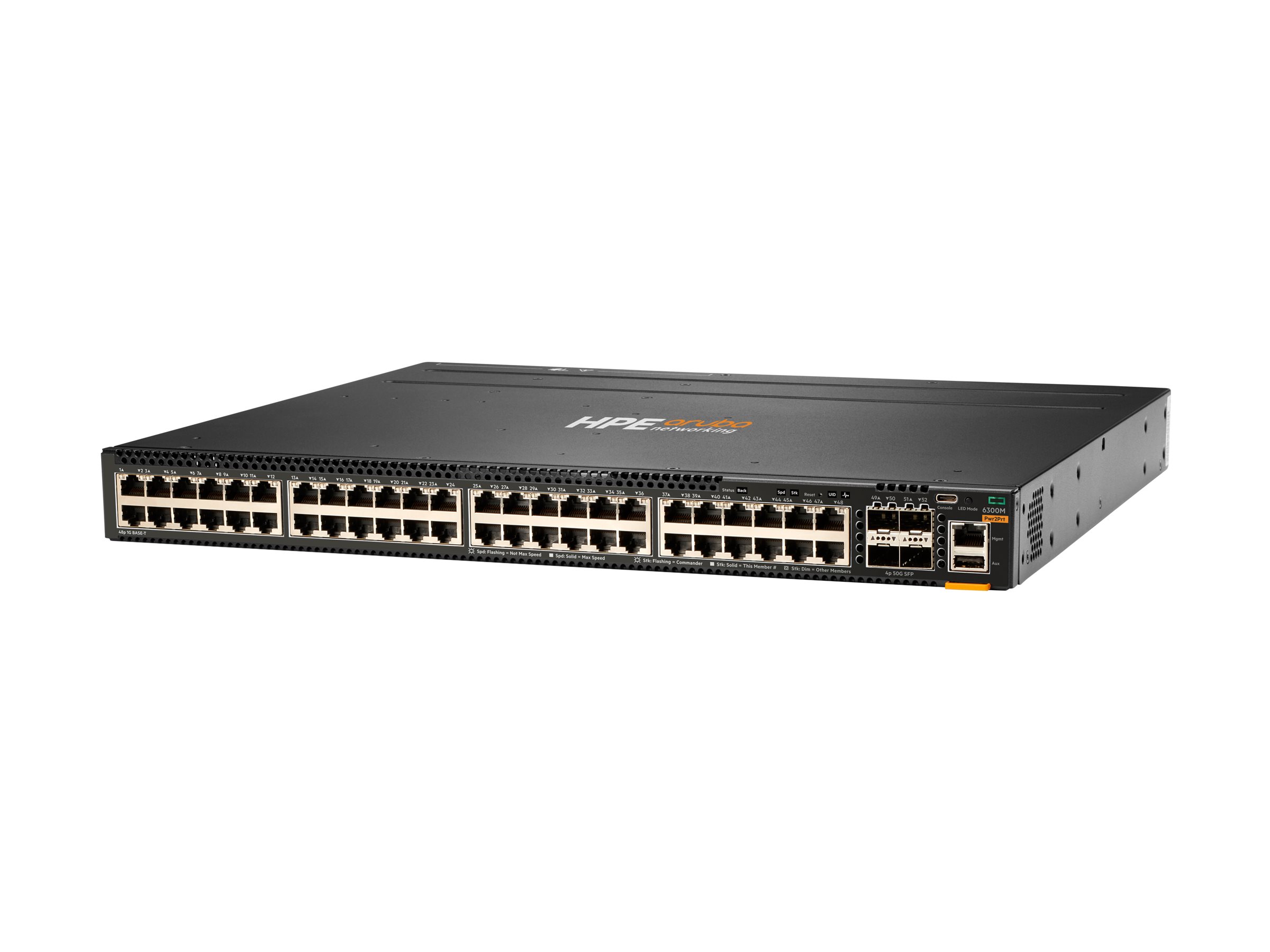

HPE Aruba CX 6300M - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • horizontal surface mounting only
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
  • back to front airflow
HPE Aruba CX 6300M - Switch
  • horizontal surface mounting only
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
  • back to front airflow
  • rack-mountable
  • PoE+
  • TAA Compliant
  Additional Details
Mfr Part #: S0G02A#ACC
SHI Part #: 48505123
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Aruba CX 6300M - Switch - horizontal surface mounting only - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56 - back to front airflow - rack-mountable - PoE+ - TAA Compliant
ManufacturerHewlett Packard Enterprise
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.7 kg
Dimensions & Weight / Width44.2 cm
Header / BrandHPE
Header / Country KitsUnited Kingdom
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth38.5 cm
Height4.4 cm
Weight5.7 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
  • 1 x console (USB) Type C
  • 1 x management
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 1024
  • IPv4 host table capacity: 49152
  • IPv6 host table capacity: 49152
  • IPv4 routes (Unicast): 61000
  • IPv6 routes (Unicast): 61000
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 4096
  • MLD groups: 8192
  • IPv4 ACL entries (ingress): 20480
  • IPv6 ACL entries (ingress): 5120
  • MAC ACL entries (ingress): 20480
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
  • VRF instances: 256
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3af, IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeBack to front airflow rack-mountable 1U
Encryption AlgorithmSSL, FIPS 140-2
FeaturesDHCP support, ARP support, BSR Mechanism, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, IPv6 support, sFlow, STP support, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, fan tray, SP, packet storm protection, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, 8MB packet buffer, BOOTP support, port mirroring, DiffServ support, VRRP support, TPM, SNMP trap, VRF, NDP, tagged VLAN, 802.1x authentication, ICMP IRDP, Link Aggregation, EVPN, LLDP-MED, DoS protection, CDP, HPE SmartRate, layer 2 switching
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32768 entries
Max Units In A Stack10
Performance
  • Switching capacity: 496 Gbps
  • Switching throughput: 369 Mpps
  • Latency (1 Gbps): 2.28 µs
  • Latency (10 Gbps): 1.46 µs
  • Latency (25 Gbps): 1.9 µs
  • Latency (50 Gbps): 3.49 µs
  • Stacking bandwidth: 200 Gbps
Ports48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE)PoE+
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Routing ProtocolEGP, BGP-4, IGMPv2, IGMPv3, IGMP, VRRP, OSPFv2, OSPFv3, MSDP, Bidirectional Forwarding Detection (BFD), policy-based routing (PBR), MLD, MSTP, RSTP, STP, GRE, BGP, OSPF, ECMP, PIM-DM, PIM-SM, static IPv6 routing, static IPv4 routing, CIDR, MLDv2, RIP-2
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC Class A certified, CISPR 22 Class A, CAN/CSA C22.2 No. 60950-1-07, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15 A, ICES-003 Class A, RoHS, WEEE, EN 61000-3-2, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, CISPR 24
Included Accessories2-Post Rack Kit
LocalizationEnglish / United Kingdom
Rack Mounting KitIncluded
TAA CompliantYes
Power
FeaturesPower-to-port airflow
Installed Qty1
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided250 Watt
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 100-240 V (50/60 Hz)
