Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

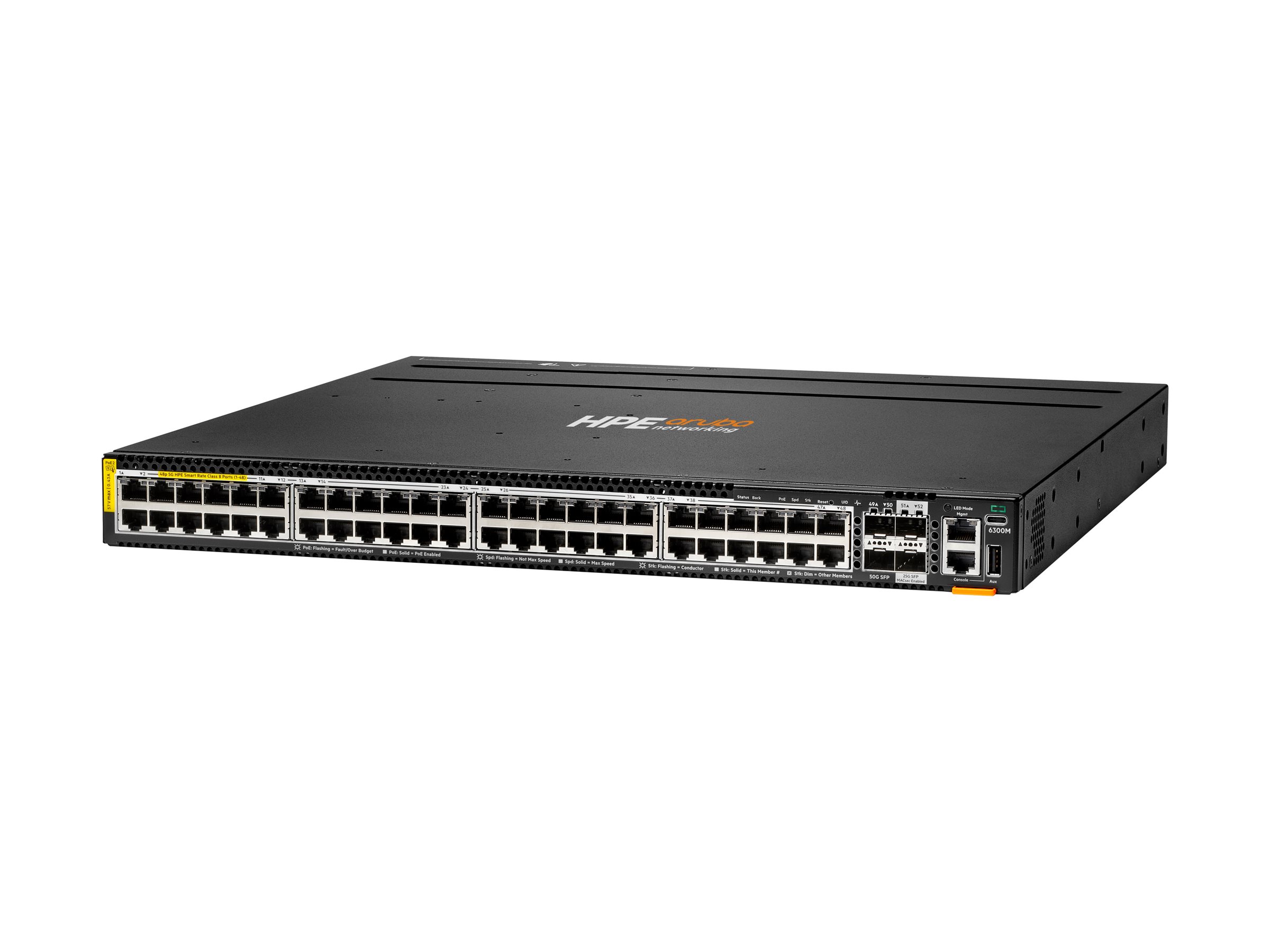

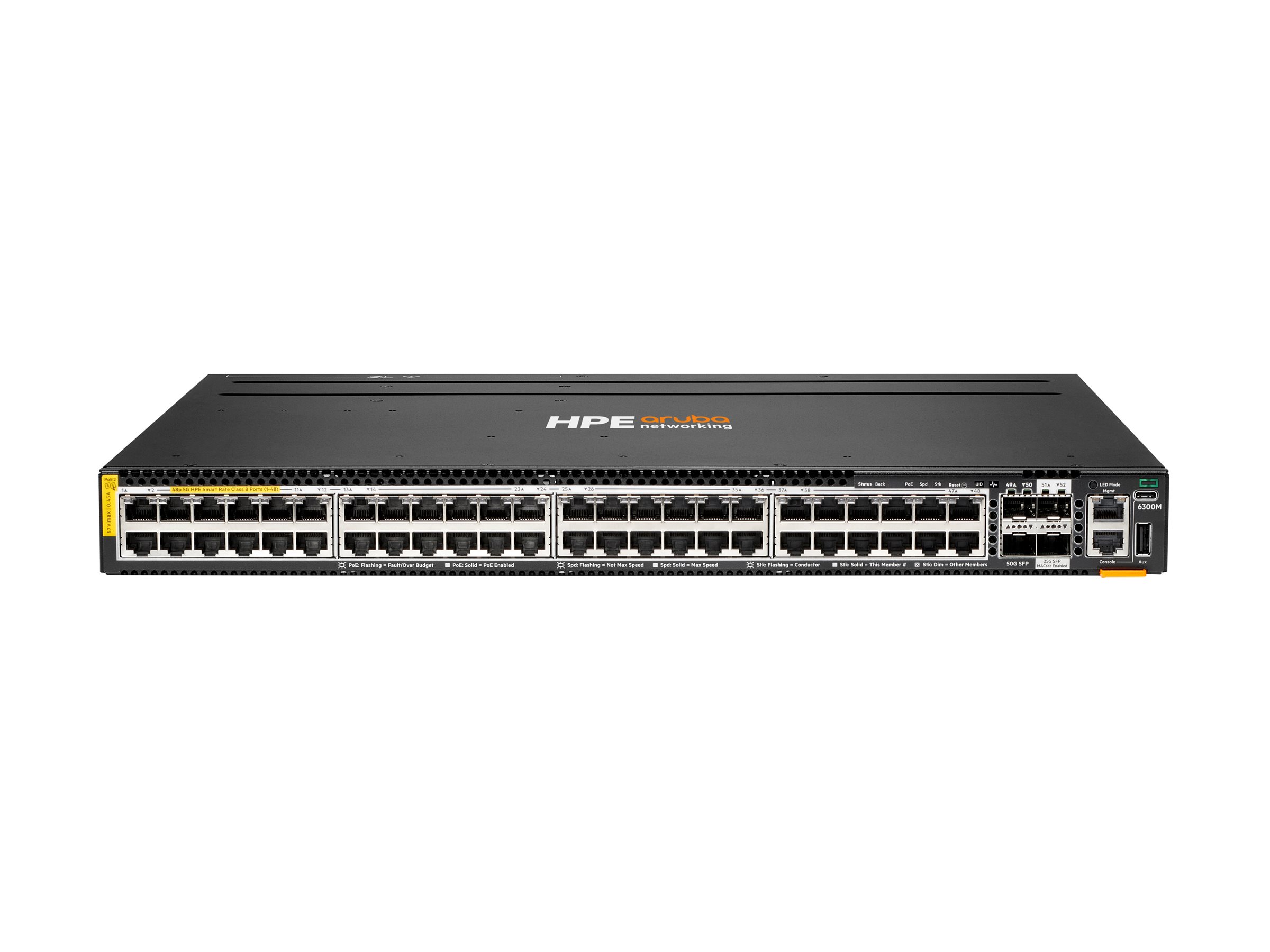

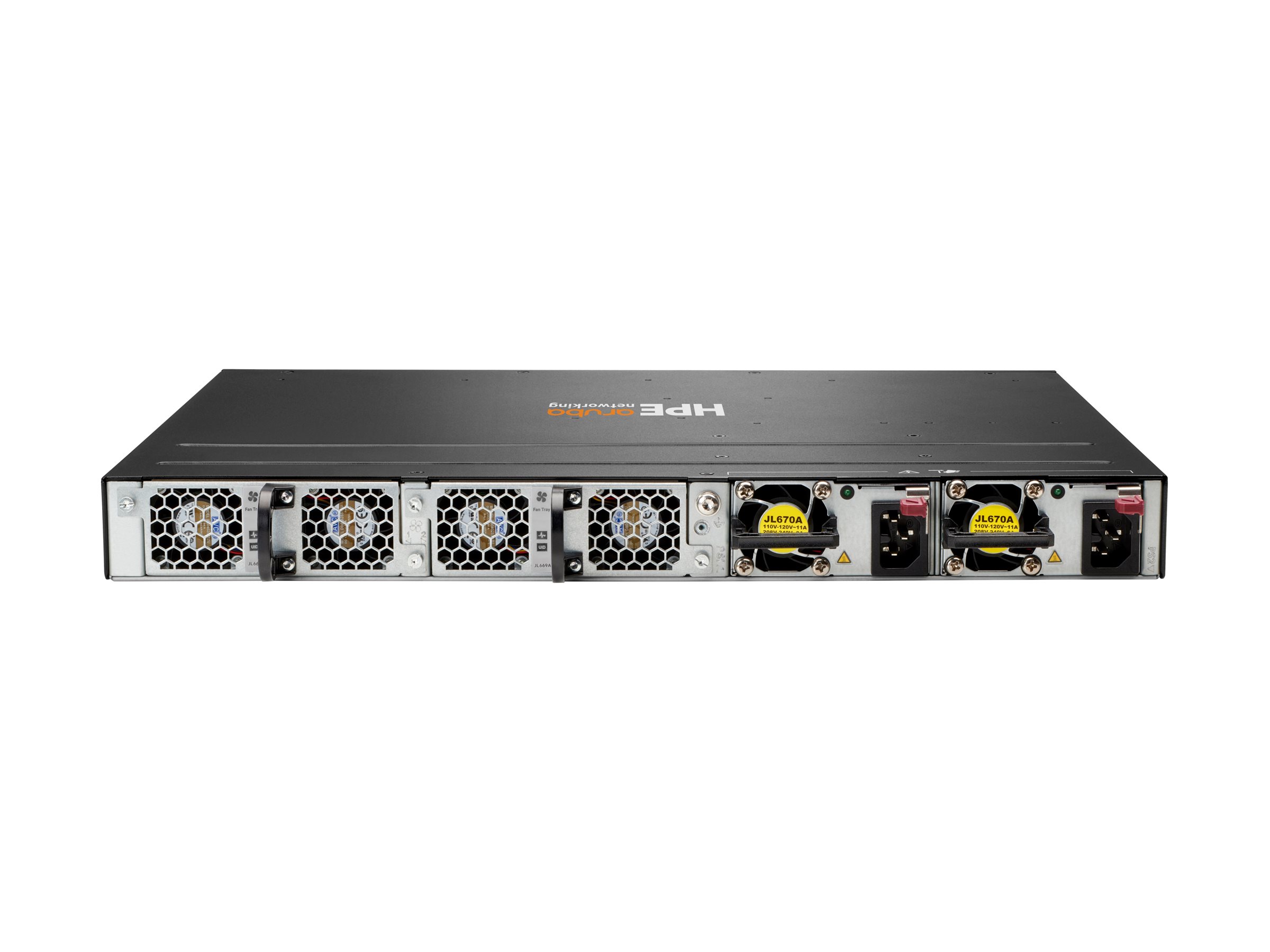

HPE Aruba Networking 6300M 48p Smart Rate 1G/2.5G/5G Class6 PoE 4p SFP56 50G TAA Switch

MSRP$23,654.00
$20,059.00
HPE Aruba Networking 6300M 48p Smart Rate 1G/2.5G/5G Class6 PoE 4p SFP56 50G TAA Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 100/1000/2.5G/5G (4PPoE) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking)
HPE Aruba Networking 6300M 48p Smart Rate 1G/2.5G/5G Class6 PoE 4p SFP56 50G TAA Switch
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 100/1000/2.5G/5G (4PPoE) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking)
  • front and side to back
  • rack-mountable
  • 4PPoE (2880 W)
  • TAA Compliant
  Additional Details
Price: $20,059.00
MSRP: $23,654.00
Mfr Part #: S0G04A
SHI Part #: 48496846
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Control/Interface Boards

HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-SR
  • LC multi-mode
  • up to 100 m
  • for CX 8360
MSRP $2,771.00 $2,439.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-BX-U
  • LC single-mode
  • up to 10 km
MSRP $5,495.00 $4,149.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 25GbE
  • 25GBase-BR
  • LC single-mode
  • up to 10 km
MSRP $4,175.00 $3,152.00

CPU-Fans

HPE Aruba - Network device fan tray
HPE Aruba - Network device fan tray
  • front-to-back airflow
  • for HPE Aruba 6200F 12G, 6300M
MSRP $705.00 $598.00
HPE Aruba - Network device fan tray
HPE Aruba - Network device fan tray
  • back-to-front airflow
  • for HPE Aruba 6300M
MSRP $681.00 $597.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba Networking 6300M 48p Smart Rate 1G/2.5G/5G Class6 PoE 4p SFP56 50G TAA Switch - Switch - Max. Stacking Distance 10 kms - L3 - managed - 48 x 100/1000/2.5G/5G (4PPoE) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - 4PPoE (2880 W) - TAA Compliant
ManufacturerHewlett Packard Enterprise
MSRP$23,654.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight6.71 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth38.5 cm
Height4.4 cm
Weight6.71 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 100/1000/2.5G/5G (4PPoE) RJ-45 PoE Class 6 - 60 W
  • 4 x 1Gbit/10Gbit/25Gbit SFP56 uplink/stacking
  • 1 x USB-C console
  • 1 x management RJ-45
  • 1 x USB Type A host
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 1024
  • IPv4 host table capacity: 49152
  • IPv6 host table capacity: 49152
  • IPv4 routes (Unicast): 61000
  • IPv6 routes (Unicast): 61000
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 4096
  • MLD groups: 8192
  • IPv4 ACL entries (ingress): 20480
  • IPv6 ACL entries (ingress): 5120
  • MAC ACL entries (ingress): 20480
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront and side to back rack-mountable 1U
FeaturesDHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB, HPE SmartRate, PoE Class 6
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32768 entries
Max Units In A Stack10
Performance
  • Switching capacity: 880 Gbps
  • Throughput: 654 Mpps
  • Latency (1 Gbps): 4.24 µs
  • Latency (10 Gbps): 1.5 µs
  • Latency (25 Gbps): 2.91 µs
  • Latency (50 Gbps): 3.49 µs
  • Stacking bandwidth: 200 Gbps
  • Stacking bandwidth (full-duplex): 400 Gbps
  • Packet buffer size: 8 MB
PoE Budget2880 W
Ports48 x 100/1000/2.5G/5G (4PPoE) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP56 (uplink / stacking)
Power Over Ethernet (PoE)4PPoE
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Routing ProtocolEGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Subtype5 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1-07, IEC 60950-1:2005, EN 55022:2010 Class A, EN 55032:2012 Class A, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC Part 15 A, ICES-003 Class A, VCCI Class A, CISPR 22 Class A, CISPR 32 Class A, CISPR 24:2010, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, CISPR 35, EN 55035:2017, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3
Included AccessoriesFan tray (field replaceable, hotswappable)
Rack Mounting KitIncluded
TAA CompliantYes
Power
Max Supported Qty2
Power DeviceInternal power supply (not installed) - hot-plug
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 120/230 V
