HPE 32QSFP28 P2C SW SN3700CM W/NVD PL-4R
MSRP$43,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

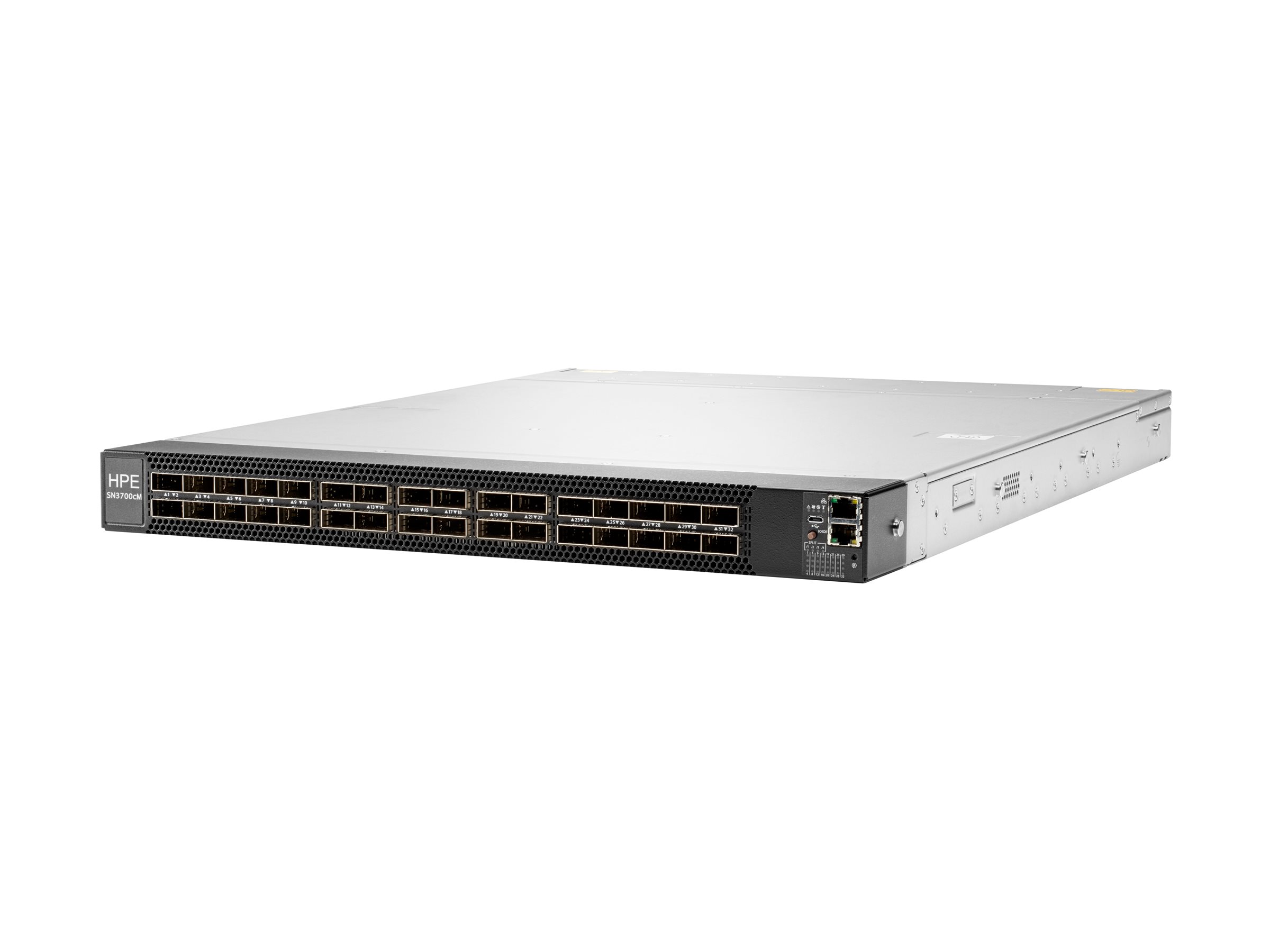

HPE 32QSFP28 P2C SW SN3700CM W/NVD PL-4R
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $43,500.00 |
| Mfr Part #: | S2T78A |
| SHI Part #: | 48470239 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | HPE - STORAGE |
| Product Type: | Hardware |
| Product Line: | HPE - Storage |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE 32QSFP28 P2C SW SN3700CM W/NVD PL-4R |
| Manufacturer | HPE - STORAGE |
| MSRP | $43,500.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Height | 15.50 |
| Length | 76.00 |
| UPC | 0190017701202 |
| Width | 60.00 |
| Dimensions & Weight | |
| Depth | 42.8 cm |
| Height | 4.4 cm |
| Weight | 11.5 kg |
| Width | 55.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 42MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol |
| Flash Memory | 32 GB |
| Jumbo Frame Support | Yes |
| Performance |
|
| Ports | 32 x 100 Gigabit QSFP28 |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Subtype | 100 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | EN 61000-4-6, RoHS, CAN/CSA C22.2 No. 60950-1-07, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, ICES-003 issue 6, EN 55032:2012 Class A, LV, CISPR 32:2015 Class A, EN 61000-4-3:2006, TR CU 020/2011, TR CU 004/2011, IEC 60950-1:2005/AMD2:2013, VCCI-CISPR 32:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, KN22:2009 |
| Included Accessories | Fan tray, rack mount kit |
| Rack Mounting Kit | Included |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 242 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | (50/60 Hz) |
