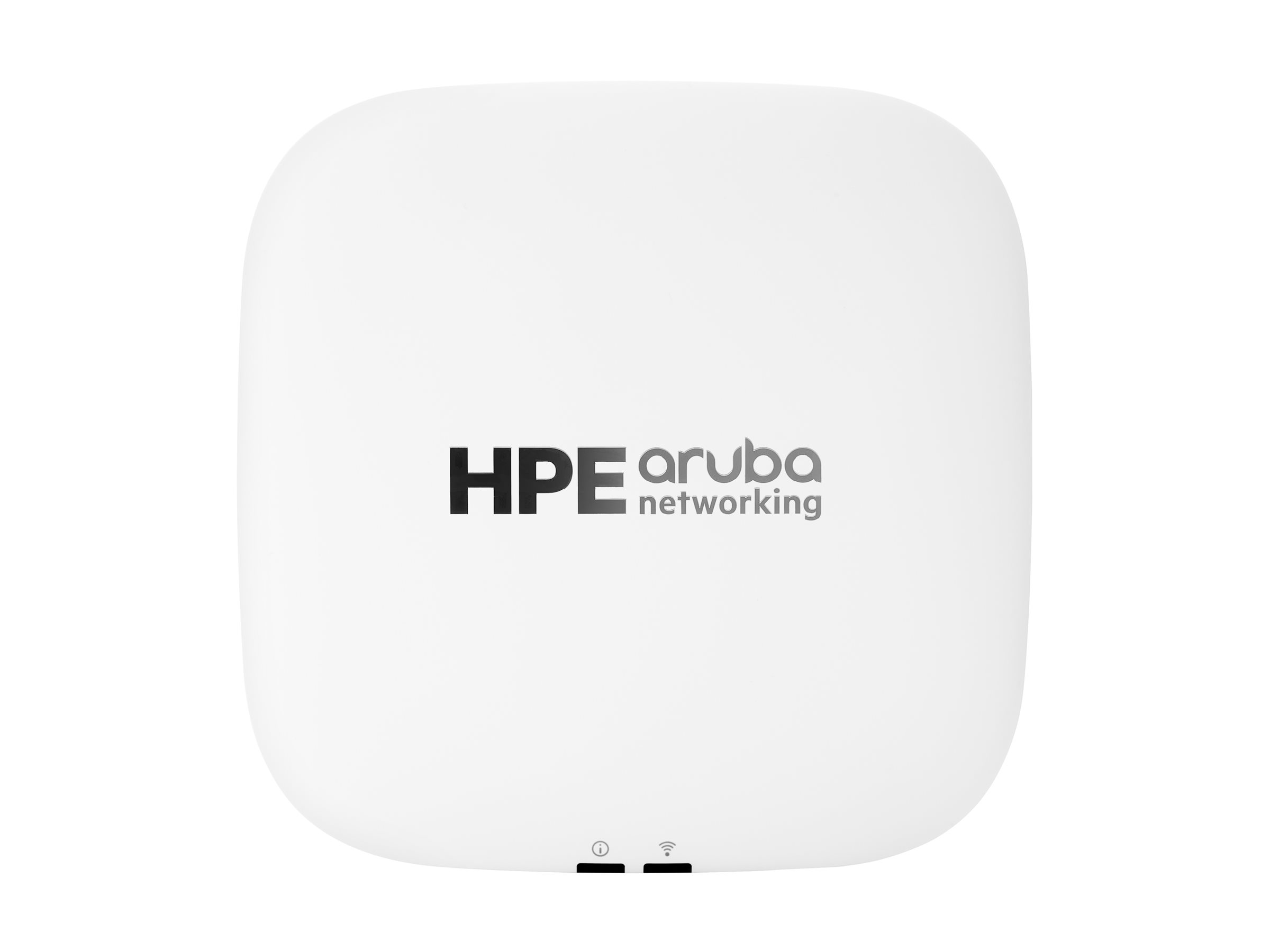

HPE Aruba Networking AP-503R-RW

MSRP$595.00
$450.00
HPE Aruba Networking AP-503R-RW
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wireless access point
  • Wi-Fi 6
  • Bluetooth
  • 2.4 GHz, 5 GHz
  • desktop
HPE Aruba Networking AP-503R-RW
  • Wireless access point
  • Wi-Fi 6
  • Bluetooth
  • 2.4 GHz, 5 GHz
  • desktop
  Additional Details
Price: $450.00
MSRP: $595.00
Mfr Part #: R8N04A#ABA
SHI Part #: 48378066
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryWireless access point
DescriptionHPE Aruba Networking AP-503R-RW - Wireless access point - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - desktop
ManufacturerHewlett Packard Enterprise
MSRP$595.00
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth15 cm
Dimensions & Weight / Height3.9 cm
Dimensions & Weight / Weight320 g
Dimensions & Weight / Width15 cm
Header / BrandHPE
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Data Transfer Rate1.49 Gbps
Networking / Form FactorDesktop
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS Required
  • ArubaOS
  • InstantOS 10.5.0.0
Antenna
AntennaInternal
Antenna Qty2
DirectivityOmni-directional
Dimensions & Weight (Shipping)
Shipping Depth17 cm
Shipping Height5 cm
Shipping Weight600 g
Shipping Width24 cm
Environmental Parameters
Humidity Range Operating5 - 95% RH
Max Operating Temperature40 °C
Expansion / Connectivity
Interfaces
  • 2 x 1000Base-T - RJ-45
  • 1 x USB 2.0 - Type A
  • 1 x console - micro-USB
General
Depth15 cm
Device TypeWireless access point
Height3.9 cm
LocalizationEnglish / United States
Ruggedized DesignIndoor
Weight320 g
Width15 cm
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN 60601-1-2
MTBF71 years
Networking
Capacity
  • Wireless clients per Wi-Fi radio: 256
  • BSSIDs per radio: 16
  • OFDMA units: 8
Compliant StandardsWi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.3az
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0
Data Transfer Rate1.49 Gbps
Encryption AlgorithmWPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Features2x2:2 streams, DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), packet aggregation A-MPDU, packet aggregation A-MSDU, High-Throughput (HT) support, 2x2 MIMO technology, Very High Throughput (VHT) support, High Efficiency (HE) support, Target Wait Time (TWT), Trusted Platform Module (TPM), security slot (Kensington security lock compatible)
Form FactorDesktop
Frequency Band2.4 GHz, 5 GHz
Line Coding FormatBPSK, QPSK, CCK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM
Performance
  • Maximum data rate (5 GHz): 1.2 Gbps
  • Maximum data rate (2.4 GHz): 574 Mbps
Spread Spectrum MethodDSSS, OFDM, OFDMA
Status IndicatorsPower, system, status
Software / System Requirements
OS RequiredArubaOS, InstantOS 10.5.0.0
