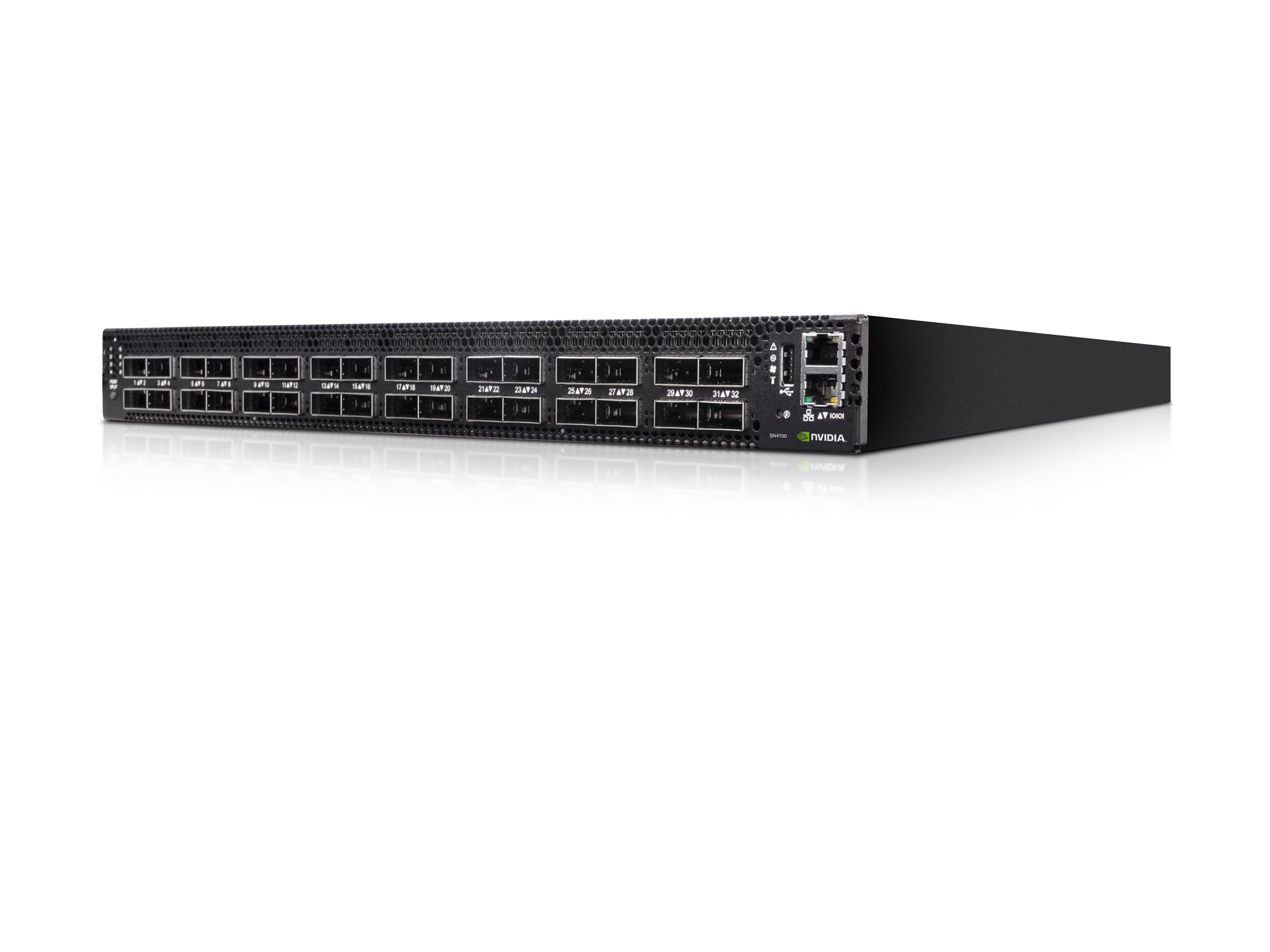

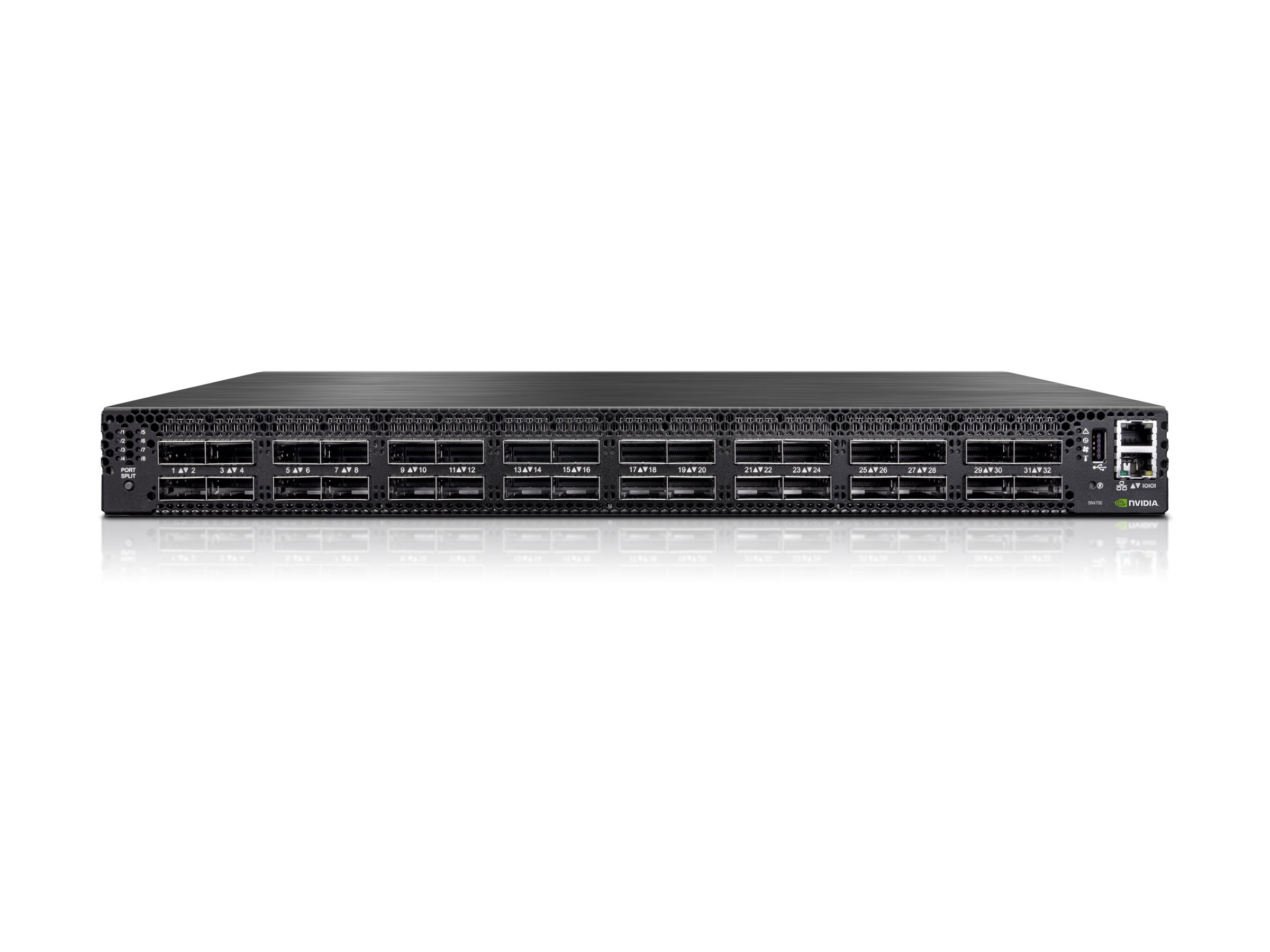

HPE SN4700M 400GbE 32QSFP-DD Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE SN4700M 400GbE 32QSFP-DD Switch
- M-Series
- switch
- L3
- managed
- 32 x 40/100/200/400 Gigabit Ethernet QSFP-DD
- back to front airflow
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | S2T81A |
| SHI Part #: | 48280452 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE SN4700M 400GbE 32QSFP-DD Switch - M-Series - switch - L3 - managed - 32 x 40/100/200/400 Gigabit Ethernet QSFP-DD - back to front airflow - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $100,500.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 56.85 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 11.6 kg |
| Dimensions & Weight / Width | 42.8 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 56.85 cm |
| Height | 4.4 cm |
| Weight | 11.6 kg |
| Width | 42.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Built-in Devices | 60 GB SSD |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 64MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol, Cut Through and Store-and-forward technology, EoR |
| Jumbo Frame Support | Yes |
| Performance |
|
| Ports | 32 x 40/100/200/400 Gigabit Ethernet QSFP-DD |
| RAM | 16 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Subtype | 400 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Compliant Standards | CB, cTUVus, CU, S Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC, RoHS, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, IEC 60950-1:2005 Second Edition + A1:2009 + A2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013, UL 60950-1:2007 R10.14, CAN/CSA C22.2 No. 60950 -1-07+A1:2011+A2:2014, IEC 60950-1 (2nd Edition) + A1:2009 + A2:2013, EN 55032:2012/AC:2013 Class A, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2:2002, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2014, EN 61000-4-11:2004, FCC CFR47 Part 15 B 2017 Class A, ICES-003:2016 issue 6 Class A, VCCI-CISPR 32:2016 Class A, AZ/NZS CISPR 32:2015 Class A, KN22:2009 Class A, KN24:2009 |
| Included Accessories | 6 intake fan trays, fixed rack mount kit, 4 power cables, 2 PSU cable retainer kits |
| Rack Mounting Kit | Included |
| Power | |
| 80 PLUS Certification | 80 PLUS Gold |
| Features | Power-to-port airflow |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 630 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 1500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-264 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | NVIDIA Cumulus Linux |
