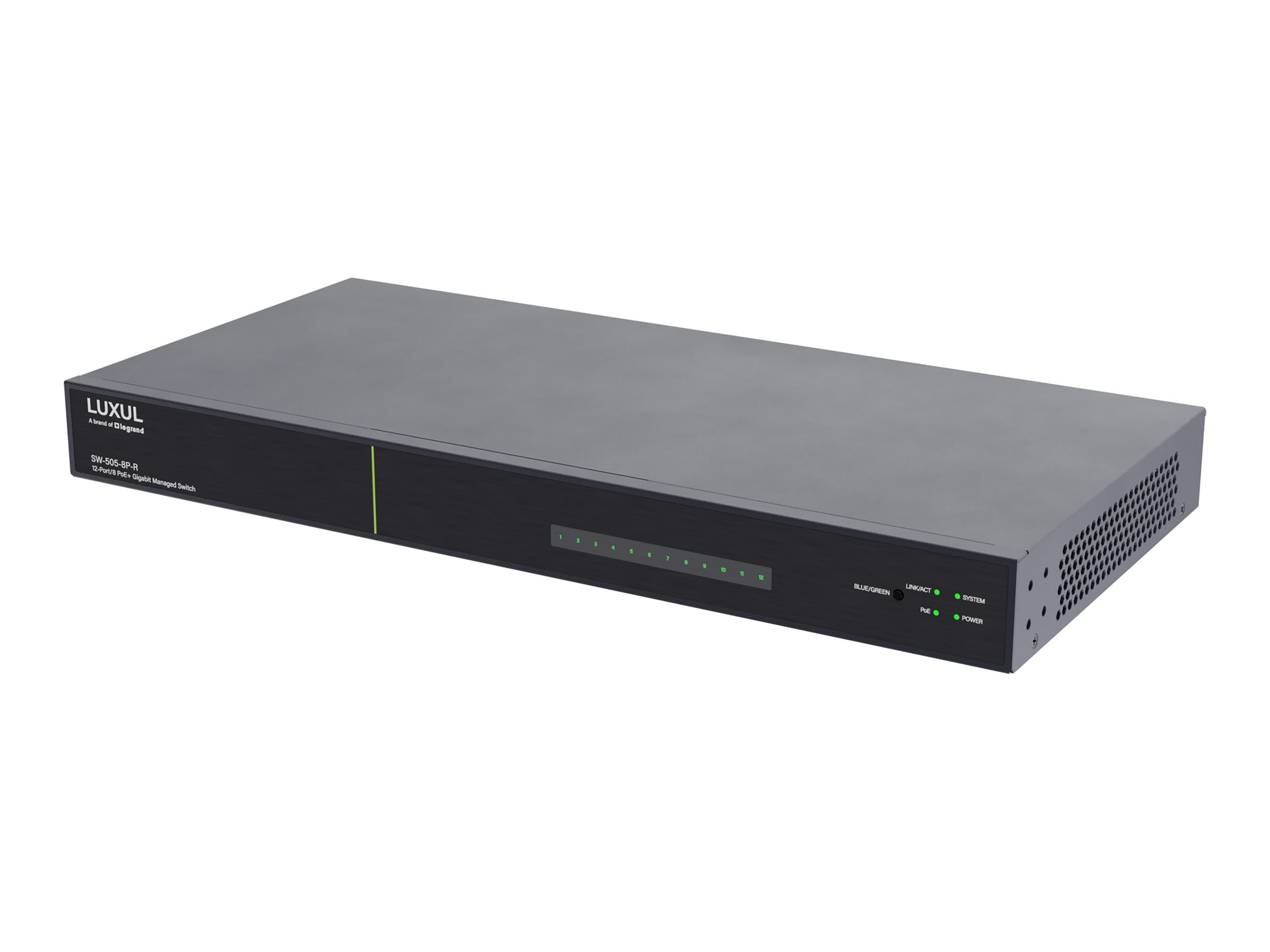

AV 12-PORT (8 POE+) 1G MANAGED SWITCH NA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
AV 12-PORT (8 POE+) 1G MANAGED SWITCH NA
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SW-505-8P-R |
| SHI Part #: | 48170396 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Luxul |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network switches |
| Description | AV 12-PORT (8 POE+) 1G MANAGED SWITCH NA |
| Manufacturer | Luxul |
| MSRP | $657.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| ABC Code | A |
| Height | 4.00 |
| Length | 21.00 |
| One Source Flag | NNY N |
| Serialized Flag | Y |
| SKU Created Date | 240823 |
| UPC | 655003923360 |
| Width | 12.00 |
| Dimensions & Weight | |
| Depth | 37.5 cm |
| Height | 4.4 cm |
| Weight | 2.5 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | VLAN IDs: 4094 |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable, desktop 1U |
| Features | Layer 2 switching, ProWatch, PoE self-healing, VLAN trunking, AES67 audio network, Dante audio network, QoS, IGMP snooping, ACL support |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8K entries |
| Performance |
|
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MSTP, RSTP, STP |
| Status Indicators | System, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x power cable (US) |
| Compliant Standards | CB, EMC, LVD, cUL, FCC, IC, NDAA, RCM, RoHS, UKCA, UL, VCCI |
| Included Accessories | Rack mounting ears, rubber feet |
| Localization | United States |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Power | |
| Power Consumption Operational | 152 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
