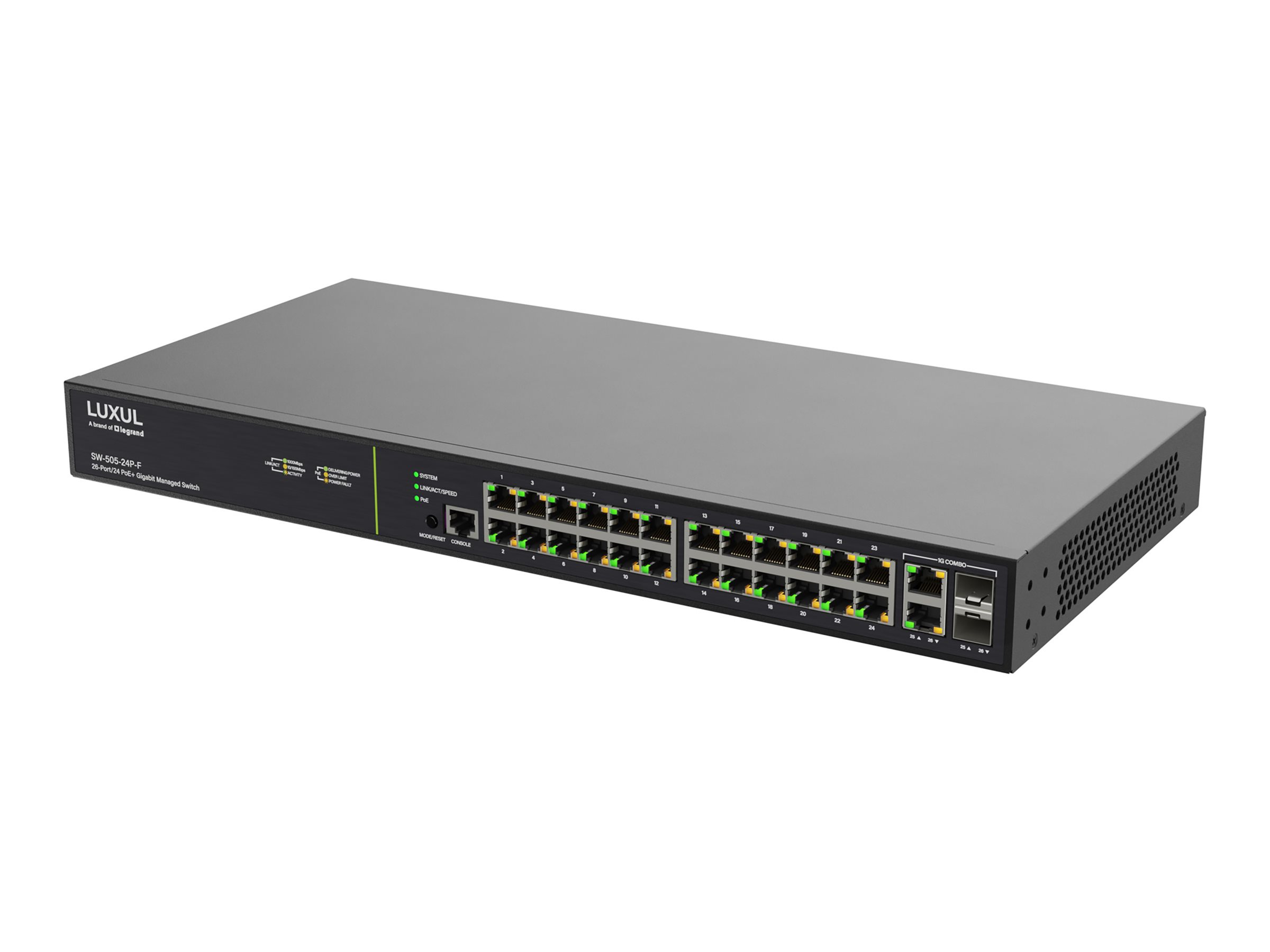

26-PORT (24 POE+) 1G MANAGED SWITCH NA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
26-PORT (24 POE+) 1G MANAGED SWITCH NA
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SW-505-24P-F |
| SHI Part #: | 48170394 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Luxul |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network switches |
| Description | 26-PORT (24 POE+) 1G MANAGED SWITCH NA |
| Manufacturer | Luxul |
| MSRP | $1,556.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| ABC Code | B |
| ETA Date | 260709 |
| Height | 4.00 |
| Length | 21.00 |
| One Source Flag | NNY N |
| Serialized Flag | Y |
| SKU Created Date | 240826 |
| UPC | 655003923520 |
| Width | 12.00 |
| Dimensions & Weight | |
| Depth | 21.1 cm |
| Height | 4.4 cm |
| Weight | 3 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.1p, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Reset button, DHCP server, auto-sensing per device, DHCP switch, TFTP server, VLAN trunking, PoE, auto-uplink (auto MDI/MDI-X), PoE overcurrent protection |
| Jumbo Frame Support | 9216 bytes |
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (1 PoE+) + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | DHCP, HTTP, TFTP |
| Status Indicators | PoE, link/activity, port transmission speed, power |
| Subtype | Fast Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 A, Directive 1275/2008, Directive 2008/34/EC, EC 1275, EMC 2004/108/EC, ErP 2009/125/EC, IEC 60950-1, LVD 2006/95/EC, RoHS 2011/65/EU, WEEE 2002/96/EC, CAN ICES-3(B)/NMB3(B) |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
