Lantronix TN-SFP-OC3S8-Cxx Series
MSRP$649.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

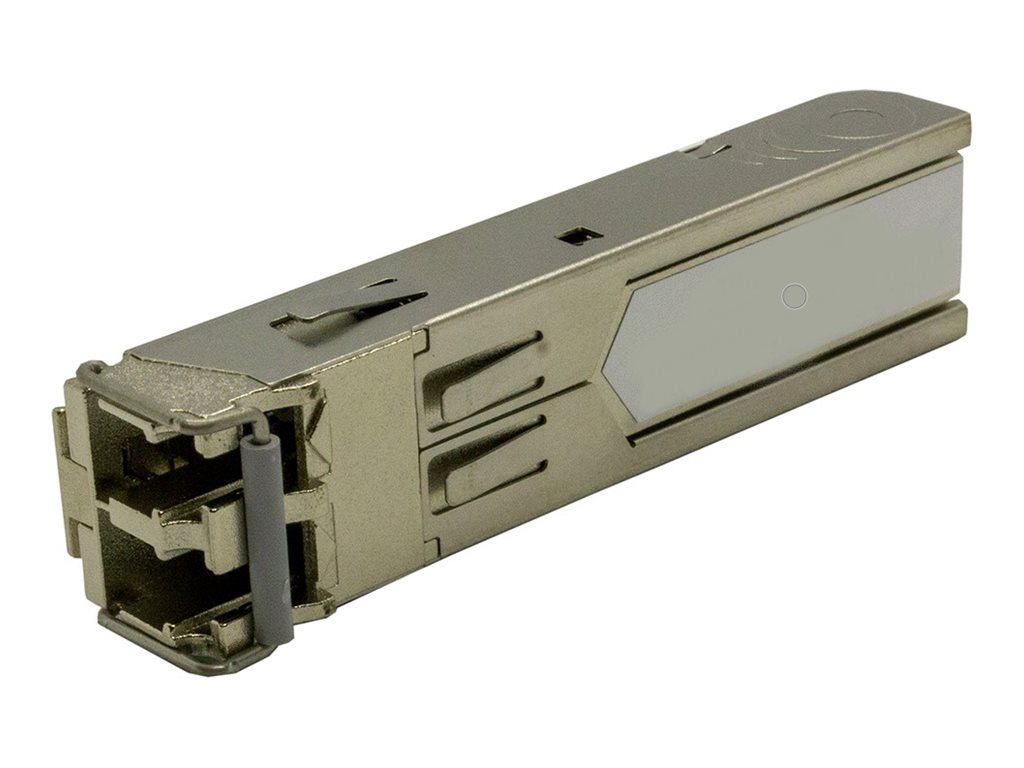

Lantronix TN-SFP-OC3S8-Cxx Series
- SFP (mini-GBIC) transceiver module
- 100Mb LAN
- 100Base-FX
- LC single-mode
- up to 80 km
- 1590 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $649.00 |
| Mfr Part #: | TN-SFP-OC3S8-C59 |
| SHI Part #: | 48070145 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix TN-SFP-OC3S8-Cxx Series - SFP (mini-GBIC) transceiver module - 100Mb LAN - 100Base-FX - LC single-mode - up to 80 km - 1590 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $649.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.5 cm |
| Dimensions & Weight / Height | 0.8 cm |
| Dimensions & Weight / Width | 1.3 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Fast Ethernet |
| Networking / Data Transfer Rate | 200 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP (mini-GBIC) transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 5.5 cm |
| Height | 0.8 cm |
| Width | 1.3 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100Base-FX - LC single-mode female x 2 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA, NDAA, ANSI X3.297-1997, SONET OC-3/SDH STM-1 (S-1.1), CFR 1040.10, CFR 1040.11, FDA 21, IEC 60825, REACH |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 100Base-FX |
| Compliant Standards | IEEE 802.3 2003 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 200 Mbps |
| Features | CWDM, 29 dB link budget, Digital Diagnostic Function (DMI), hot-pluggable |
| Max Transfer Distance | 80 km |
| Optical Wave Length | 1590 nm |
