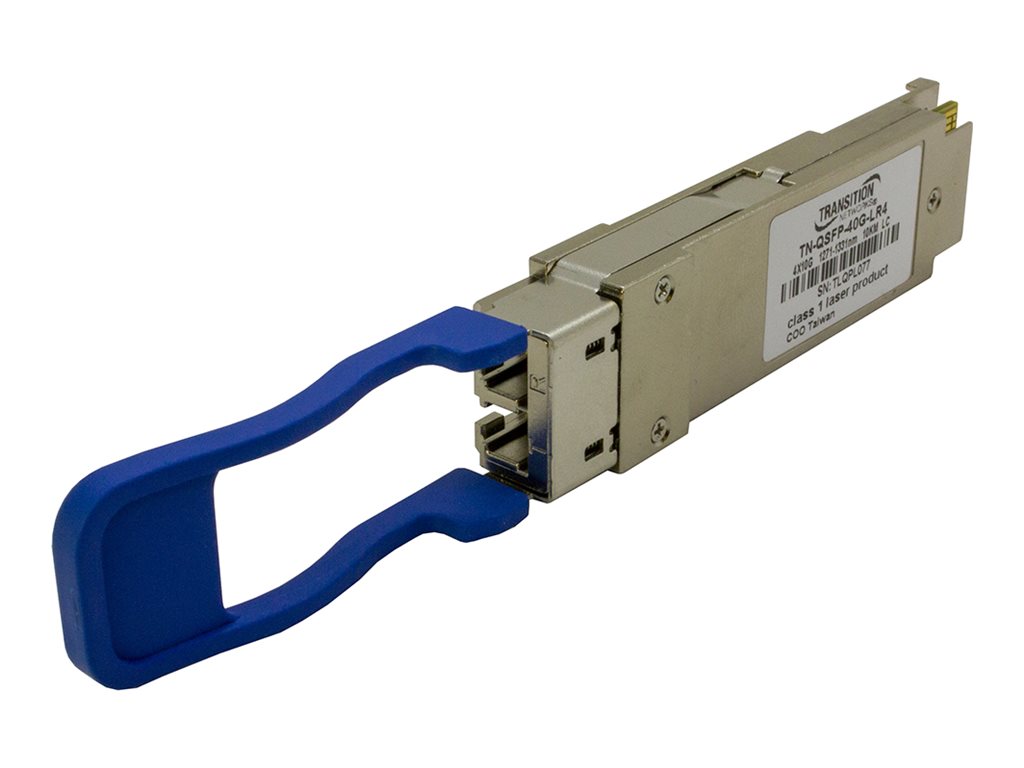

Lantronix TN-QSFP-40G Series
MSRP$1,537.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix TN-QSFP-40G Series
- QSFP+ transceiver module
- 40GbE
- 40GBase-LR4
- LC single-mode
- up to 10 km
- 1271 nm / 1291 nm / 1311 nm / 1331 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,537.00 |
| Mfr Part #: | TN-QSFP-40G-LR4 |
| SHI Part #: | 48070086 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix TN-QSFP-40G Series - QSFP+ transceiver module - 40GbE - 40GBase-LR4 - LC single-mode - up to 10 km - 1271 nm / 1291 nm / 1311 nm / 1331 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,537.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.2 cm |
| Dimensions & Weight / Height | 0.8 cm |
| Dimensions & Weight / Width | 1.8 cm |
| Header / Brand | Lantronix |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 40 Gigabit Ethernet |
| Networking / Data Transfer Rate | 44.4 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP+ transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 7.2 cm |
| Height | 0.8 cm |
| Width | 1.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-LR4 - LC single-mode female x 2 |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | MSA SFF-8436, RoHS, NDAA, IEC 60825-1, CDRH, FDA 21CFR1040.10 Class 1 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 40GBase-LR4 |
| Compliant Standards | IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 44.4 Gbps |
| Features | Digital Diagnostic Function (DMI), 7 dB link budget, Digital Diagnostics Monitoring (DDM), CWDM |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1271 nm / 1291 nm / 1311 nm / 1331 nm |
