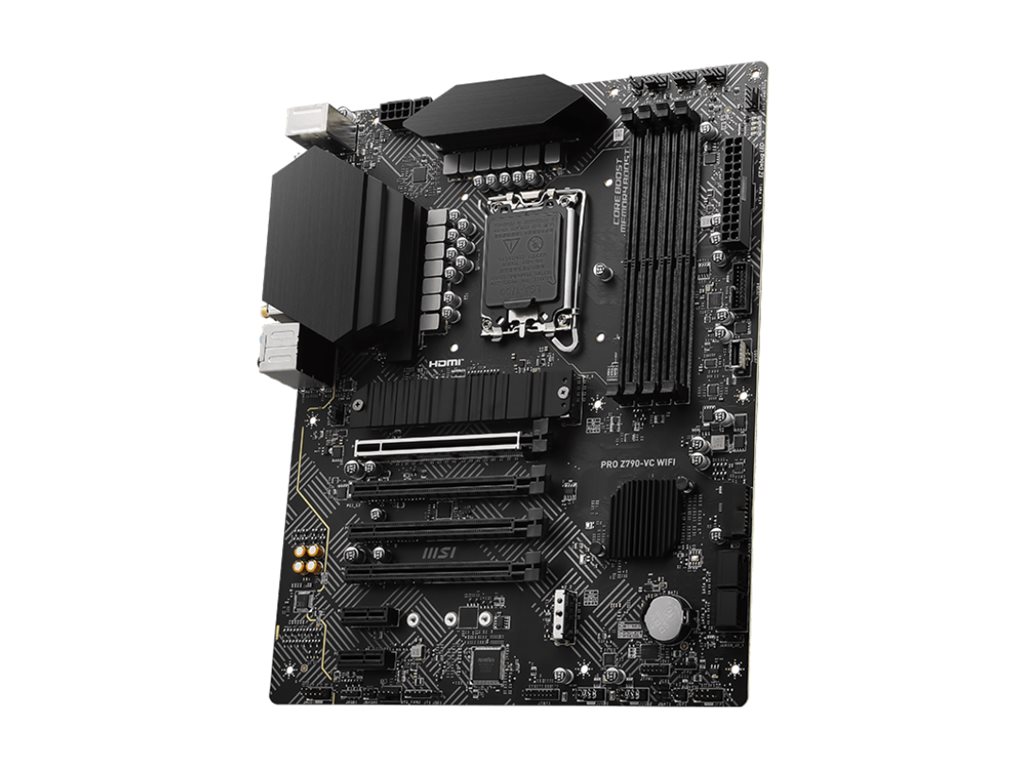

PRO Z790-VC WIFI INTEL MOTHERBOARD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
PRO Z790-VC WIFI INTEL MOTHERBOARD
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PROZ790VCWIFI |
| SHI Part #: | 47642945 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | PRO Z790-VC WIFI INTEL MOTHERBOARD |
| Manufacturer | MSI |
| MSRP | $179.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Height | 2.70 |
| Length | 13.80 |
| UPC | 0824142343203 |
| Width | 10.80 |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SMBIOS 3.7 support, ACPI 6.5 support, MSI ClickBIOS |
| BIOS Type | AMI |
| Hardware Features | 12+1+1 Phase Power Design, Surface Mount Technology (SMT), Water Pump Header, Extended Heatsink Design, M.2 Shield FROZR, MSI Core Boost, Debug LED, MSI Steel Armor, MSI Mystic Light, Digital PWM, MSI Memory Boost, 6 Layer PCB, 2oz Copper PCB, MSI Audio Boost, 80A Smart Power Stage, flash BIOS button, EZ Debug LED |
| General | |
| Chipset Type | Intel Z790 / Nuvoton NCT6687D-M |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.384 cm |
| Included Accessories | Wi-Fi antenna, EZ M.2 clip, IO shield |
| Software Included | AIDA64 Extreme - MSI Edition, Norton 360, MSI Center, drivers & utilities, Intel Extreme Tuning Utility, MSI CPU-Z, Adobe Creative Cloud (free trial), Adobe Acrobat Reader |
| Width | 30.48 cm |
| Supported RAM | |
| Bus Clock | 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2900 MHz (O.C.), 2800 MHz (O.C.), 2700 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
