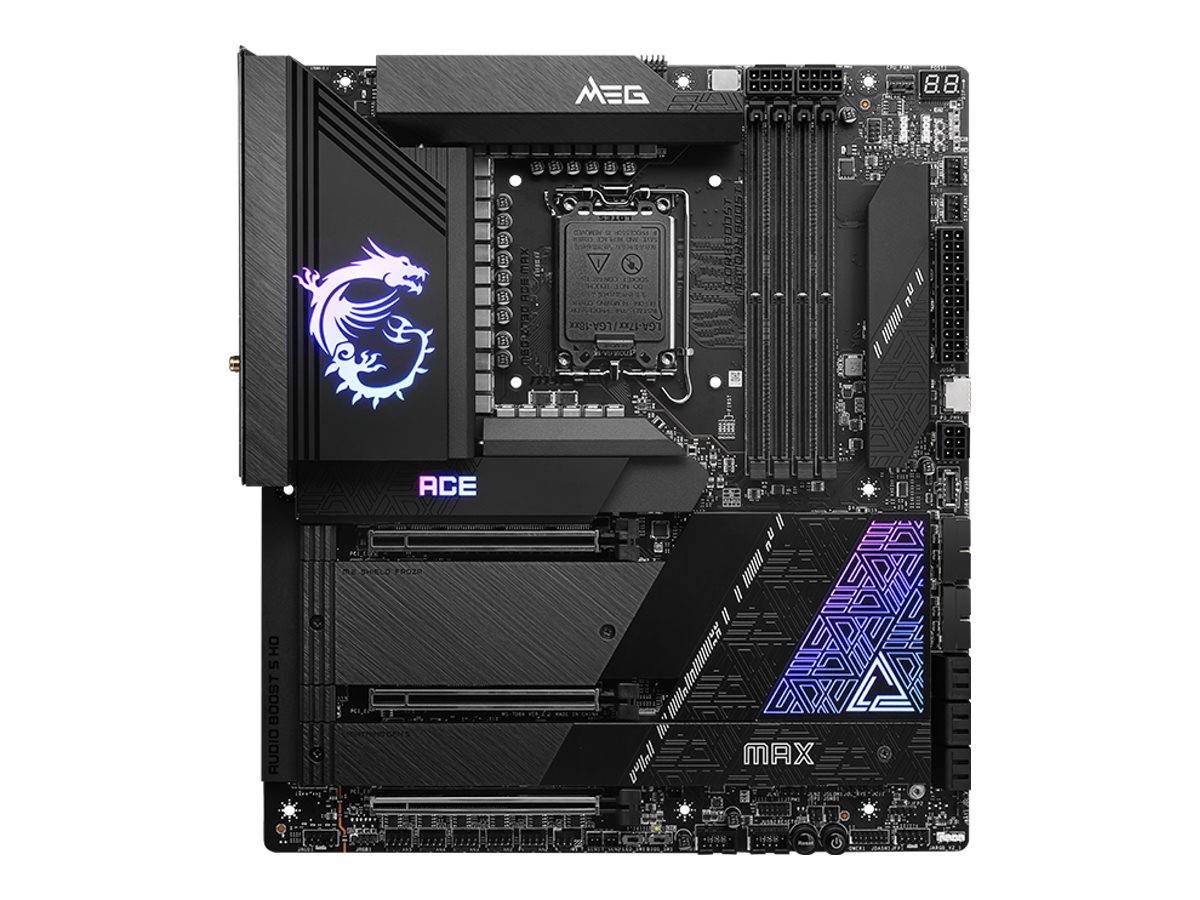

MSI MEG Z790 ACE MAX

$827.00
MSI MEG Z790 ACE MAX
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
MSI MEG Z790 ACE MAX
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
  • 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $827.00
Mfr Part #: Z790ACEMAX
SHI Part #: 47212639
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: MSI
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionMSI MEG Z790 ACE MAX - Motherboard - extended ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerMSI
MSRP$699.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth27.7 cm
Dimensions & Weight / Width30.5 cm
Header / BrandMSI
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC4082 / ESS ES9280AQ
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 2 x M.2 socket (2260/2280/22110 M.2 Key M slot)
  • 2 x M.2 socket (2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 2 x LAN (2.5Gigabit Ethernet)
  • 7 x USB 3.2 Gen 2
  • 1 x USB 3.2 Gen 2/DisplayPort
  • 2 x Thunderbolt 4
  • 2 x Mini DisplayPort input
  • 2 x antenna
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x SPDIF out
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 2 x USB-C 3.2 Gen 2x2 - header
  • 1 x audio - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PD power connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, Dual BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
BIOS TypeAMI
Hardware FeaturesMSI MPOWER thermal design, 8 Layer PCB, Clear CMOS Button, MSI Mystic Light, MSI Steel Armor, OC Engine, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, DIY Friendly Design, EZ LED control, Smart Button, MSI Audio Boost 5, 24+1+2 Phase Power Design, MSI Memory Boost, aluminum backplate, flash BIOS button, Direct Touch Cross Heat-pipe, aluminum cover, Frozr AI Cooling, M.2 EZ Latch, PCH heatsink, EZ Debug LED, aluminum heatsink design
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - extended ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Miscellaneous
Cables Included
  • 2 x Serial ATA cable
  • 1 x panel cable
  • 1 x ARGB/ fan extension Y-cable
  • 1 x Mini DisplayPort-DisplayPort cable
Depth27.7 cm
Included AccessoriesThermistor cable, USB drive, Wi-Fi antenna, JRGB extension cable (1 to 2), JARGB extension cable, cable sticker, M.2 screw package, 2 x EZ M.2 clips, 3 x M.2 plate screw
Software IncludedDrivers & utilities, Intel Extreme Tuning Utility, MSI CPU-Z, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI App Player, Norton 360
Width30.5 cm
Supported RAM
Bus Clock5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Max Size256 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
