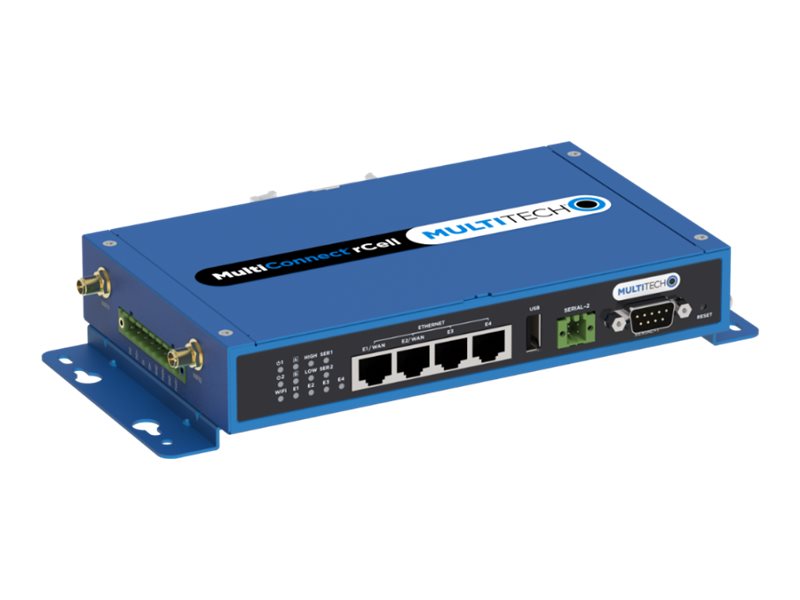

Multi-Tech MultiConnect rCell 500 Series MTR5-L12G2-B04.R2-US
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Multi-Tech MultiConnect rCell 500 Series MTR5-L12G2-B04.R2-US
- Wireless router
- WWAN RS-232, RS-485, 1GbE
- Wi-Fi 5
- Dual Band
- DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MTR5-L12G2-B04.R2-US |
| SHI Part #: | 47603172 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Multi-Tech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Multi-Tech MultiConnect rCell 500 Series MTR5-L12G2-B04.R2-US - Wireless router - WWAN RS-232, RS-485, 1GbE - Wi-Fi 5 - Dual Band - DIN rail mountable |
| Manufacturer | Multi-Tech |
| MSRP | $499.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.7 cm |
| Dimensions & Weight / Height | 3.1 cm |
| Dimensions & Weight / Weight | 730 g |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Multi-Tech |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Blue |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Communications | |
| Cellular Protocol | LTE |
| Max Transfer Rate | 600 Mbps |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 18.7 cm |
| Height | 3.1 cm |
| Weight | 730 g |
| Width | 11 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Mini-SIM |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, FCC Part 15, FCC Part 96 CBRS |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-485, Wi-Fi, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, Gigabit Ethernet |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | WEP, WPA-PSK, WPA2, WPA2-PSK, WPA |
| Features | PPP, 2x2 MIMO technology, LED status indicators, auto-uplink (auto MDI/MDI-X), metal housing, wall mountable, VPN support, QoS, firewall protection, IPSec passthrough, PPTP passthrough, L2TP passthrough, GRE tunneling, OpenVPN pass-through, L2TP client, WISP mode, PPTP client, port-based VLAN, tag-based VLANs, WDS bridge, IPv4 support, IPv6 support, NAT support, Loopback, static routing, dynamic routing, DHCP server |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, PPPoE, UDP, TCP |
| Routing Protocol | RIP-1, RIP-2, OSPF, BGP, static IP routing |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Included Accessories | Power cable (US), 2 x cellular antennas, DIN-rail clip, mounting brackets |
| Localization | United States |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |
| Voltage Required | 9 - 48 V |
