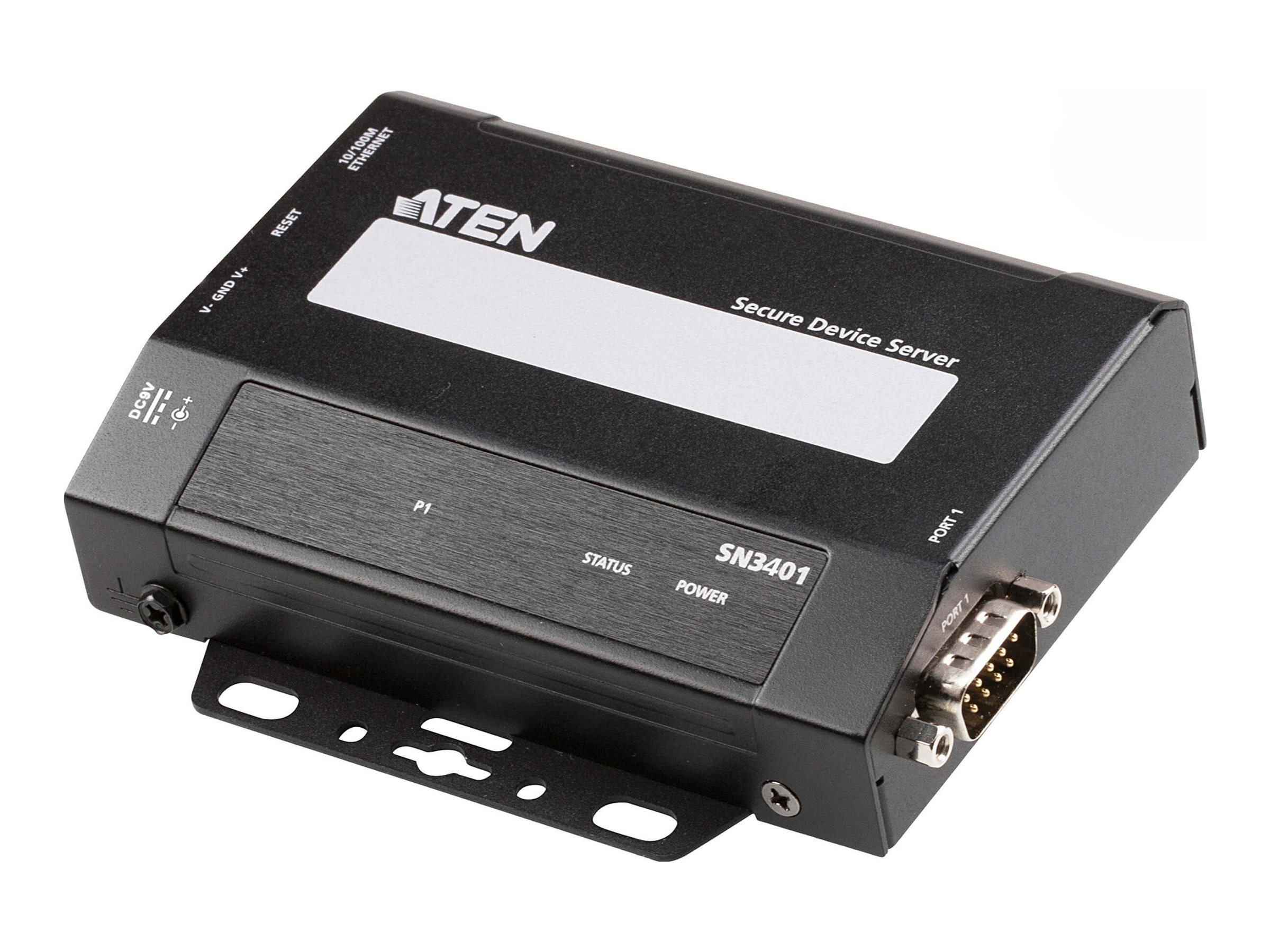

ATEN SN3401 - Device server
- 1 ports
- RS-232, RS-422, RS-485, 100Mb LAN
- desktop / wall / DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $166.00 |
| Mfr Part #: | SN3401 |
| SHI Part #: | 47380465 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | ATEN SN3401 - Device server - 1 ports - RS-232, RS-422, RS-485, 100Mb LAN - desktop / wall / DIN rail mountable |
| Manufacturer | ATEN |
| MSRP | $166.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.8 cm |
| Dimensions & Weight / Height | 2.6 cm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 11.7 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Desktop / wall / DIN rail mountable |
| Networking / Ports Qty | 1 |
| Networking / Type | Device server |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9.8 cm |
| Device Type | Device server |
| Height | 2.6 cm |
| Weight | 200 g |
| Width | 11.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 55032, EN 55035, CISPR 32, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, UL 60950-1, UL 62368-1, RoHS |
| Included Accessories | Terminal block connector, feet set, DIN-rail mounting kit |
| Networking | |
| Authentication Method | RADIUS |
| Capacity | Connections per serial port: up to 16 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet |
| Encryption Algorithm | TLS 1.2, 2048-bit RSA |
| Features | Reset button, flow control, 1.5 KV Magnetic Isolation, metal housing, Secure Real COM, Secure TCP Server / Client, surge protection, IP address filtering, web GUI management portal, SNMP agent, SNMP trap, event notification, firmware upgradable, backup/restore, NTP time synchronization |
| Form Factor | Desktop / wall / DIN rail mountable |
| Network / Transport Protocol | TCP, UDP |
| Ports Qty | 1 |
| Remote Management Protocol | Modbus TCP, Modbus RTU, SSH, Telnet, SNMP 1, SNMP 2c |
| Status Indicators | Power, status, port status, port transmission speed |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
