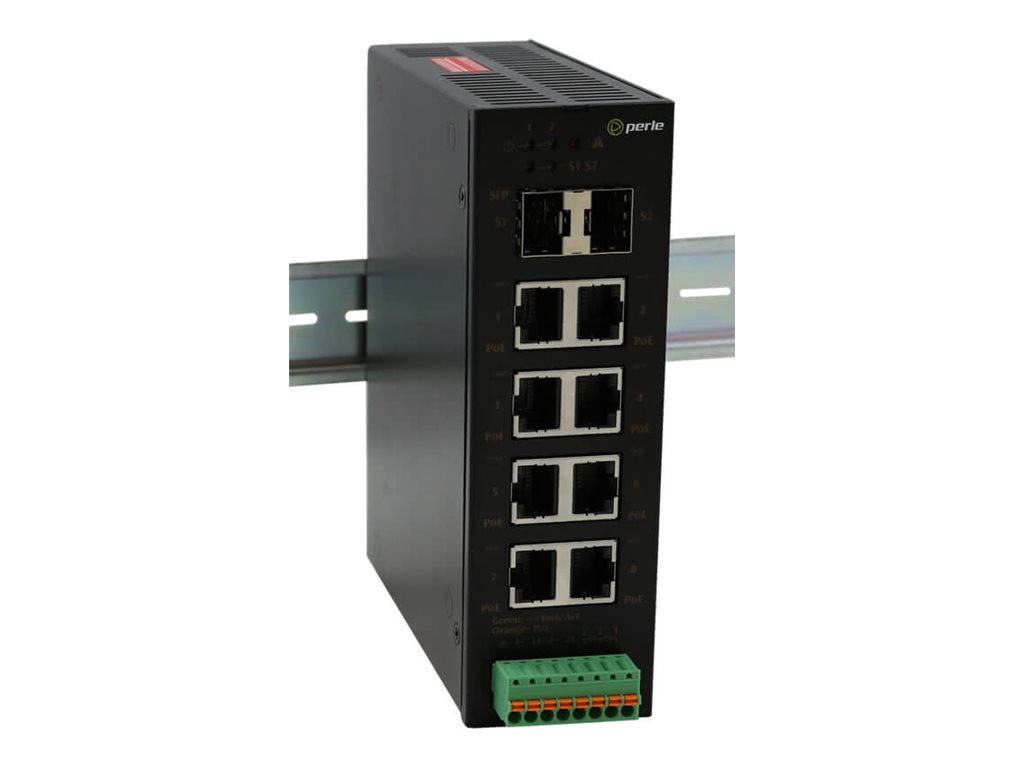

Perle IDS-110HP - Switch
MSRP$825.60
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle IDS-110HP - Switch
- industrial
- unmanaged
- 8 x 10/100/1000 (High PoE) + 2 x Gigabit SFP
- DIN rail mountable
- High PoE (270 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $825.60 |
| Mfr Part #: | 07017840 |
| SHI Part #: | 47200771 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Perle IDS-110HP - Switch - industrial - unmanaged - 8 x 10/100/1000 (High PoE) + 2 x Gigabit SFP - DIN rail mountable - High PoE (270 W) |
| Manufacturer | Perle Systems |
| MSRP | $825.60 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.5 cm |
| Dimensions & Weight / Height | 14.5 cm |
| Dimensions & Weight / Weight | 582 g |
| Dimensions & Weight / Width | 4.5 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 12.5 cm |
| Height | 14.5 cm |
| Weight | 582 g |
| Width | 4.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18.5 cm |
| Shipping Height | 6.5 cm |
| Shipping Weight | 763 g |
| Shipping Width | 23.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | Packet buffer memory: 1.5 Mbit |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3z |
| Device Type | Switch - 10 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Features | QoS, rugged, auto-negotiation, auto-uplink (auto MDI/MDI-X), 1500V isolation, over-current protection, reverse polarity protection, store and forward, half duplex mode, metal housing, 6KV Surge protection, PoE watchdog mode |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 4K entries |
| Performance | Packet filter/forwarding rate: 1.49 Mpps |
| PoE Budget | 270 W |
| Ports | 8 x 10/100/1000 (High PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE |
| Status Indicators | Power, fault, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IP30, EN 60175, UL 61010, FCC Part 15 A, VCCI Class A, EN 61000-6-4, ICES-003, EN 55032, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 50121-4, IEC 60068-2-6, IEC 60068-2-27, REACH, RoHS, WEEE, NEMA TS-2 |
| Included Accessories | Power terminal block |
| MTBF | 4,718,740 hours |
| Power | |
| Electric Current Required | 0.2 A |
| Power Consumption Operational | 9.72 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 46 - 57 V |
