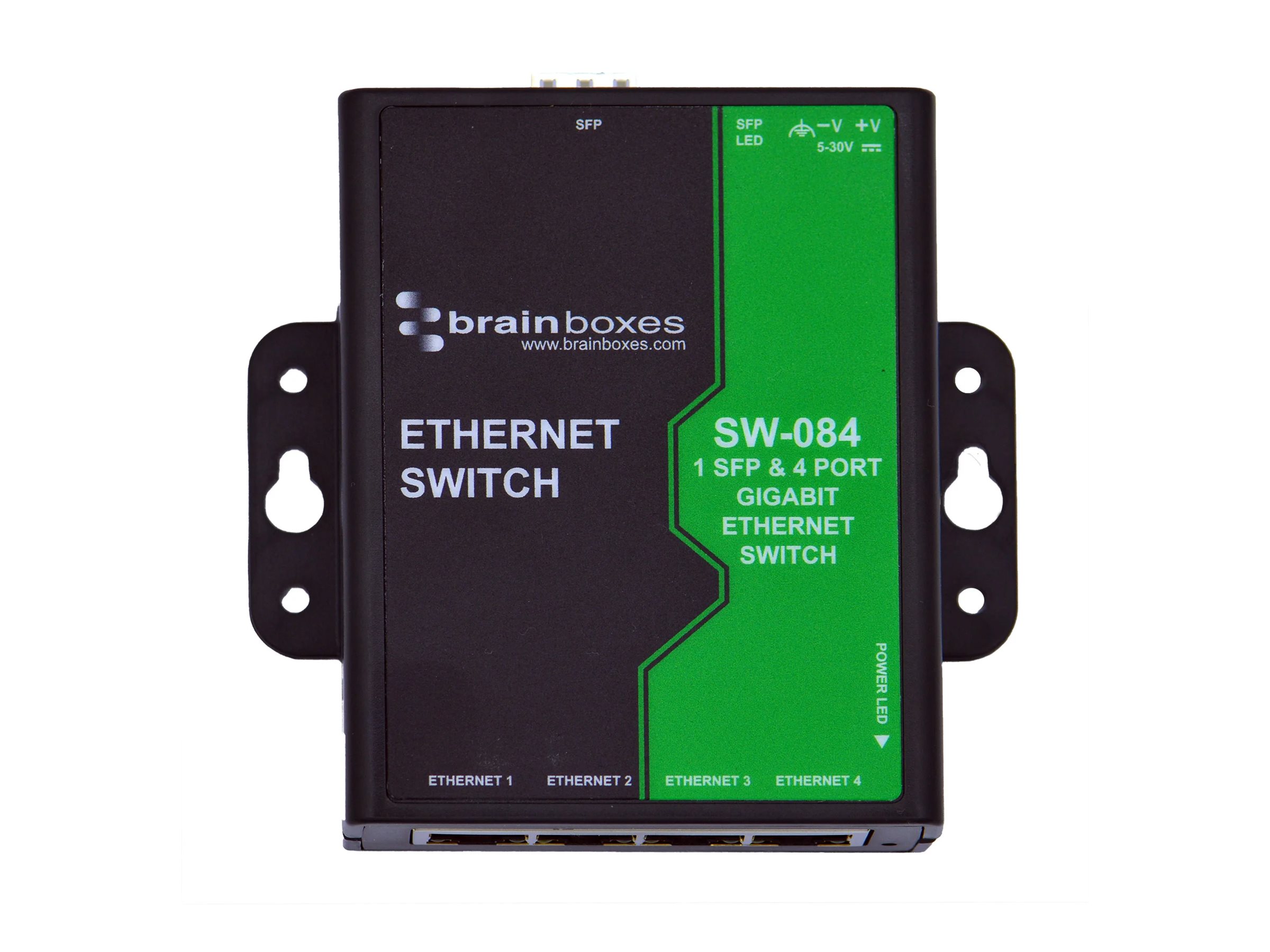

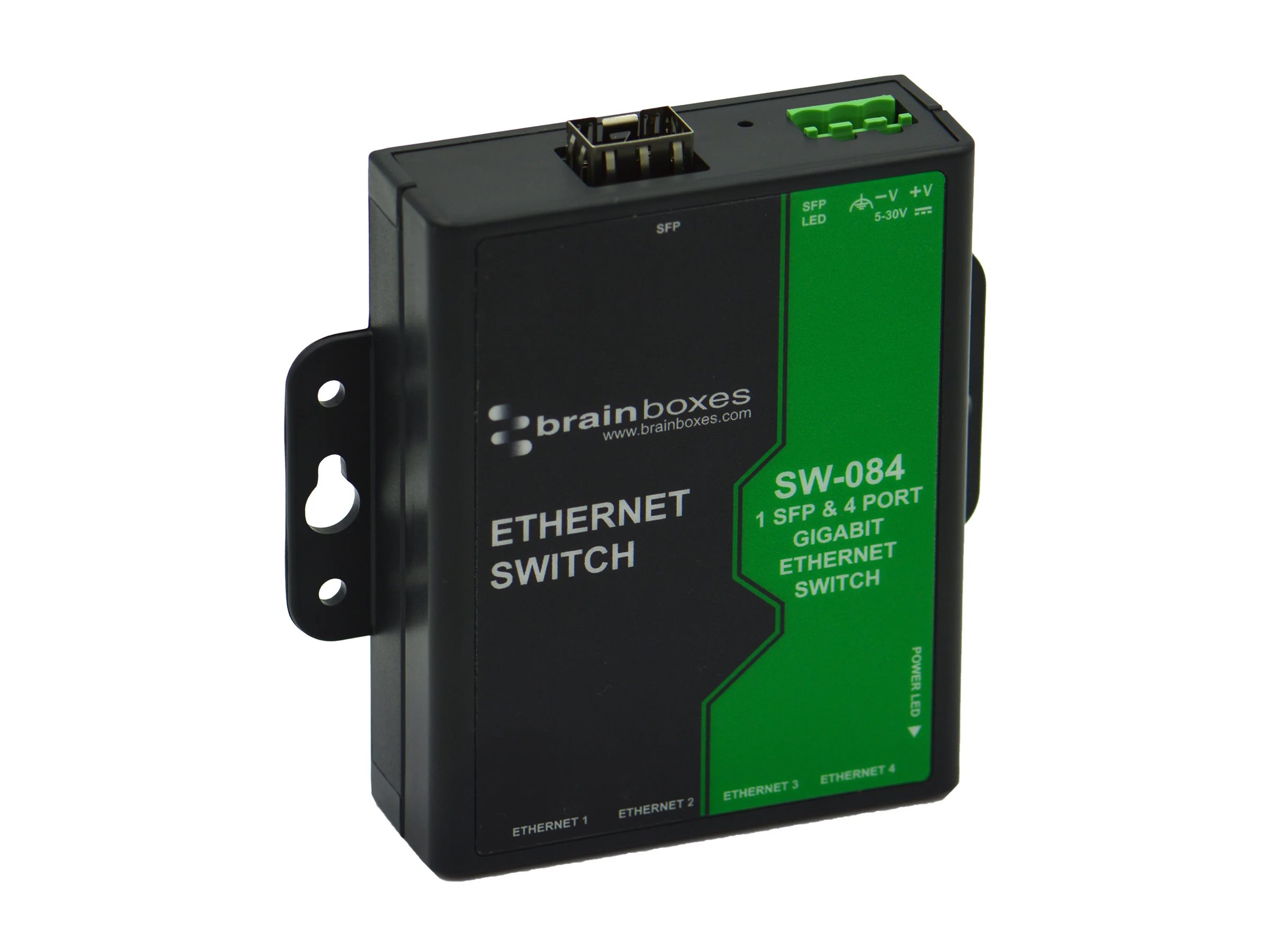

Brainboxes SW-084 - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Brainboxes SW-084 - Switch
- light industrial
- 4 x 10/100/1000 + 1 x 1000Base-X SFP
- wall-mountable, DIN rail mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SW-084 |
| SHI Part #: | 47141027 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Brainboxes |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Brainboxes SW-084 - Switch - light industrial - 4 x 10/100/1000 + 1 x 1000Base-X SFP - wall-mountable, DIN rail mountable - TAA Compliant |
| Manufacturer | Brainboxes |
| MSRP | $102.47 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.8 cm |
| Dimensions & Weight / Height | 10.6 cm |
| Dimensions & Weight / Weight | 276 g |
| Dimensions & Weight / Width | 10.2 cm |
| Header / Brand | Brainboxes |
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 4 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty with product registration |
| Dimensions & Weight | |
| Depth | 2.8 cm |
| Height | 10.6 cm |
| Weight | 276 g |
| Width | 10.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 4.9 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 353 g |
| Shipping Width | 13.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Switch - 4 ports |
| Enclosure Type | Wall-mountable, DIN rail mountable |
| Features | Reverse polarity protection, port isolation, LED status indicator, over-current protection, auto-uplink (auto MDI/MDI-X), polyamide enclosure, 1.5 KV Magnetic Isolation |
| Jumbo Frame Support | 9KB |
| Ports | 4 x 10/100/1000 + 1 x 1000Base-X SFP |
| Status Indicators | Power, SFP, speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime with product registration |
| Miscellaneous | |
| Compliant Standards | AEO, MET, UKCA, IP30, WEEE, RoHS, UL 62368-1, CSA C22.2, UKAS, ISO 9001, ISO 14001, CTPAT |
| TAA Compliant | Yes |
| Power | |
| Power Redundancy | Yes |
| Voltage Required | DC 5 - 30 V |
