Approved Networks - QSFP+ transceiver module (equivalent to: NetApp X65402)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

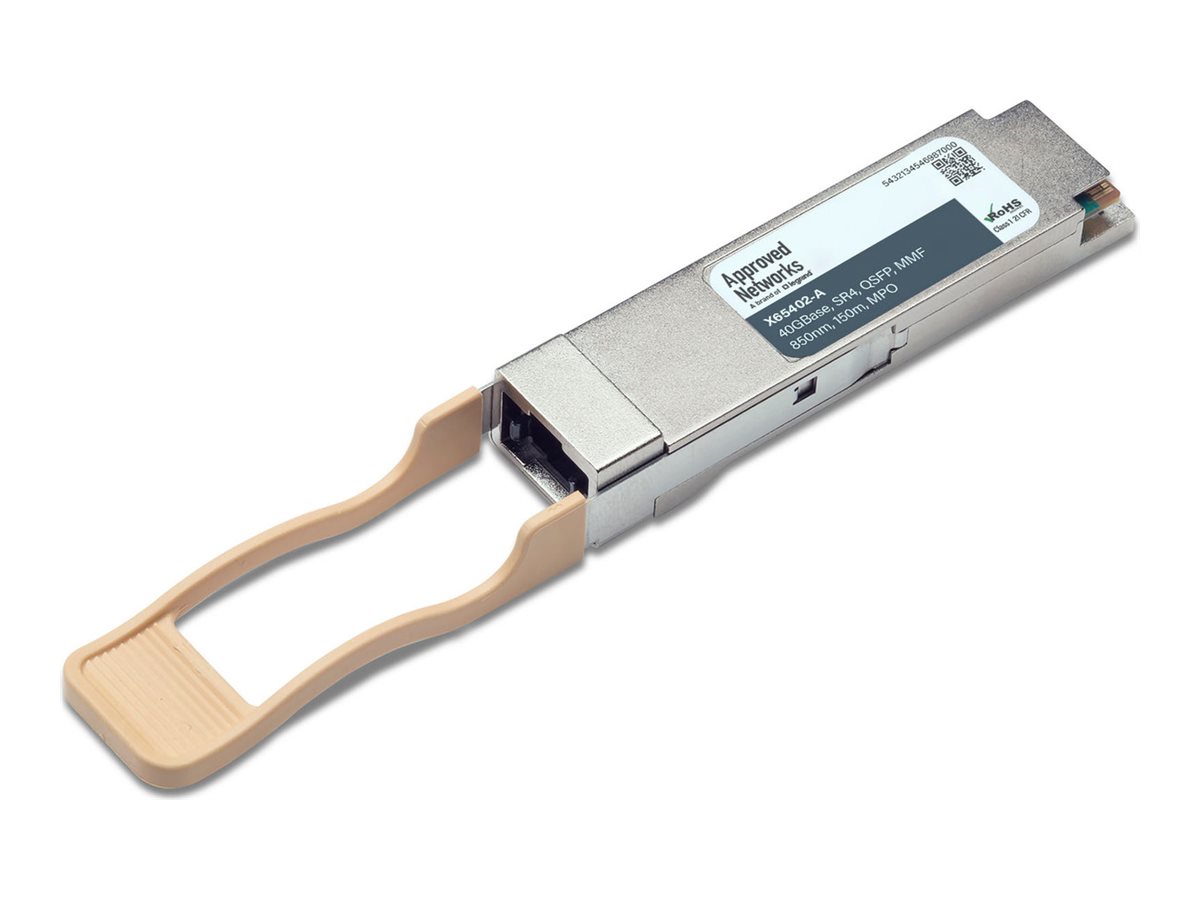

Approved Networks - QSFP+ transceiver module (equivalent to: NetApp X65402)
- 40GbE
- 40GBASE-SR4
- MTP/MPO-12 multi-mode
- up to 150 m
- 850 nm
| Additional Details | |
|---|---|
| Mfr Part #: | X65402-A |
| SHI Part #: | 46977245 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | C2G |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Approved Networks - QSFP+ transceiver module (equivalent to: NetApp X65402) - 40GbE - 40GBASE-SR4 - MTP/MPO-12 multi-mode - up to 150 m - 850 nm |
| Manufacturer | C2G |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Approved Networks |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 40 Gigabit Ethernet |
| Networking / Data Transfer Rate | 42 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP+ transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBASE-SR4 - MTP/MPO-12 multi-mode female |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, OM4 |
| OEM Manufacturer Equivalent Part Number | NetApp X65402 |
| Networking | |
| Cabling Type | 40GBASE-SR4 |
| Compliant Standards | IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 42 Gbps |
| Features | InfiniBand QDR Link support, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), Vertical Cavity Surface Emitting Laser (VCSEL), 1.9 dB power budget, -5.4 dBm sensivity, transmit min -7.6 dBm / max 1 dBm |
| Max Transfer Distance | 150 m |
| Optical Wave Length | 850 nm |
