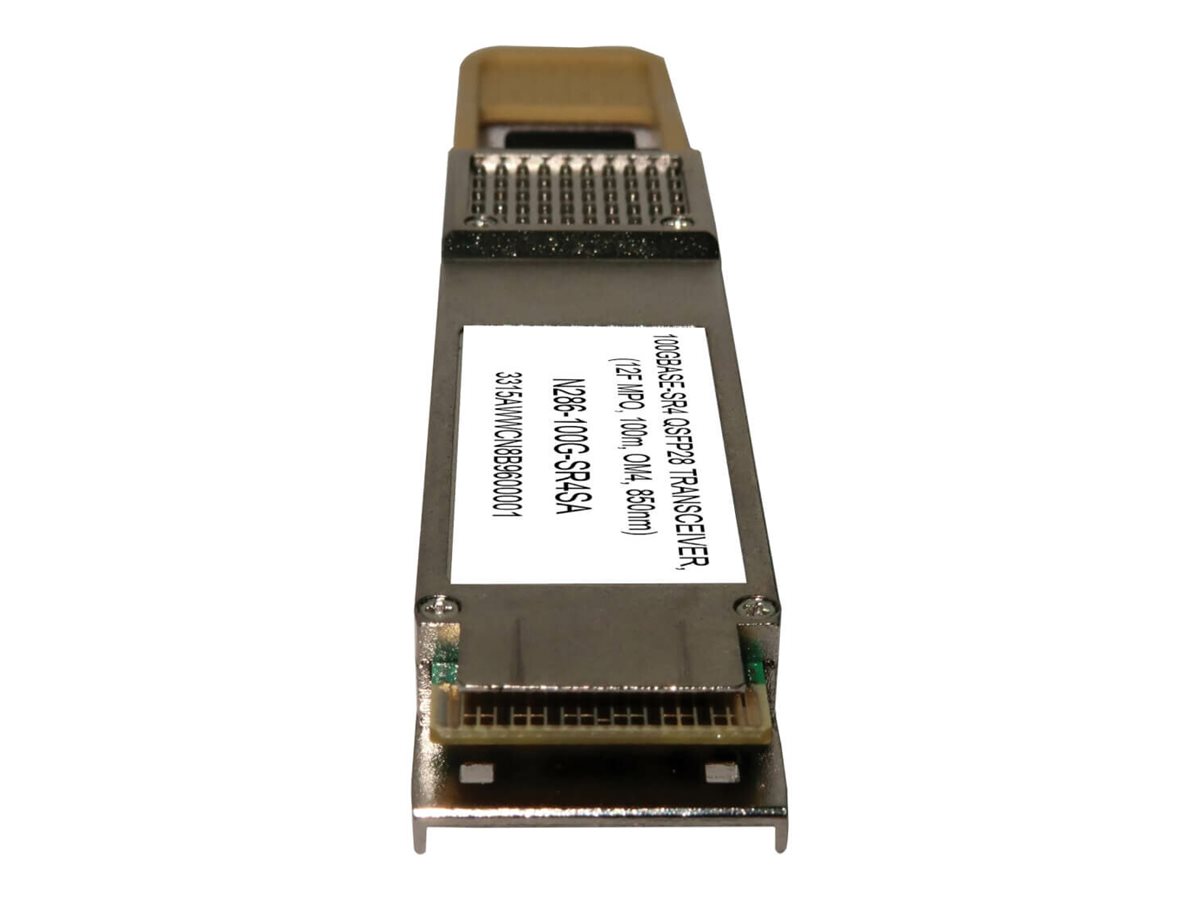

Eaton Tripp Lite Series Arista-Compatible QSFP-100G-SR4 QSFP28 Transceiver
MSRP$1,722.14
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Eaton Tripp Lite Series Arista-Compatible QSFP-100G-SR4 QSFP28 Transceiver
- 100GBase-SR4, MTP/MPO MMF, 100 Gbps, 850 nm, 100 m (328 ft.)
- QSFP28 transceiver module
- 100GbE
- 100GBase-SR4
- MTP/MPO-12 multi-mode
- up to 100 m
- 840-860 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,722.14 |
| Mfr Part #: | N286-100G-SR4SA |
| SHI Part #: | 46750414 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Eaton Tripp Lite Series Arista-Compatible QSFP-100G-SR4 QSFP28 Transceiver - 100GBase-SR4, MTP/MPO MMF, 100 Gbps, 850 nm, 100 m (328 ft.) - QSFP28 transceiver module - 100GbE - 100GBase-SR4 - MTP/MPO-12 multi-mode - up to 100 m - 840-860 nm |
| Manufacturer | Eaton |
| MSRP | $1,722.14 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Weight | 50 g |
| Header / Brand | Eaton |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 100 Gigabit Ethernet |
| Networking / Data Transfer Rate | 100 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP28 transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Weight | 50 g |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-SR4 - MTP/MPO-12 multi-mode male |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM4, MSA, EN 55032, FCC Part 15 C Class B, IEC/EN 63000, RoHS, UKCA |
| Networking | |
| Cabling Type | 100GBase-SR4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100GbE |
| Data Transfer Rate | 100 Gbps |
| Features | Digital Diagnostics Monitoring Interface (DDMI), hot swappable, EMI/RFI protection, Juniper compatible, metal housing |
| Max Transfer Distance | 100 m |
| Optical Wave Length | 840-860 nm |
